Zinc Die Cast EMT Offset Compression Connectors UL Listed EMT To Box

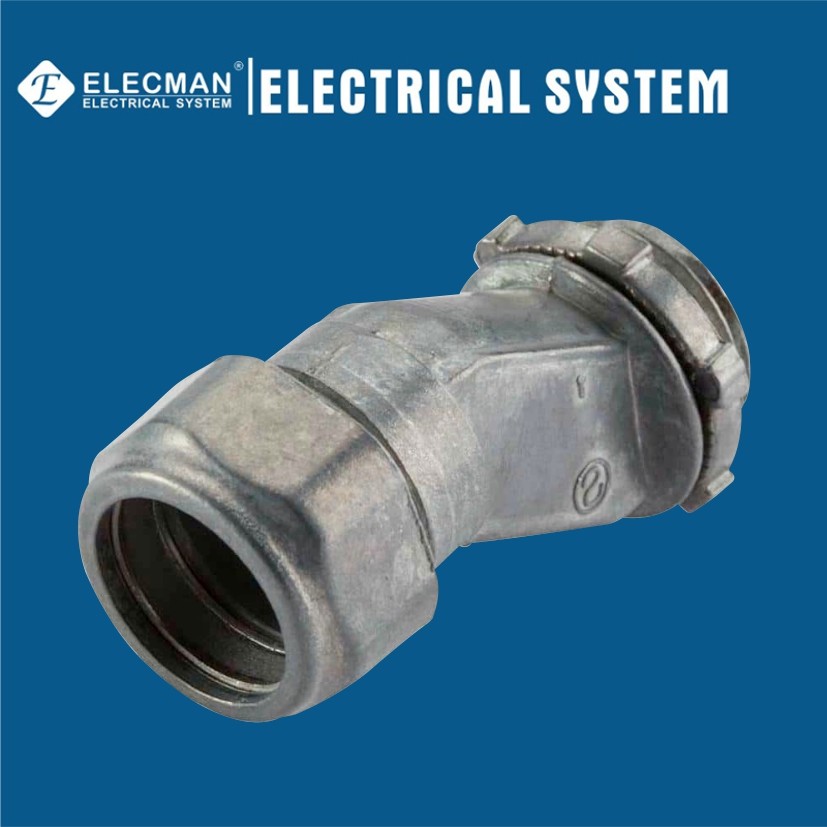

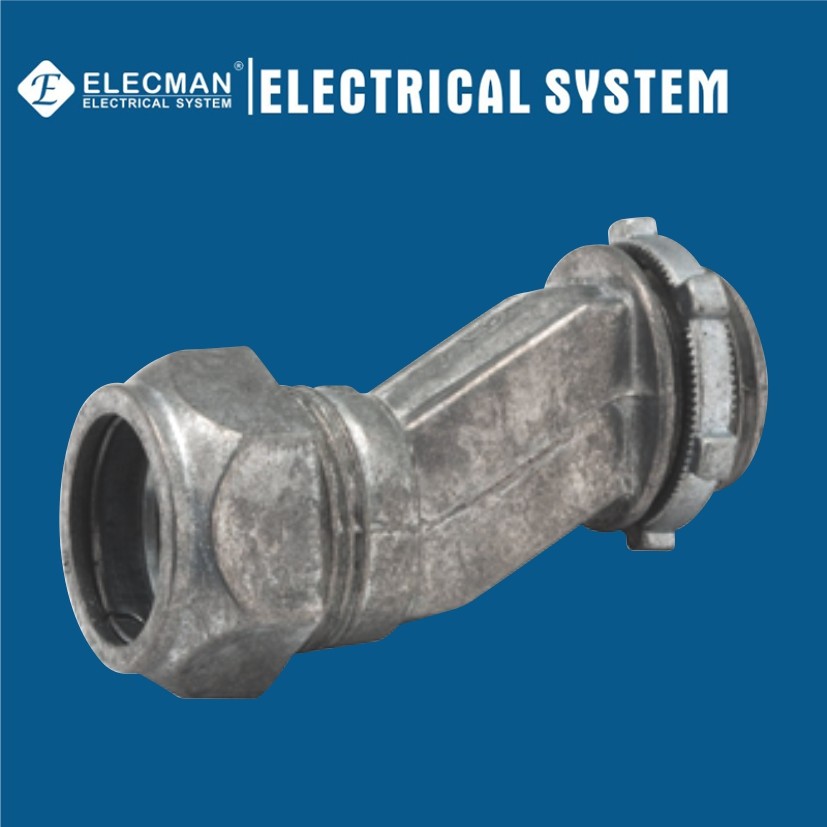

ELECMAN ® Zinc Die Cast EMT Offset Compression Connectors UL Listed EMT to Box

Applications

ELECMAN® Zinc die cast EMT offset compression connectors UL listed EMT to box are used to connect EMT conduit to a metal box or enclosure where offset is required. Compression type, assembled with zinc die cast locknut. Provides concrete-tight connections when taped. Suitable for applications above 600V.

Features

• Provide concrete-tight connections and raintight when taped.
• Steel-plated compression ring positively bonds conduit to the connector.
• Locknut is reversible and it is designed to cut through protective coatings on boxes and enclosures to assure ground continuity.
• Provides an offset for flexibility in connecting EMT conduit to metal enclosures.
• Offsets the axis of the raceway by 3/8 in.
• Corrosion resistant.
• Hex compression nut allows easy wrench installation.

​

Certifications and Compliances

ELECMAN® Zinc die cast EMT offset compression connectors EMT to box shall be produced to the following specification:

• UL Listed
• File No.: E513114

Specification Data

ELECMAN provides full size zinc die cast EMT offset compression connectors UL listed EMT to box 1/2" 3/4".

Quality Control

ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality zinc, every part of the connector are produced according to the high standard.

Packing Information

Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 3/4", ELECMAN provides inner box packing inside the outer box.
