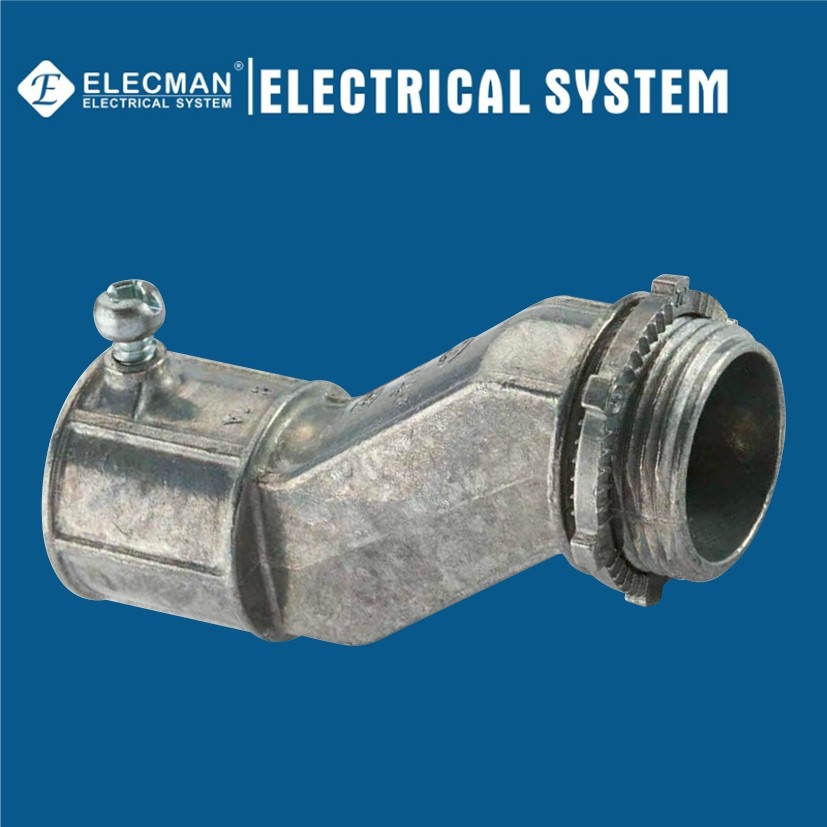

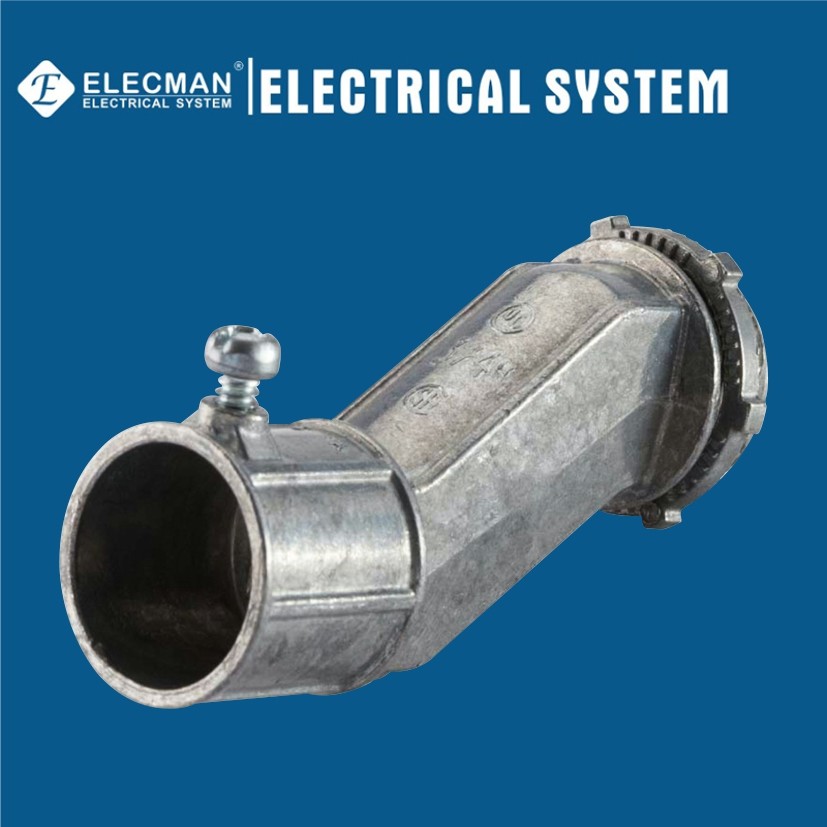

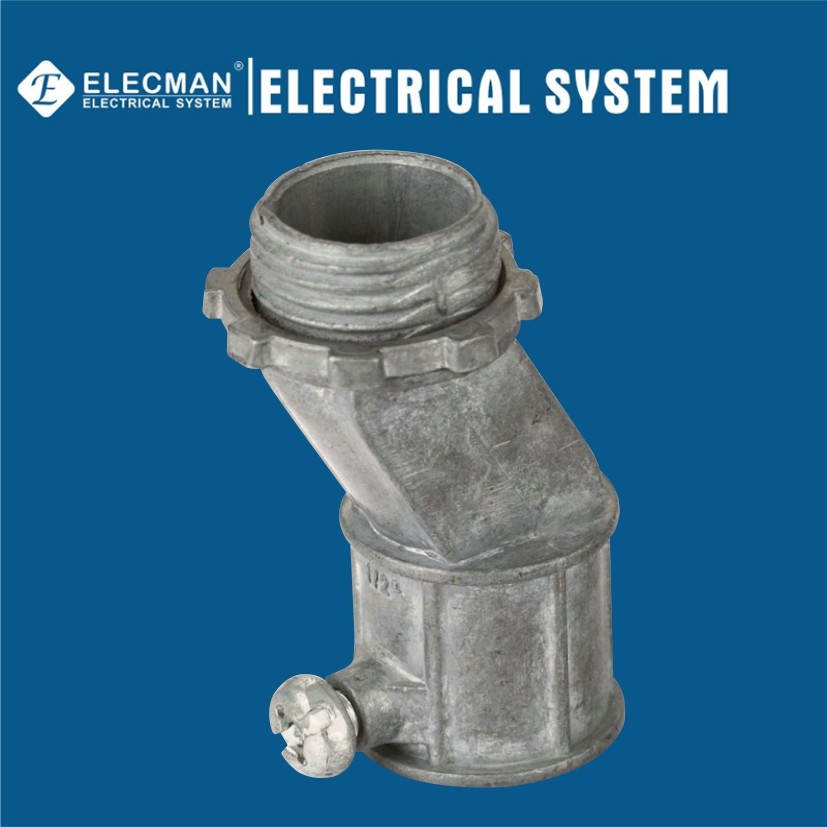

Zinc Die Cast EMT Offset Set Screw Conduit Connectors UL Listed

ELECMAN ® Zinc Die Cast EMT Offset Set Screw Conduit Connectors UL Listed

Applications

ELECMAN® Zinc die cast EMT offset set screw conduit connectors UL listed are used to make a slight adjustment in terminating the end of steel EMT conduit to an outlet box or enclosure in dry locations. These die-cast zinc connectors offer a 3/8 In. offset and are approved for concrete-tight applications when taped.

Features

• Provide concrete-tight connections and raintight when taped.
• Body and locknut die cast of high-strength zinc alloy for corrosion resistance
• Locknut is reversible and it is designed to cut through protective coatings on boxes and enclosures to assure ground continuity.
• Provides an offset for flexibility in connecting EMT conduit to metal enclosures.
• Be used indoors only.

Certifications and Compliances

ELECMAN® Zinc die cast EMT offset set screw conduit connectors shall be produced to the following specification:

• UL Listed
• File No.: E513114

Specification Data

ELECMAN provides full size zinc die cast EMT offset set screw conduit connectors UL listed from 1/2" to 1".

Quality Control

ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality zinc, the screws are made of steel, every part of the connector are produced according to the high standard.

Packing Information

Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box.
