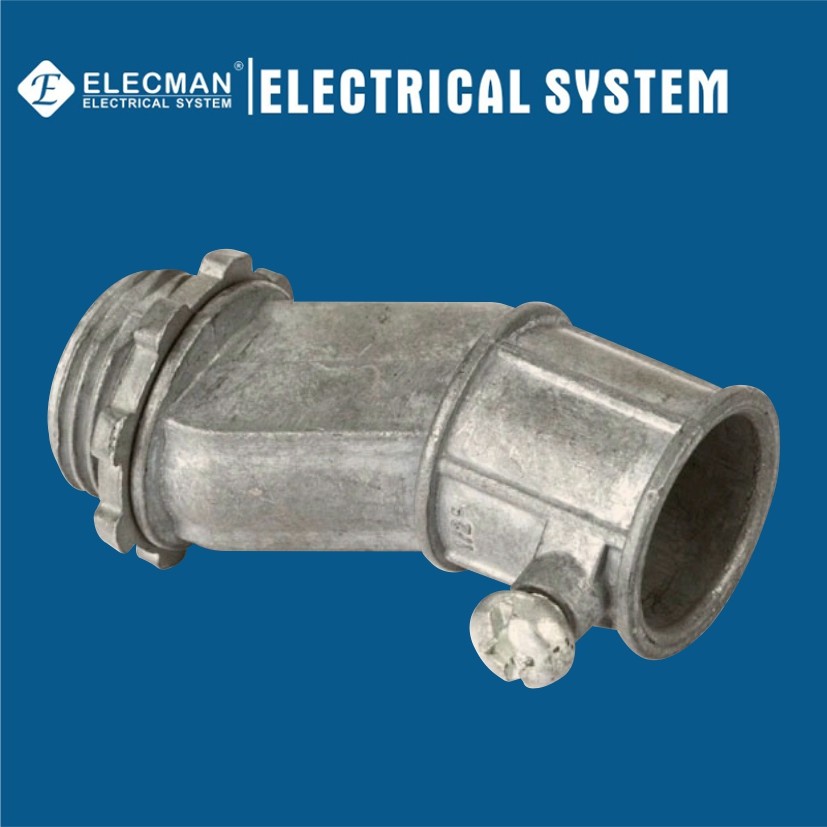

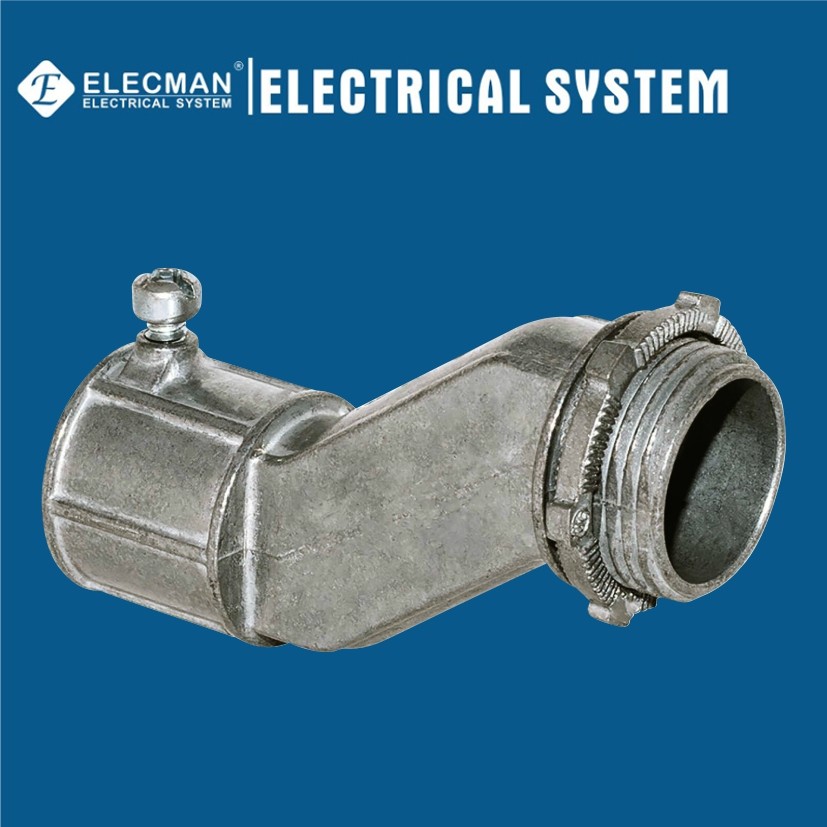

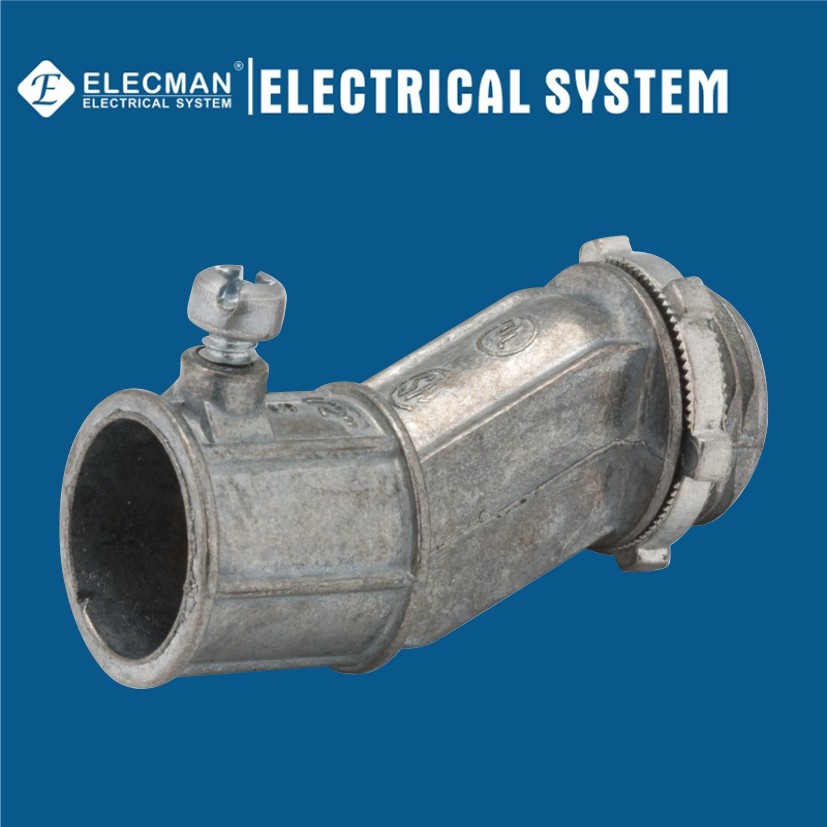

Zinc EMT Conduit To Box Offset Connectors Set Screw Type 1/2" To 1"

ELECMAN ® Zinc EMT Conduit To Box Offset Connectors Set Screw Type 1/2" To 1"

Applications

ELECMAN® Zinc EMT conduit to box offset connectors set screw type 1/2" to 1" are used in dry locations to bond EMT conduit to a steel box or enclosure. The EMT-to-box offset connector has a 3/8" offset. Offset EMT connector provides concrete tight protection when taped and is available in trade sizes 1/2" through 1".

Features

• Provide concrete-tight connections and raintight when taped.
• Body and locknut die cast of high-strength zinc alloy for corrosion resistance
• Locknut is reversible and it is designed to cut through protective coatings on boxes and enclosures to assure ground continuity.
• Provides an offset for flexibility in connecting EMT conduit to metal enclosures.
• Be used indoors only.

Certifications and Compliances

ELECMAN® Zinc EMT conduit to box offset connectors set screw type 1/2" to 1" shall be produced to the following specification:

• UL Listed
• File No.: E513114

Specification Data

ELECMAN provides full size Zinc EMT conduit to box offset connectors set screw type from 1/2" to 1".

Quality Control

ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality zinc, the screws are made of steel, every part of the connector are produced according to the high standard.

Packing Information

Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box.
