| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | RTOP |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Insulated, Compression Type | Size: | 1/2" To 4" |
| Connection: | EMT Conduit To EMT Conduit | Color: | Sliver |
| High Light: | 2 Inch Raintight EMT Couplings,Raintight EMT Couplings Galvanized Steel,1 Inch Raintight Compression Coupling |
||

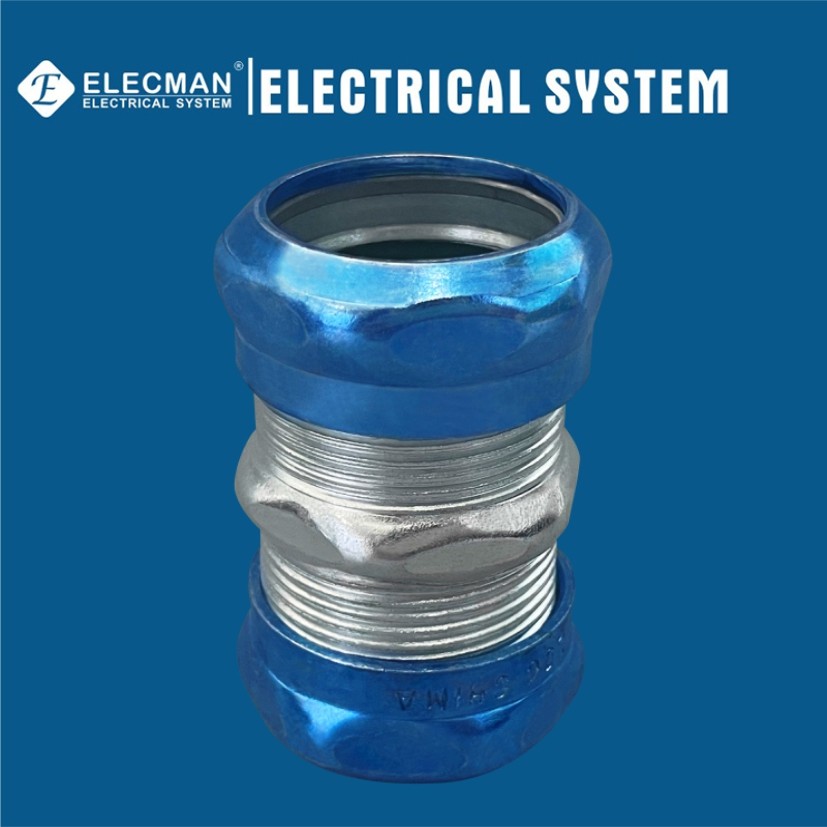

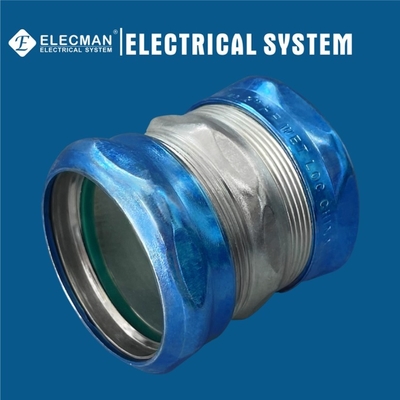

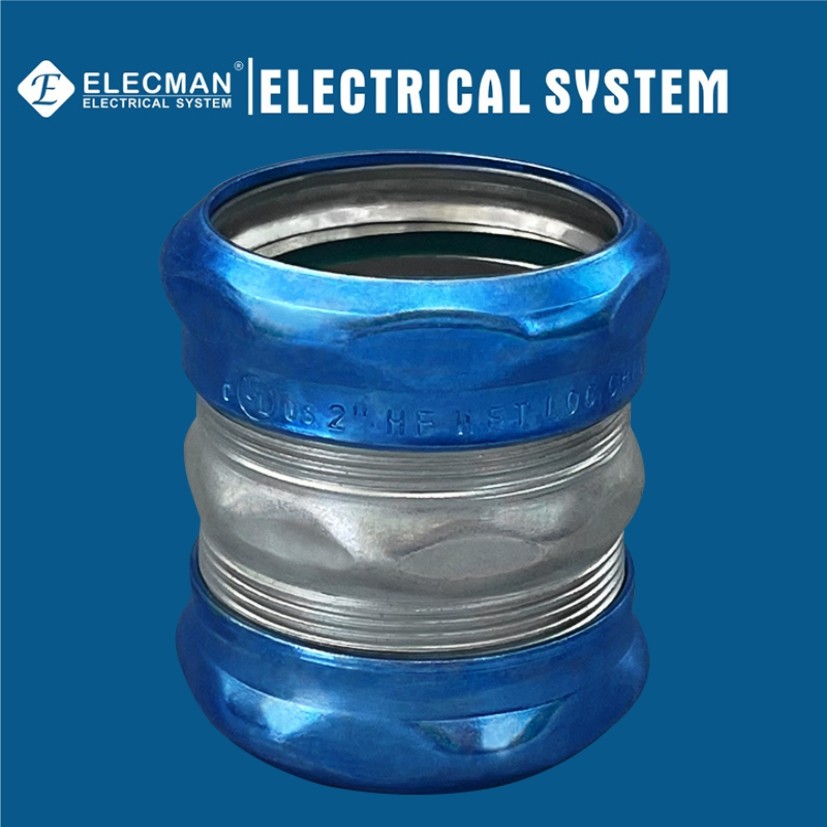

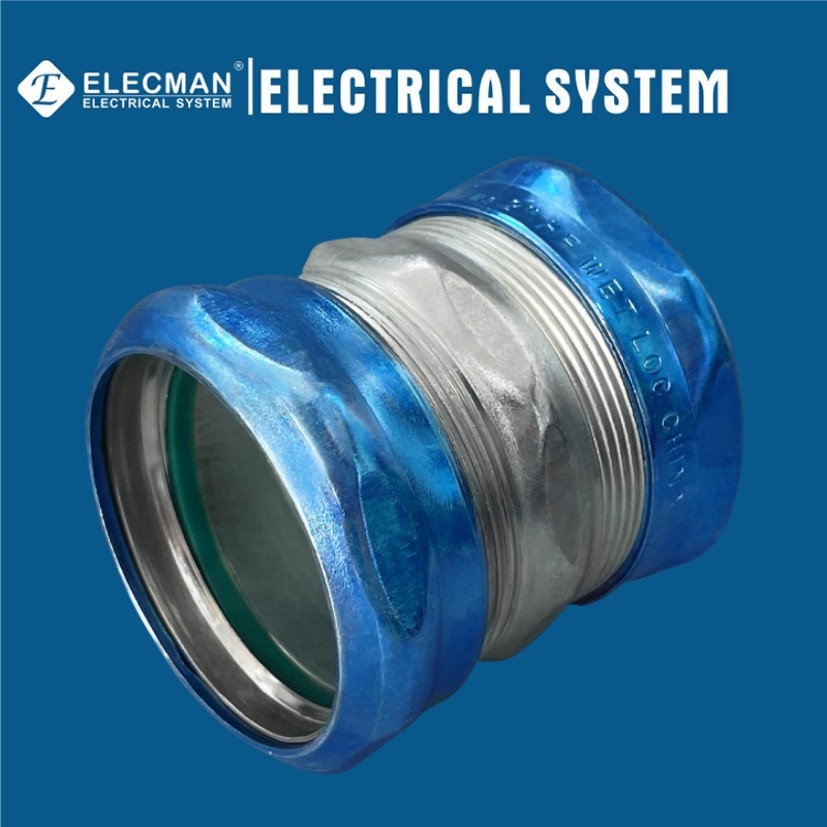

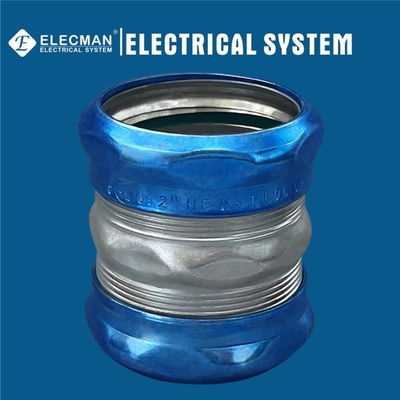

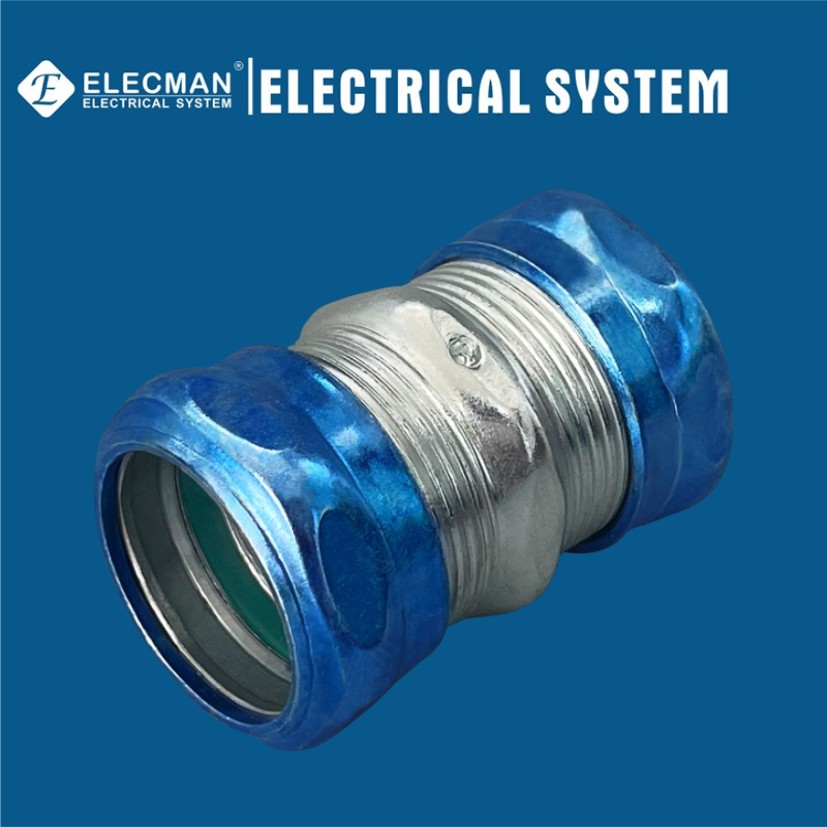

ELECMAN ® Raintight Galvanized Steel EMT Couplings Compression Type 2 Inch 1 Inch
Applications
ELECMAN® Raintight galvanized steel EMT coupling compression type is ideal for use in wet locations where raintight and concrete-tight fittings are needed. Features sealing ring to assure a 360 degree raintight seal. Steel construction for durability and long service life.
Features
Certifications and Compliances
ELECMAN® Raintight galvanized steel EMT coupling compression type shall be produced to the following specification:
Specification Data
ELECMAN provides full size raintight galvanized steel EMT coupling compression type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| RTOP050 | 1/2" | 1.625 | 1.125 | 50 | 500 | 35.62 |
| RTOP075 | 3/4" | 1.750 | 1.375 | 25 | 250 | 23.95 |
| RTOP100 | 1" | 1.875 | 1.688 | 20 | 200 | 27.38 |
| RTOP125 | 1-1/4" | 2.250 | 2.063 | 10 | 100 | 20.43 |
| RTOP150 | 1-1/2" | 2.250 | 2.250 | 10 | 100 | 24.40 |
| RTOP200 | 2" | 2.375 | 2.750 | 5 | 50 | 15.98 |
| RTOP250 | 2-1/2" | 3.875 | 3.625 | - | 8 | 6.69 |
| RTOP300 | 3" | 4.000 | 4.250 | - | 6 | 6.50 |
| RTOP350 | 3-1/2" | 4.063 | 4.688 | - | 4 | 5.29 |
| RTOP400 | 4" | 4.938 | 5.188 | - | 4 | 6.54 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality steel, every part of the coupling are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
