| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | RTOP |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel / Nylon Compression Ring | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Insulated, Compression Type | Size: | 1/2" - 4" |
| Connection: | EMT Conduit To EMT Conduit | Color: | Sliver |
| High Light: | Steel Raintight EMT Coupling,Raintight EMT Coupling Compression Type,Steel Raintight Compression Coupling |
||

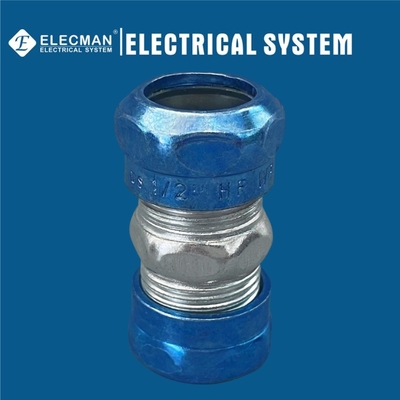

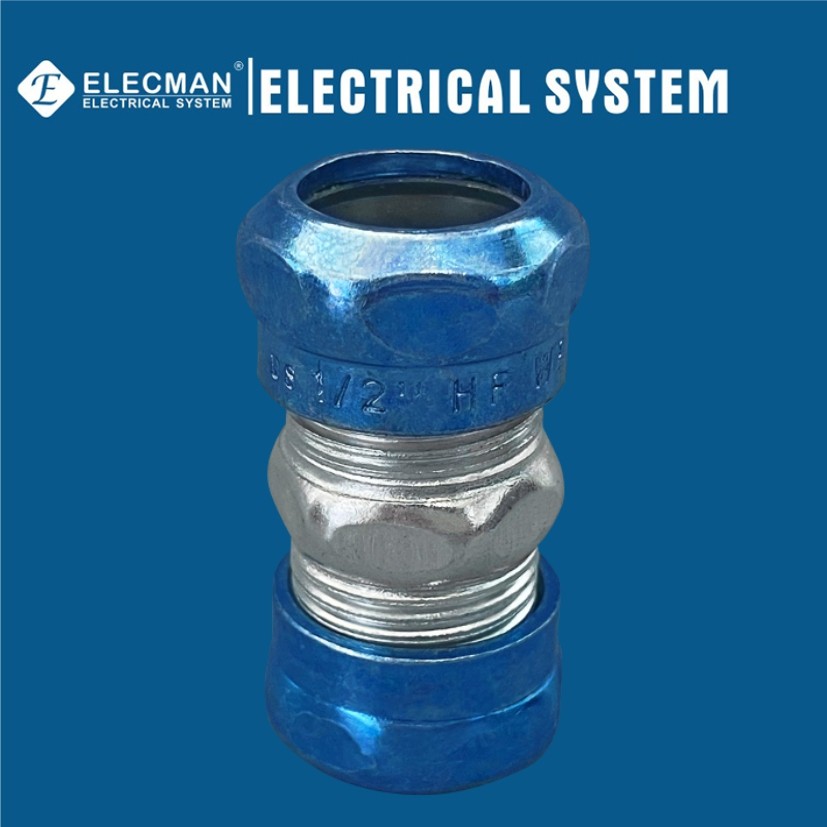

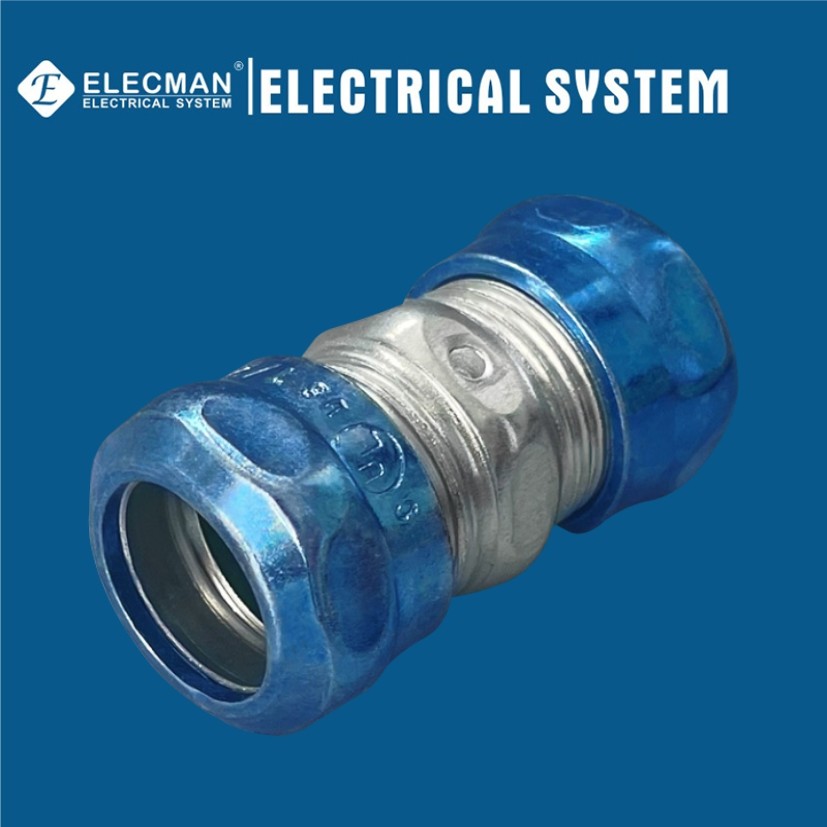

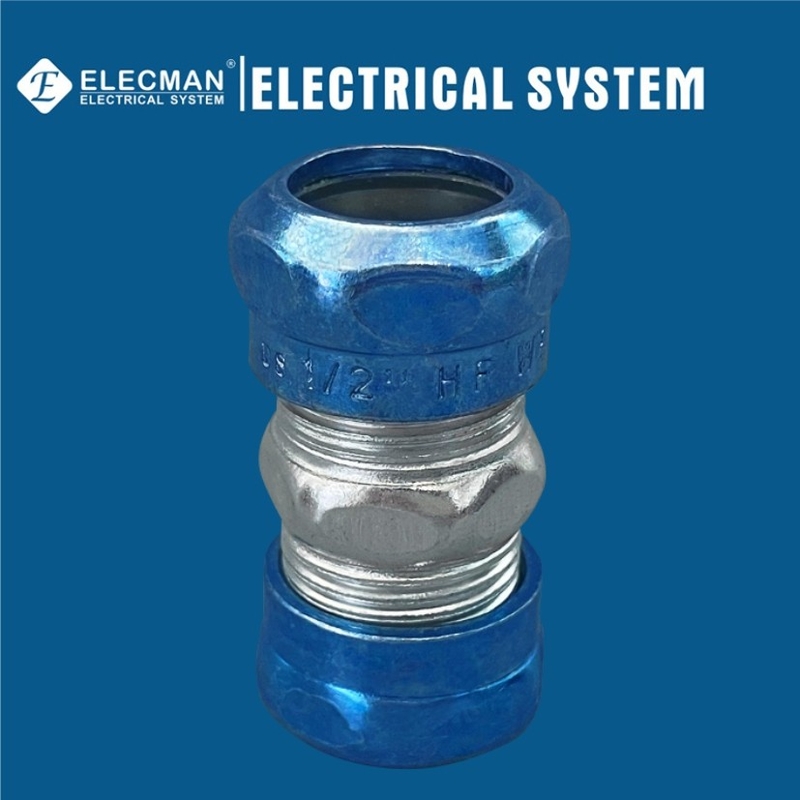

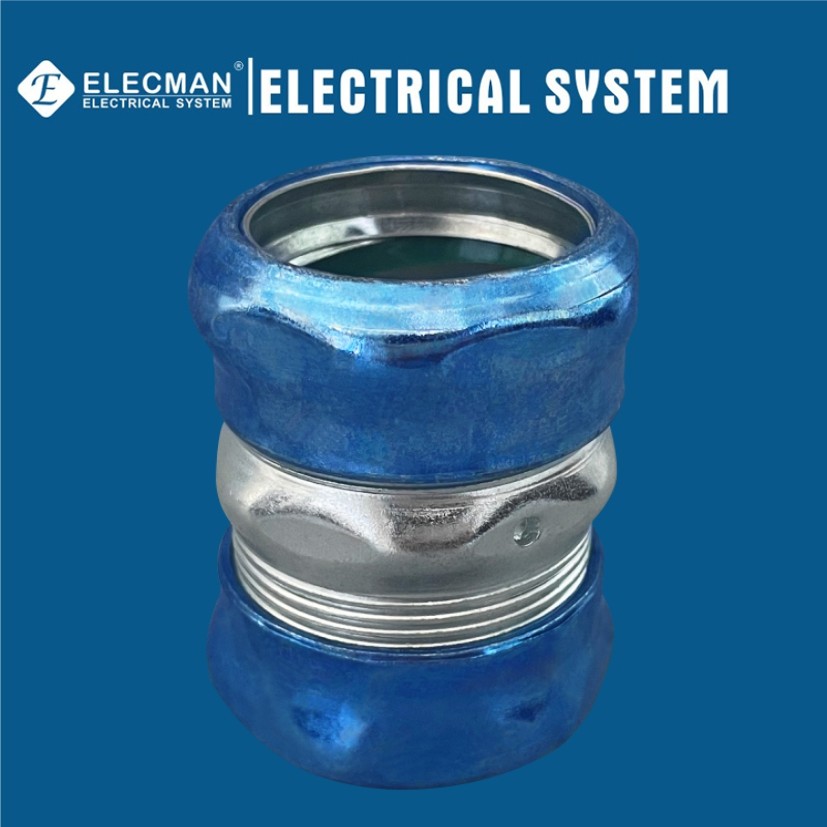

ELECMAN ® Steel Raintight EMT Coupling Compression Type UL Listed 1/2" - 4"
Applications
ELECMAN® Steel raintight EMT coupling compression type UL listed 1/2" - 4" is used in wet locations, couple two ends of conduit with compression couplings. Designed to comply with current Raintight test requirements (2008 NEC 358.42 and 314.15.). For easy inspection, "Wet Location" is marked on all fittings. Available in trade sizes of 1/2 in. through 4 in.
Features
Certifications and Compliances
ELECMAN® Steel raintight EMT coupling compression type 1/2" - 4" shall be produced to the following specification:
Specification Data
ELECMAN provides full size Steel raintight EMT coupling compression type UL listed from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| RTOP050 | 1/2" | 1.625 | 1.125 | 50 | 500 | 35.62 |
| RTOP075 | 3/4" | 1.750 | 1.375 | 25 | 250 | 23.95 |
| RTOP100 | 1" | 1.875 | 1.688 | 20 | 200 | 27.38 |
| RTOP125 | 1-1/4" | 2.250 | 2.063 | 10 | 100 | 20.43 |
| RTOP150 | 1-1/2" | 2.250 | 2.250 | 10 | 100 | 24.40 |
| RTOP200 | 2" | 2.375 | 2.750 | 5 | 50 | 15.98 |
| RTOP250 | 2-1/2" | 3.875 | 3.625 | - | 8 | 6.69 |
| RTOP300 | 3" | 4.000 | 4.250 | - | 6 | 6.50 |
| RTOP350 | 3-1/2" | 4.000 | 4.688 | - | 4 | 5.29 |
| RTOP400 | 4" | 4.938 | 5.188 | - | 4 | 6.45 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality steel, every part of the coupling are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
