| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | SCCP |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Compression Type | Size: | 1/2" - 4" |
| Connection: | EMT Conduit To EMT Conduit | Color: | Sliver |
| High Light: | EMT Conduit Couplings UL Listed,Galvanized Steel EMT Conduit Couplings,Galvanized Steel Emt Compression Coupling |
||

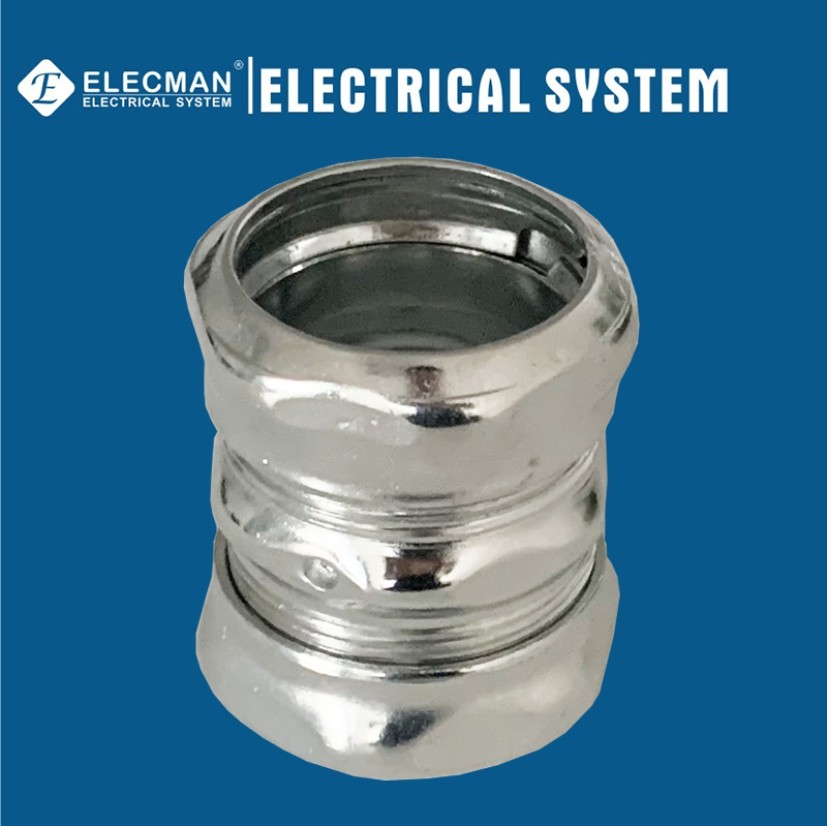

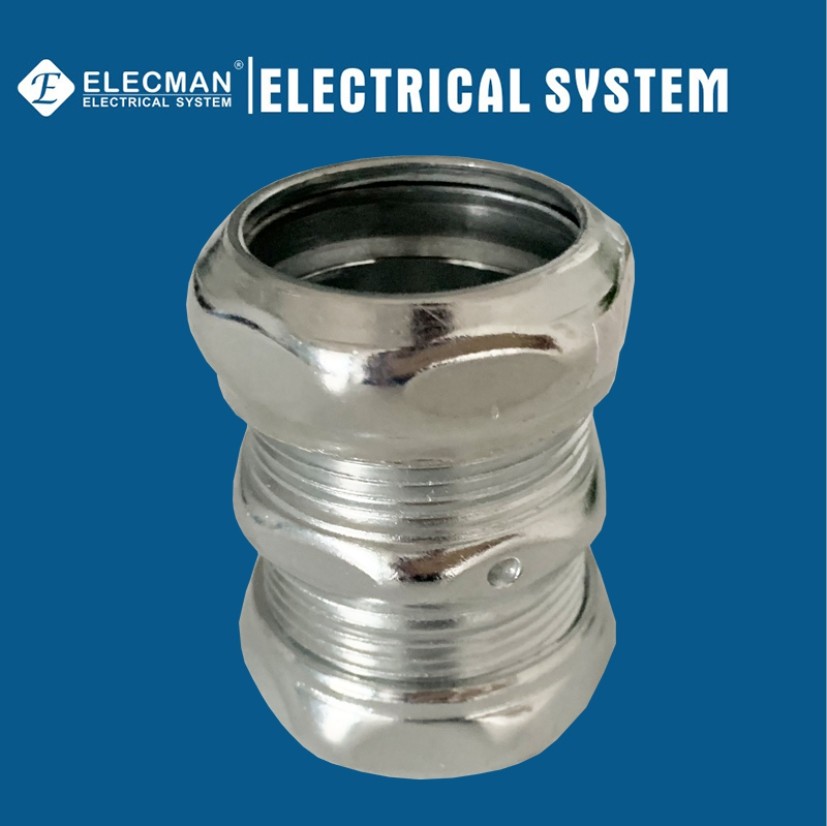

ELECMAN ® UL Listed Galvanized Steel EMT Conduit Couplings Compression Type
Applications
ELECMAN® UL listed galvanized steel EMT conduit couplings compression type are used to grip unthreaded EMT conduit all around its diameter for a rigid connection. They position onto the ends of two lengths of conduit and have a gland that tightens with a wrench to lock in place. Compression type design promotes easy installation; steel construction with zinc plating ensures strength and longevity. Available in sizes from 1/2" to 4"; UL listed.
Features
Certifications and Compliances
ELECMAN® Galvanized steel EMT conduit couplings compression type shall be produced to the following specification:
Specification Data
ELECMAN provides full size UL listed galvanized steel EMT conduit couplings compression type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| SCCP050 | 1/2" | 1.625 | 1.125 | 50 | 500 | 35.50 |
| SCCP075 | 3/4" | 1.750 | 1.375 | 25 | 250 | 22.20 |
| SCCP100 | 1" | 1.875 | 1.688 | 50 | 200 | 25.10 |
| SCCP125 | 1-1/4" | 2.250 | 2.063 | 25 | 100 | 20.50 |
| SCCP150 | 1-1/2" | 2.250 | 2.250 | 10 | 40 | 9.30 |
| SCCP200 | 2" | 2.375 | 2.750 | 5 | 20 | 6.00 |
| SCCP250 | 2-1/2" | 3.875 | 3.625 | - | 12 | 10.20 |
| SCCP300 | 3" | 4.000 | 4.250 | - | 12 | 13.05 |
| SCCP350 | 3-1/2" | 4.063 | 4.688 | - | 6 | 7.60 |
| SCCP400 | 4" | 4.938 | 5.188 | - | 6 | 9.34 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality steel, every part of the coupling are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
