| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | RTON |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel/Neoprene Rubber/Nylon Compression Ring | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Raintight, Compression Type | Size: | 1/2" - 4" |
| Connection: | EMT Conduit To Box | Color: | Sliver |
| High Light: | EMT Compression Connectors Raintight,Non Insulated Raintight EMT Connectors,Raintight EMT Connectors Compression Type |
||

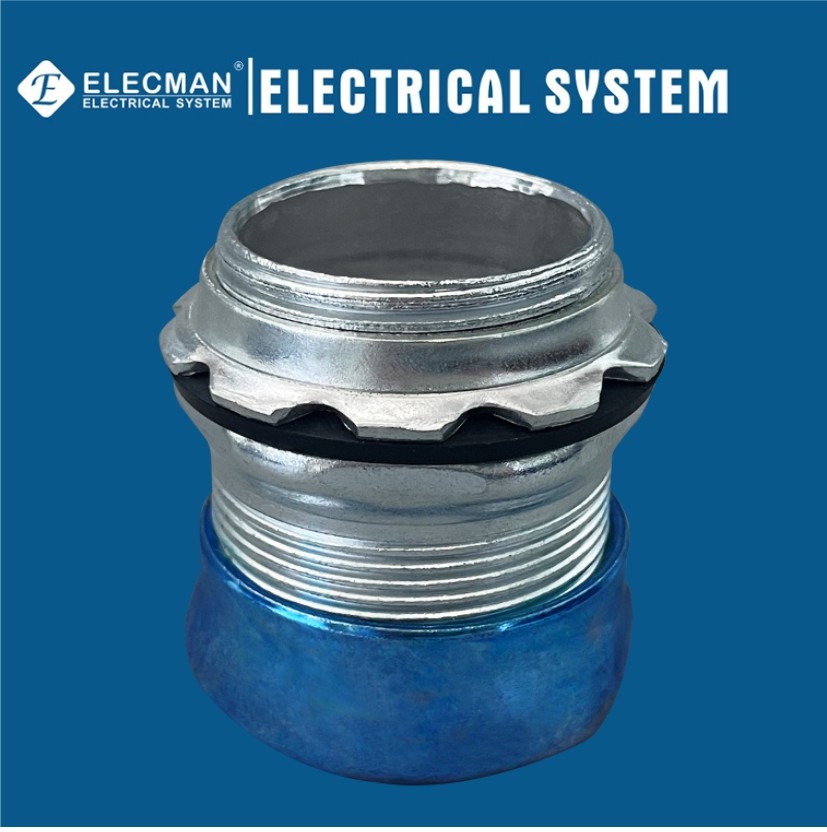

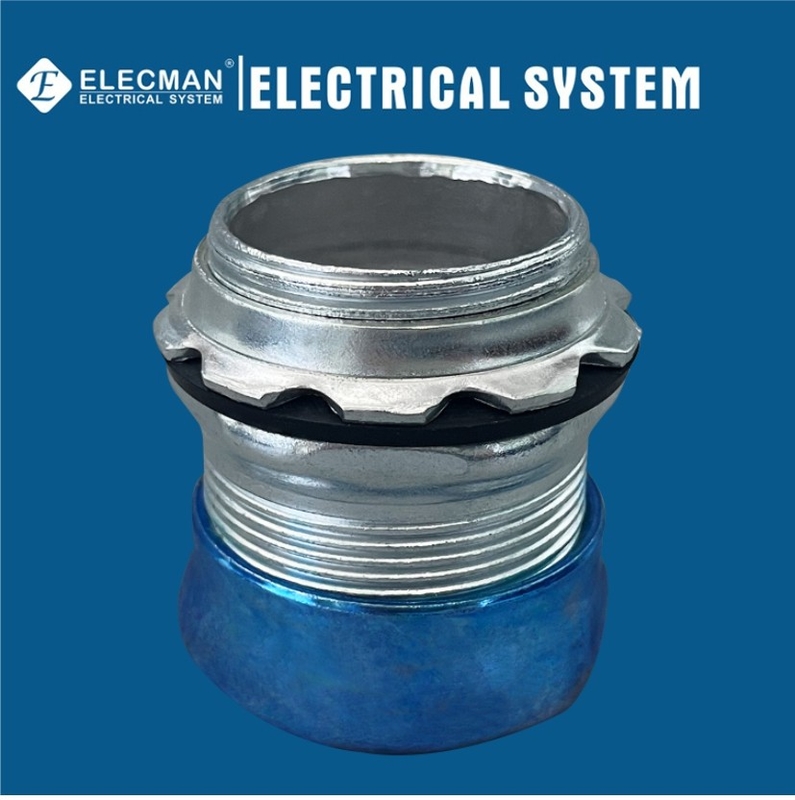

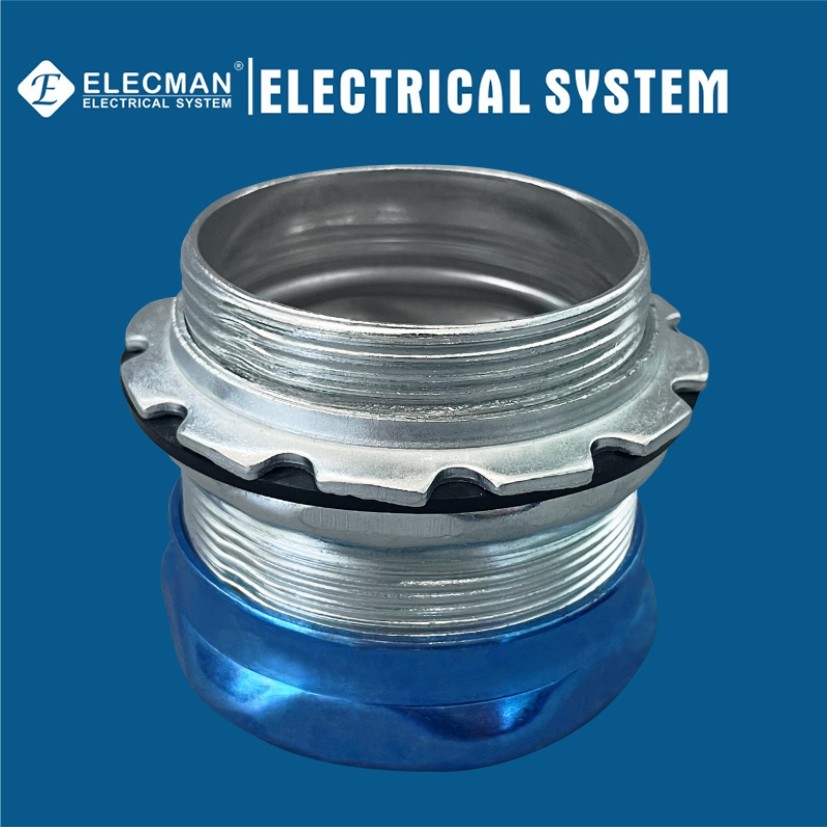

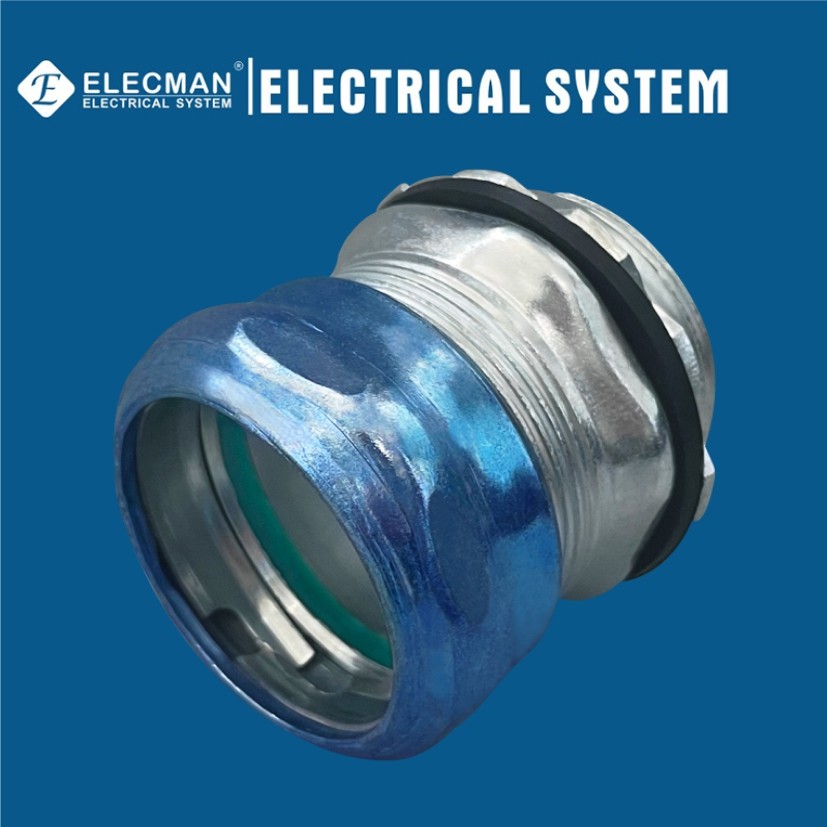

ELECMAN ® 1/2 In To 4 In Steel Non-Insulated Raintight EMT Connectors Compression Type
Applications
ELECMAN® 1/2 in to 4 in steel non-insulated raintight EMT connectors compression type are used in wet locations to bond EMT thinwall conduits to electrical junction boxes or enclosures. Rain-tight EMT compression connectors have been designed to comply with the new rain-tight test requirements. The steel construction ensures mechanical protection and the conduit to the designated electrical junction box or enclosure.
Features
Certifications and Compliances
ELECMAN® Steel raintight EMT conduit connector compression EMT conduit to box type shall be produced to the following specification:
Specification Data
ELECMAN provides full size steel raintight EMT conduit connector compression EMT conduit to box type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| RTON050 | 1/2" | 0.625 | 0.438 | 1.125 | 50 | 500 | 27.95 |
| RTON075 | 3/4" | 0.688 | 0.438 | 1.375 | 25 | 250 | 18.71 |
| RTON100 | 1" | 0.688 | 0.500 | 1.688 | 20 | 200 | 21.76 |
| RTON125 | 1-1/4" | 0.938 | 0.688 | 2.063 | 10 | 100 | 17.29 |
| RTON150 | 1-1/2" | 1.063 | 0.688 | 2.250 | 10 | 100 | 20.64 |
| RTON200 | 2" | 1.125 | 0.750 | 2.750 | 5 | 50 | 14.08 |
| RTON250 | 2-1/2" | 1.688 | 0.813 | 3.625 | - | 8 | 5.35 |
| RTON300 | 3" | 1.688 | 0.938 | 4.250 | - | 6 | 5.39 |
| RTON350 | 3-1/2" | 1.813 | 1.000 | 4.688 | - | 4 | 4.37 |
| RTON400 | 4" | 1.813 | 1.000 | 5.188 | - | 4 | 4.85 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
