| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | SCCN |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Insulated, Compression Type | Size: | 1/2" - 4" |
| IP Rating: | IP68 | Color: | Sliver |
| High Light: | 1/2 In Insulated Compression Connector,EMT Compression Connector Insulated Type,UL Listed Insulated Compression Connector |
||

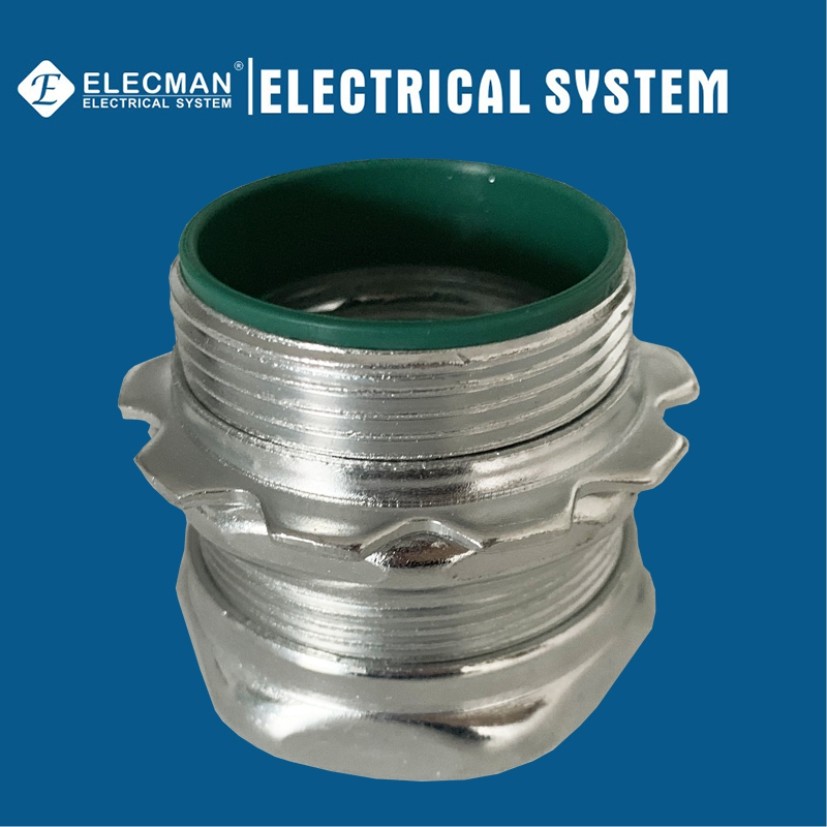

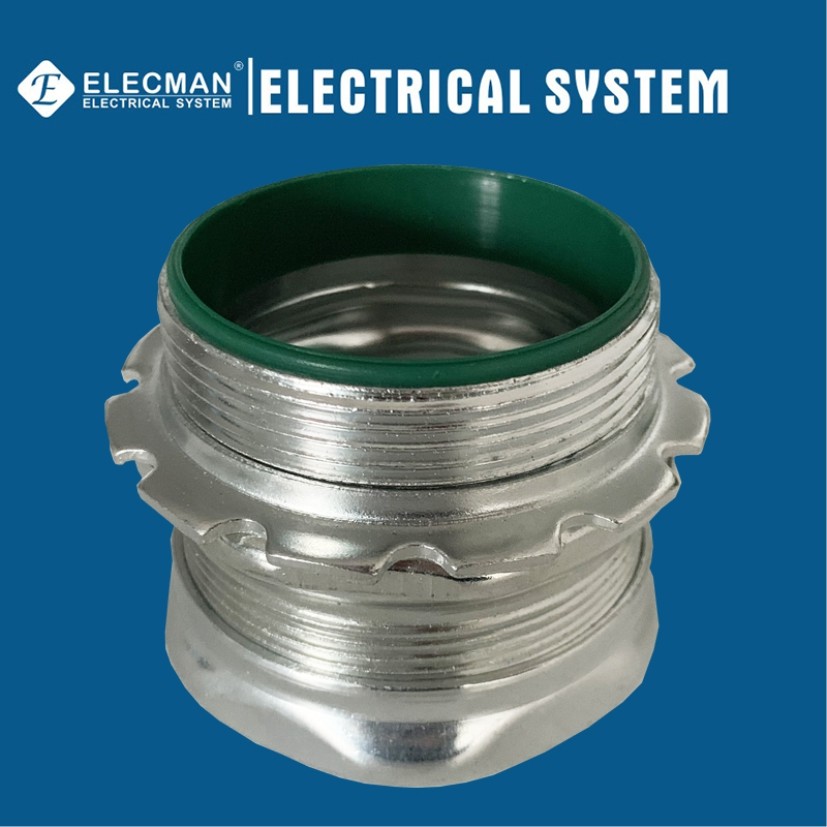

ELECMAN ® Steel UL Listed EMT Connector Compression Insulated Type 1/2 in - 4 in
Applications
ELECMAN® UL listed EMT connector compression insulated type for use to bond EMT conduit to a box or enclosure, offering ease of use and secure.The main body and locknut all fabricated from strong, resilient steel with a zinc plated finish to ensure mechanical protection. Plastic insulated throat provides stronger sealing and for easy wire pulling.
Features
Certifications and Compliances
ELECMAN® Steel insulated EMT connector compression type size 1/2" to 4" shall be produced to the following specification:
Specification Data
ELECMAN provides full size steel insulated EMT connector compression type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| SCCN050 | 1/2" | 0.625 | 0.500 | 1.125 | 50 | 500 | 26.25 |
| SCCN075 | 3/4" | 0.688 | 0.500 | 1.375 | 25 | 250 | 17.25 |
| SCCN100 | 1" | 0.688 | 0.562 | 1.688 | 50 | 200 | 20.45 |
| SCCN125 | 1-1/4" | 0.938 | 0.767 | 2.063 | 25 | 100 | 16.95 |
| SCCN150 | 1-1/2" | 1.063 | 0.767 | 2.250 | 10 | 40 | 8.25 |
| SCCN200 | 2" | 1.125 | 0.829 | 2.750 | 5 | 20 | 5.45 |
| SCCN250 | 2-1/2" | 1.688 | 0.923 | 3.625 | - | 12 | 8.47 |
| SCCN300 | 3" | 1.688 | 1.048 | 4.250 | - | 12 | 10.75 |
| SCCN350 | 3-1/2" | 1.813 | 1.110 | 4.688 | - | 6 | 6.05 |
| SCCN400 | 4" | 1.813 | 1.110 | 5.188 | - | 6 | 7.05 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
