| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | SCCN |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Insulated, Compression Type | Size: | 1/2" To 4" |
| Connection: | Compression | Color: | Sliver |
| High Light: | Steel Insulated Emt Connectors,UL Listed Insulated Emt Connectors,EMT Insulated Compression Connector |
||

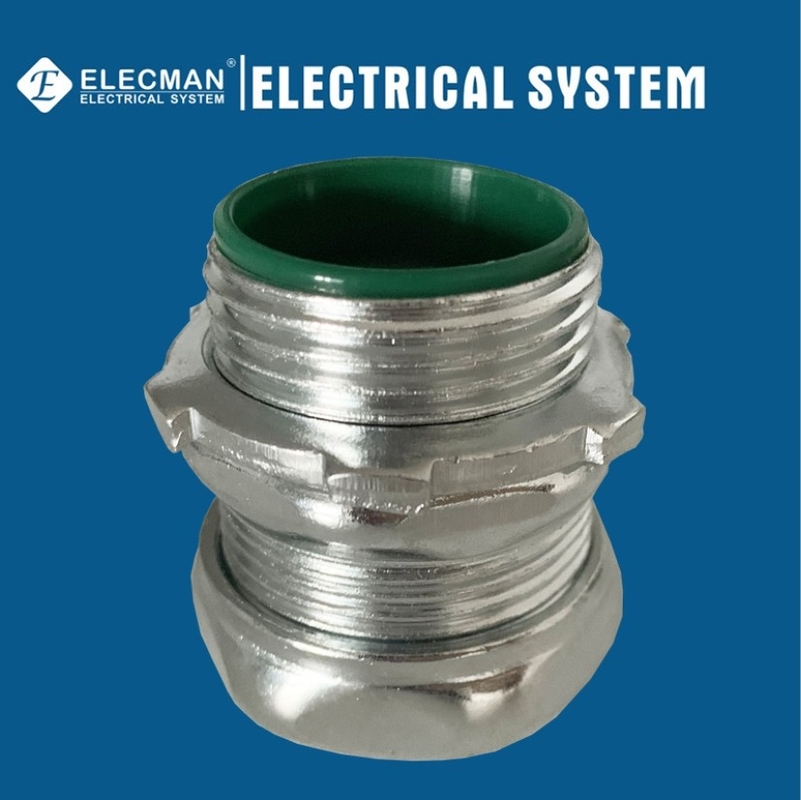

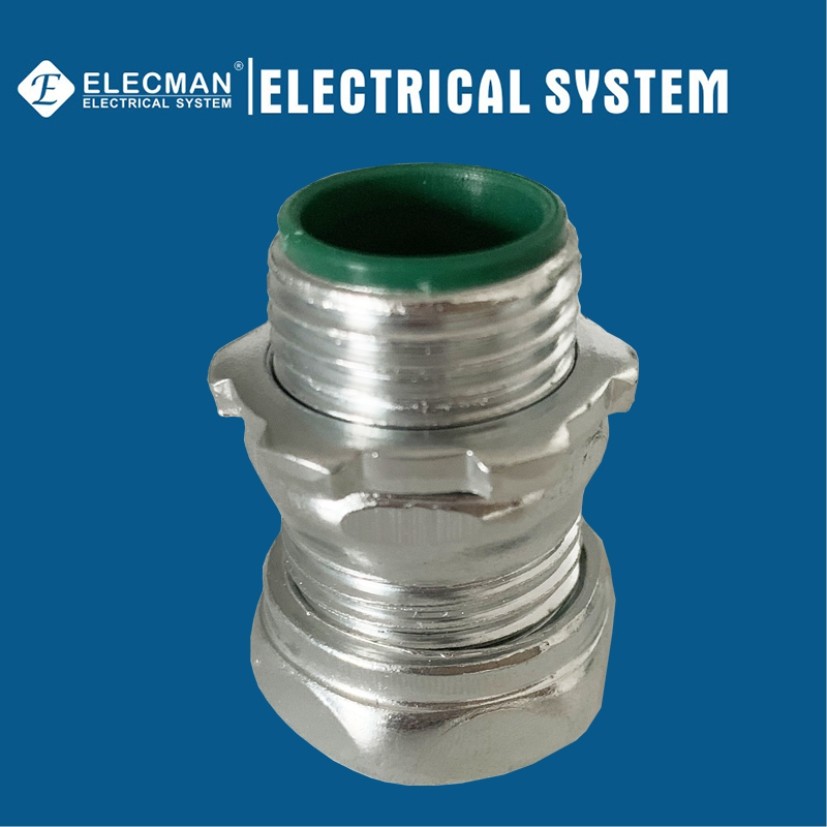

ELECMAN ® Steel Insulated EMT Connector Compression Type 1/2" to 4" UL Listed
Applications
ELECMAN® Steel insulated EMT connector compression type 1/2" to 4" is used to bond EMT conduit to a box or enclosure with compression connectors. Provides concrete-tight connections. Offered in either insulated or noninsulated. Suitable for applications above 600V. Steel construction ensures mechanical protection. Zinc-electro plated for added corrosion protection. UL Listed.
Features
Certifications and Compliances
ELECMAN® Steel insulated EMT connector compression type 1/2" to 4" shall be produced to the following specification:
Specification Data
ELECMAN provides full size steel insulated EMT connector compression type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| SCCN050 | 1/2" | 0.625 | 0.500 | 1.125 | 50 | 500 | 26.25 |
| SCCN075 | 3/4" | 0.688 | 0.500 | 1.375 | 25 | 250 | 17.25 |
| SCCN100 | 1" | 0.688 | 0.562 | 1.688 | 50 | 200 | 20.45 |
| SCCN125 | 1-1/4" | 0.938 | 0.767 | 2.063 | 25 | 100 | 16.95 |
| SCCN150 | 1-1/2" | 1.063 | 0.767 | 2.250 | 10 | 40 | 8.25 |
| SCCN200 | 2" | 1.125 | 0.829 | 2.750 | 5 | 20 | 5.45 |
| SCCN250 | 2-1/2" | 1.688 | 0.923 | 3.625 | - | 12 | 8.47 |
| SCCN300 | 3" | 1.688 | 1.048 | 4.250 | - | 12 | 10.75 |
| SCCN350 | 3-1/2" | 1.813 | 1.110 | 4.688 | - | 6 | 6.05 |
| SCCN400 | 4" | 1.813 | 1.110 | 5.188 | - | 6 | 7.05 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
