| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | SCCN |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Compression Type | Size: | 1/2" - 4" |
| Connection: | EMT Conduit To Box | Color: | Sliver |
| High Light: | Non Insulated 4 EMT Compression Connector,Steel EMT Pipe Connectors,Non Insulated EMT Pipe Connectors |
||

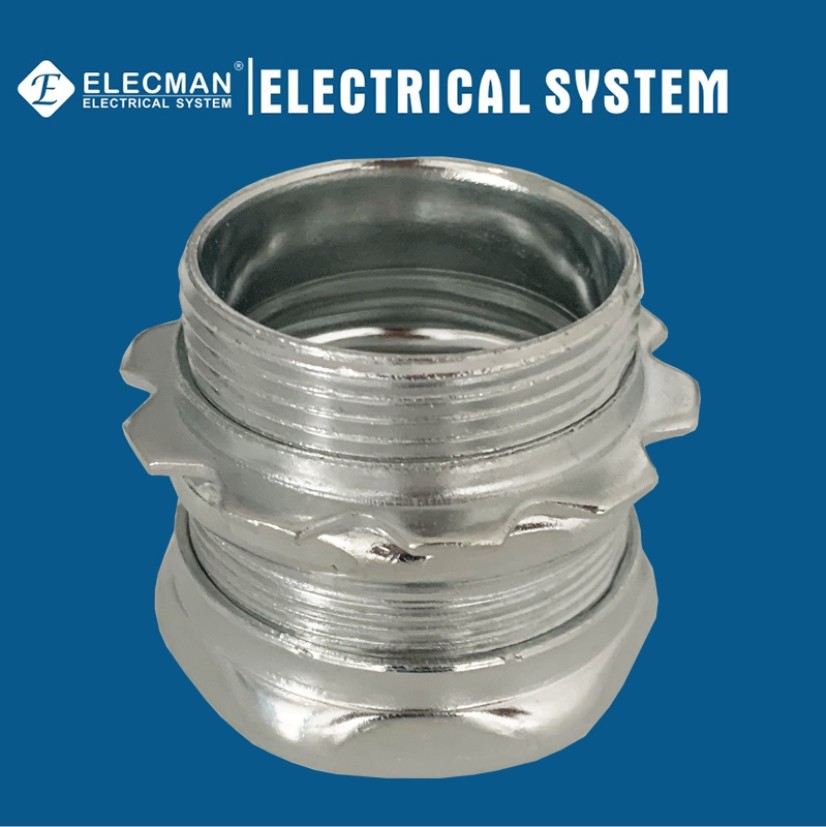

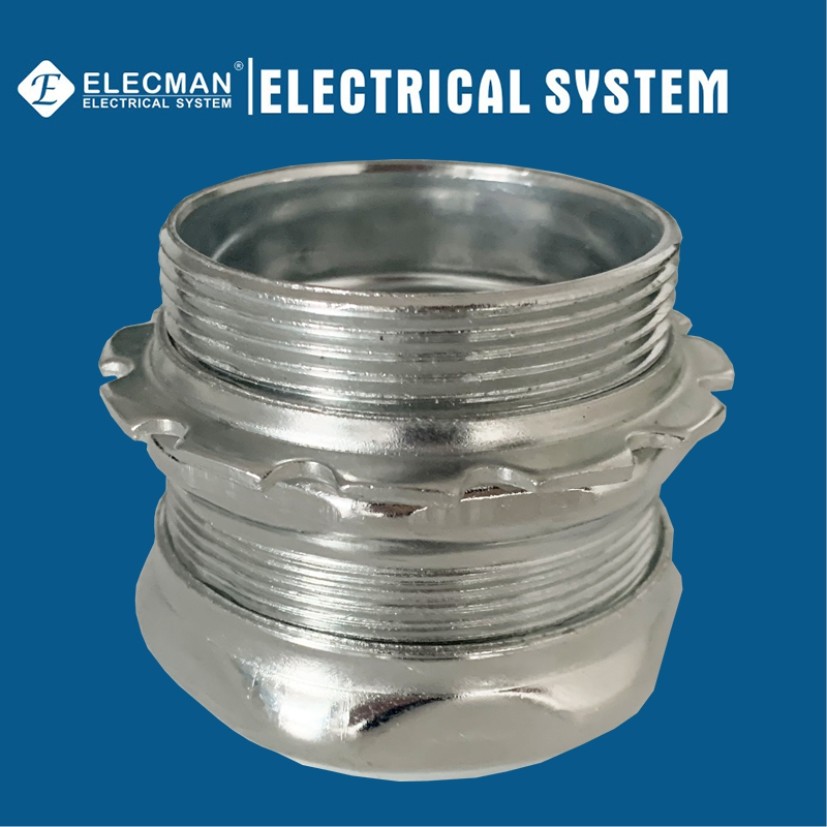

ELECMAN ® Non-Insulated Compression Type Steel EMT Pipe Connectors 1/2" - 4"
Applications
ELECMAN® Non-insulated compression type steel EMT pipe connectors 1/2" - 4" are used to connect EMT conduit to steel outlet boxes, load centers and other metal enclosures. Not for use in underground applications. These connectors meet UL requirements. EMT compression connectors are pure steel and with zinc-plated surface for excellent corrosion protection.
Features
Certifications and Compliances
ELECMAN® Non-insulated compression type steel EMT pipe connectors 1/2" - 4" shall be produced to the following specification:
Specification Data
ELECMAN provides full size Non-insulated compression type steel EMT pipe connectors from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| SCCN050 | 1/2" | 0.625 | 0.438 | 1.125 | 50 | 500 | 26.20 |
| SCCN075 | 3/4" | 0.688 | 0.438 | 1.375 | 25 | 250 | 17.20 |
| SCCN100 | 1" | 0.688 | 0.500 | 1.688 | 50 | 200 | 20.40 |
| SCCN125 | 1-1/4" | 0.938 | 0.688 | 2.063 | 25 | 100 | 16.90 |
| SCCN150 | 1-1/2" | 1.063 | 0.688 | 2.250 | 10 | 40 | 8.20 |
| SCCN200 | 2" | 1.125 | 0.750 | 2.750 | 5 | 20 | 5.40 |
| SCCN250 | 2-1/2" | 1.688 | 0.813 | 3.625 | - | 12 | 8.42 |
| SCCN300 | 3" | 1.688 | 0.938 | 4.25 | - | 12 | 10.70 |
| SCCN350 | 3-1/2" | 1.813 | 1.000 | 4.688 | - | 6 | 6.00 |
| SCCN400 | 4" | 1.813 | 1.000 | 5.188 | - | 6 | 7.00 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
