| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | SCCN |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Compression Type | Size: | 1/2" - 4" |
| Connection: | EMT Conduit To Box | Color: | Sliver |
| High Light: | UL Listed Steel EMT Connector,Steel 4 EMT Compression Connector,UL 4 EMT Compression Connector |
||

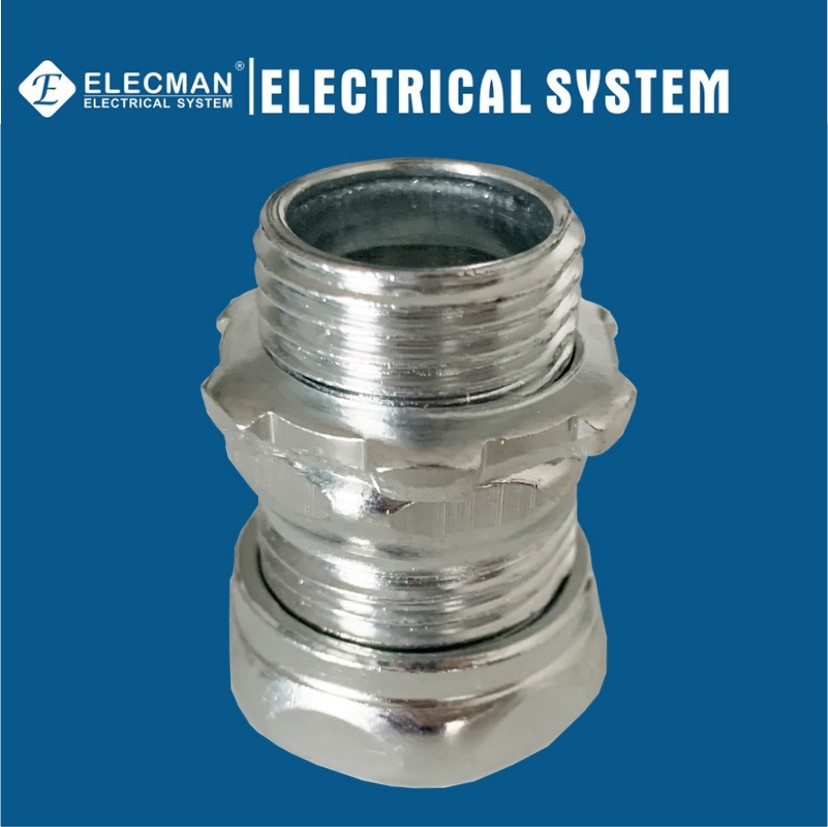

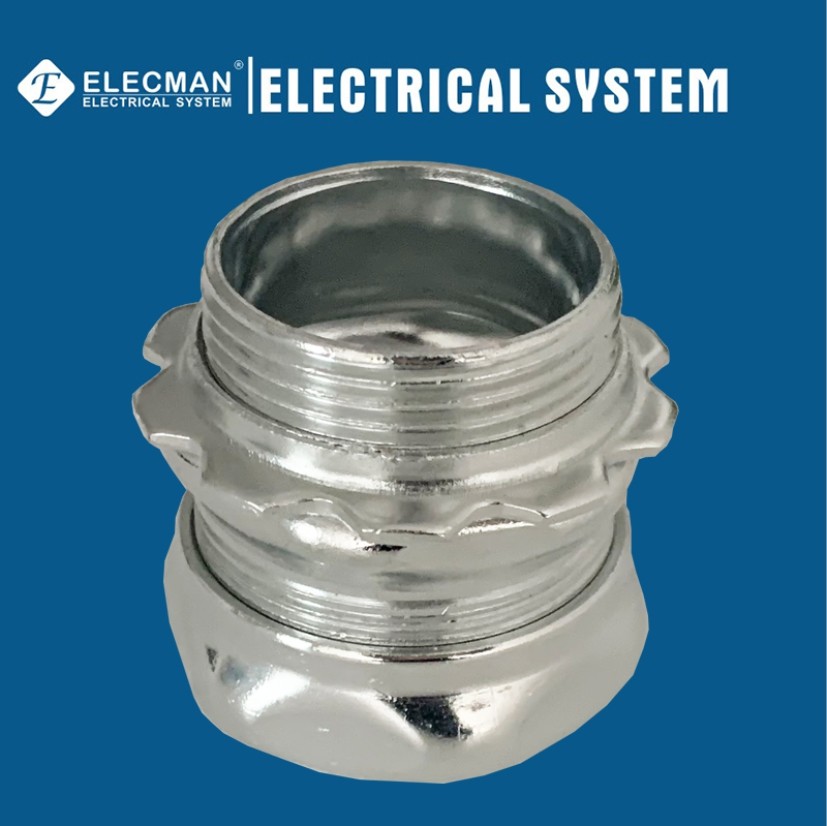

ELECMAN ® UL Listed Steel EMT Connector Compression Type 1/2 Inch To 4 Inch
Applications
ELECMAN® UL listed steel EMT connector compression type 1/2 inch to 4 inch offer ease of use and provide a secure, concrete tight joining of thin wall EMT conduit. Compression fittings can be used indoors and outdoors, they actual bite down on the conduit a lot better than a standard set-screw connector or coupling.
Features
Certifications and Compliances
ELECMAN® Steel EMT connector compression type 1/2 inch to 4 inch shall be produced to the following specification:
Specification Data
ELECMAN provides full size UL listed steel EMT connector compression type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| SCCN050 | 1/2" | 0.625 | 0.438 | 1.125 | 50 | 500 | 26.20 |
| SCCN075 | 3/4" | 0.688 | 0.438 | 1.375 | 25 | 250 | 17.20 |
| SCCN100 | 1" | 0.688 | 0.500 | 1.688 | 50 | 200 | 20.40 |
| SCCN125 | 1-1/4" | 0.938 | 0.688 | 2.063 | 25 | 100 | 16.90 |
| SCCN150 | 1-1/2" | 1.063 | 0.688 | 2.250 | 10 | 40 | 8.20 |
| SCCN200 | 2" | 1.125 | 0.750 | 2.750 | 5 | 20 | 5.40 |
| SCCN250 | 2-1/2" | 1.688 | 0.813 | 3.625 | - | 12 | 8.42 |
| SCCN300 | 3" | 1.688 | 0.938 | 4.25 | - | 12 | 10.70 |
| SCCN350 | 3-1/2" | 1.813 | 1.000 | 4.688 | - | 6 | 6.00 |
| SCCN400 | 4" | 1.813 | 1.000 | 5.188 | - | 6 | 7.00 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
