| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | SCOP |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Set Screw Type | Size: | 1/2" - 4" |
| Connection: | EMT Conduit To EMT Conduit | Color: | Sliver |
| High Light: | Galvanized Steel EMT Conduit Couplings,EMT Conduit Couplings Set Screw Type,Galvanized Steel Emt Set Screw Coupling |
||

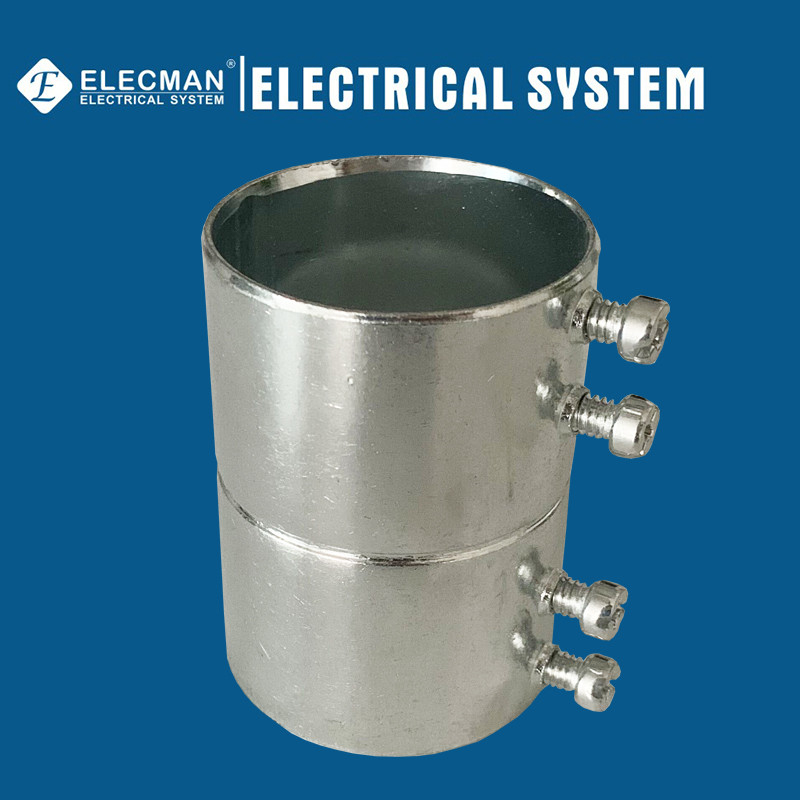

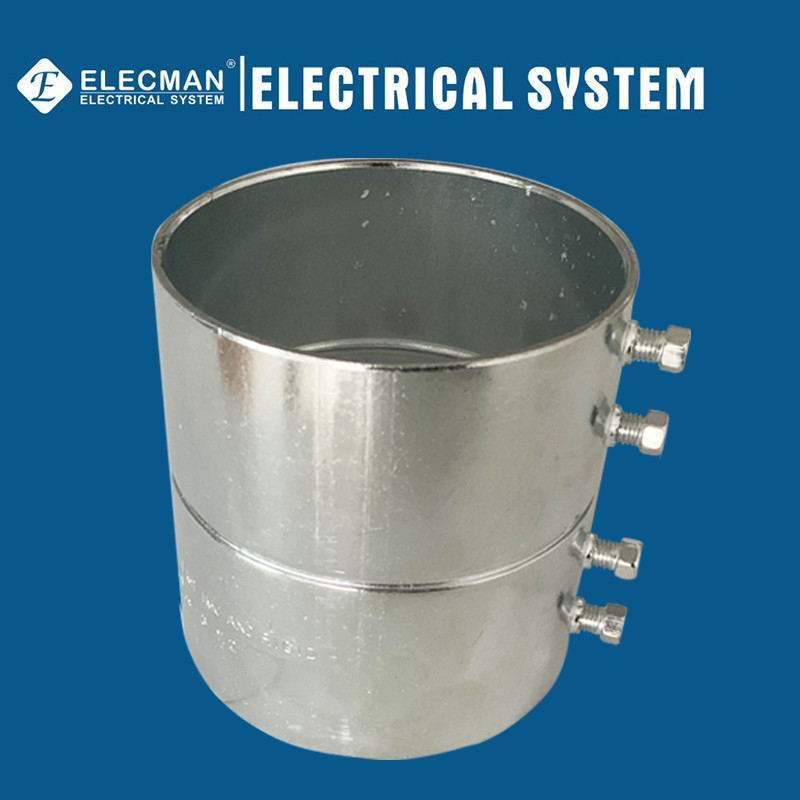

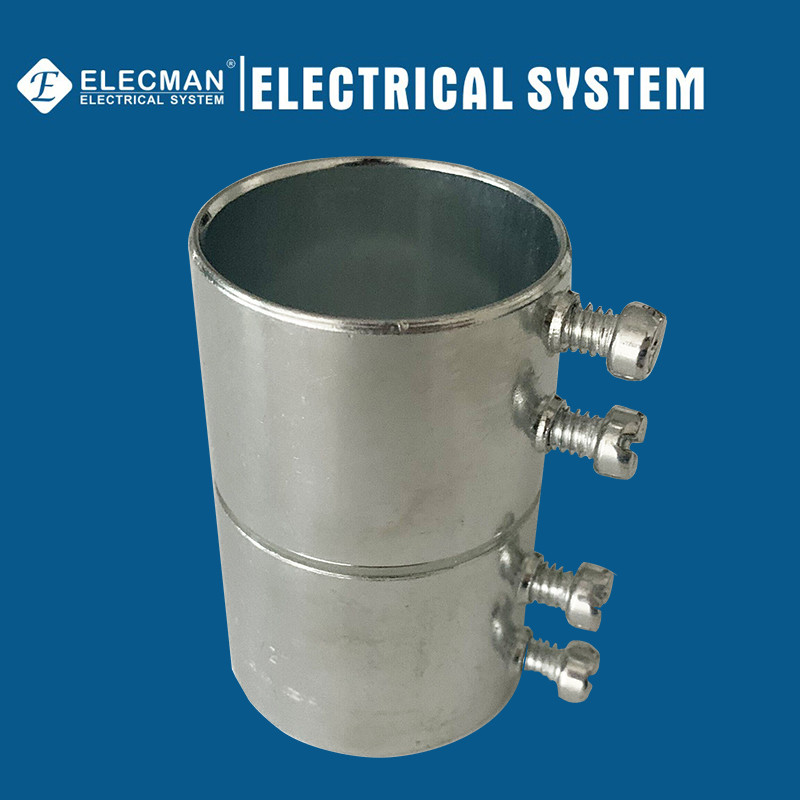

ELECMAN ® Galvanized Steel EMT Conduit Couplings Set Screw Type UL Certification
Applications
ELECMAN® Galvanized steel EMT conduit couplings set screw type UL certification are used in dry locations to connect the ends of two EMT thinwall conduits together to extend the raceway. EMT set screw electrical couplings provide concrete tight connections when taped and properly secured with the included set screws and are rated for electrical applications above 600 volts. Their heavy gauge steel construction maintains mechanical protection and solid grounding of one conduit to another.
Features
Certifications and Compliances
ELECMAN® Galvanized steel EMT conduit couplings set screw type shall be produced to the following specifications:
Specification Data
ELECMAN provides full size galvanized steel EMT conduit couplings set screw type UL certification from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| SCOP050 | 1/2" | 0.875 | 1.566 | 50 | 500 | 18.40 |
| SCOP075 | 3/4" | 1.130 | 1.817 | 25 | 250 | 12.00 |
| SCOP100 | 1" | 1.190 | 2.254 | 50 | 200 | 18.02 |
| SCOP125 | 1-1/4" | 1.750 | 2.064 | 25 | 100 | 15.73 |
| SCOP150 | 1-1/2" | 2.000 | 3.000 | 10 | 100 | 7.86 |
| SCOP200 | 2" | 2.440 | 3.250 | 5 | 50 | 5.37 |
| SCOP250 | 2-1/2" | 3.130 | 4.000 | - | 12 | 7.40 |
| SCOP300 | 3" | 3.750 | 4.250 | - | 12 | 9.10 |
| SCOP350 | 3-1/2" | 4.250 | 4.500 | - | 6 | 5.80 |
| SCOP400 | 4" | 4.750 | 4.750 | - | 6 | 6.70 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality steel, every part of the coupling are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
