| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | SCOP |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Set Screw Type | Size: | 1/2" - 4" |
| Connection: | EMT Conduit To EMT Conduit | Color: | Sliver |
| High Light: | UL Listed 4 Inch Emt Coupling,Steel 4 Inch Emt Coupling,EMT Coupling Set Screw Type |
||

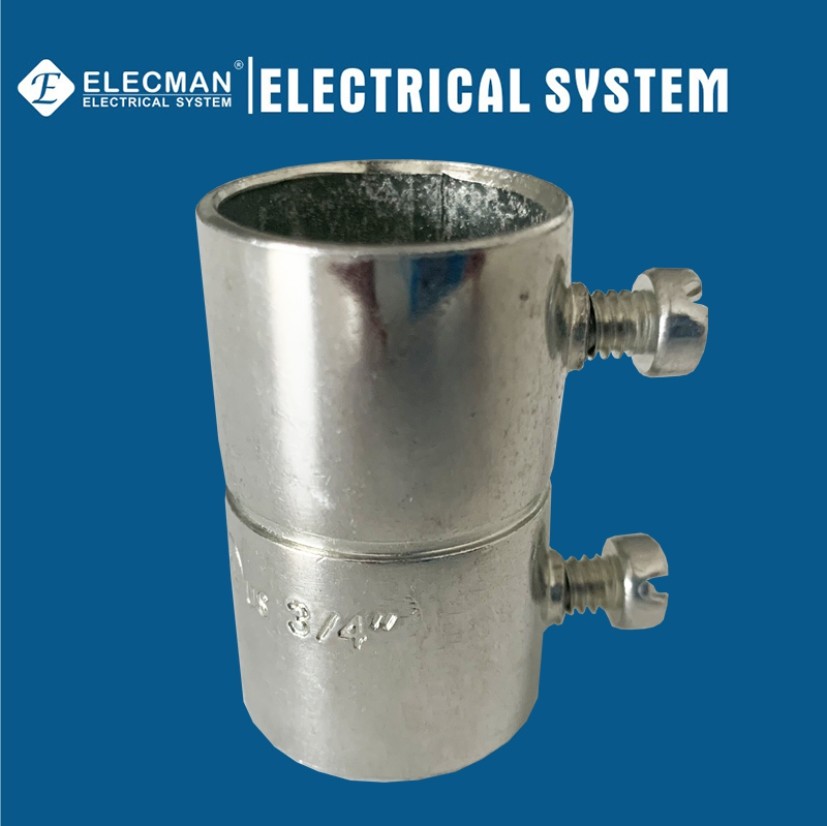

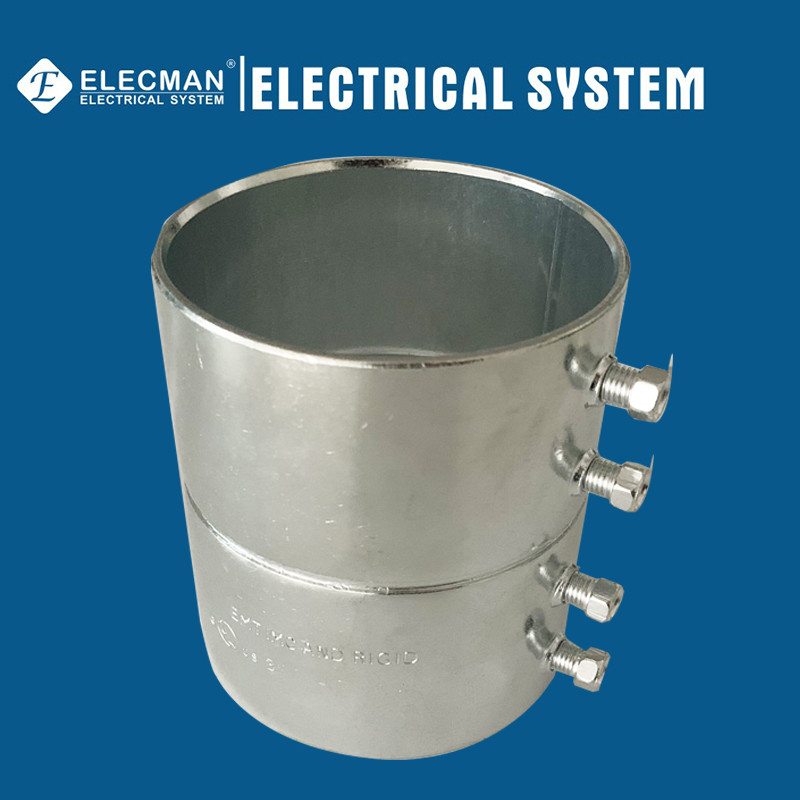

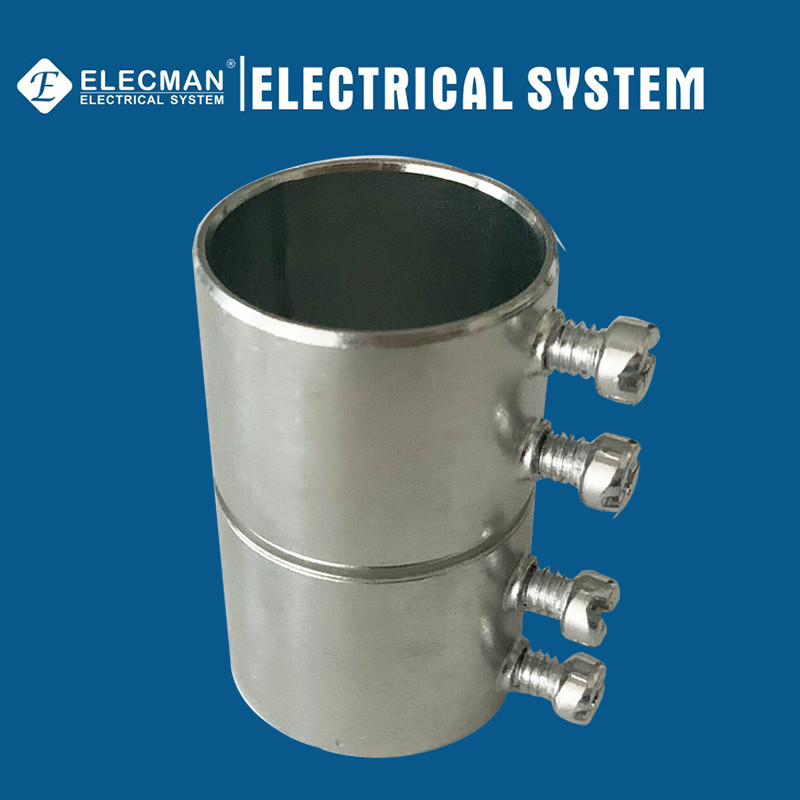

ELECMAN ® UL Listed Steel EMT Coupling Set Screw Type Conduit Fittings 1/2 Inch To 4 Inch
Applications
ELECMAN® UL listed steel EMT coupling set screw type conduit fittings 1/2 inch to 4 inch is used to join two lengths of EMT electrical conduits. This steel setscrew coupling is designed to be used in dry locations, and provide secure, concrete tight protection when taped to connect ends of thin wall EMT conduit together. Available sizes from 1/2" to 4", UL listed. Their heavy gauge steel construction maintains mechanical protection and solid grounding of one conduit to another.
Features
Certifications and Compliances
ELECMAN® Steel EMT coupling set screw type conduit fittings 1/2 inch to 4 inch shall be produced to the following specifications:
Specification Data
ELECMAN provides full size UL listed steel EMT coupling set screw type conduit fittings from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| SCOP050 | 1/2" | 0.875 | 1.566 | 50 | 500 | 18.40 |
| SCOP075 | 3/4" | 1.130 | 1.817 | 25 | 250 | 12.00 |
| SCOP100 | 1" | 1.190 | 2.254 | 50 | 200 | 18.02 |
| SCOP125 | 1-1/4" | 1.750 | 2.064 | 25 | 100 | 15.73 |
| SCOP150 | 1-1/2" | 2.000 | 3.000 | 10 | 100 | 7.86 |
| SCOP200 | 2" | 2.440 | 3.250 | 5 | 50 | 5.37 |
| SCOP250 | 2-1/2" | 3.130 | 4.000 | - | 12 | 7.40 |
| SCOP300 | 3" | 3.750 | 4.250 | - | 12 | 9.10 |
| SCOP350 | 3-1/2" | 4.250 | 4.500 | - | 6 | 5.80 |
| SCOP400 | 4" | 4.750 | 4.750 | - | 6 | 6.70 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality steel, every part of the coupling are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
