| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | SCON |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | With Insulated Throat Type | Size: | 1/2" - 4" |
| Connection: | Set Screw | Color: | Sliver |
| High Light: | EMT Connectors Set Screw Type,Steel EMT Connectors,EMT Connectors With Insulated Throat |
||

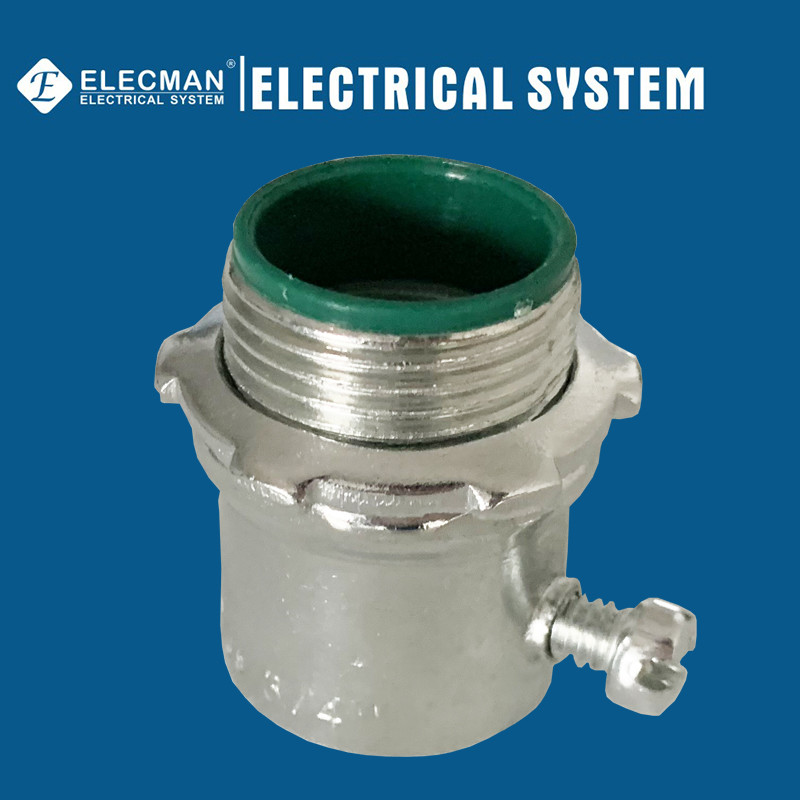

ELECMAN ® EMT Connectors Set Screw Type With Insulated Throat, 1/2 Inch to 4 Inch, Galvanized Steel
Applications

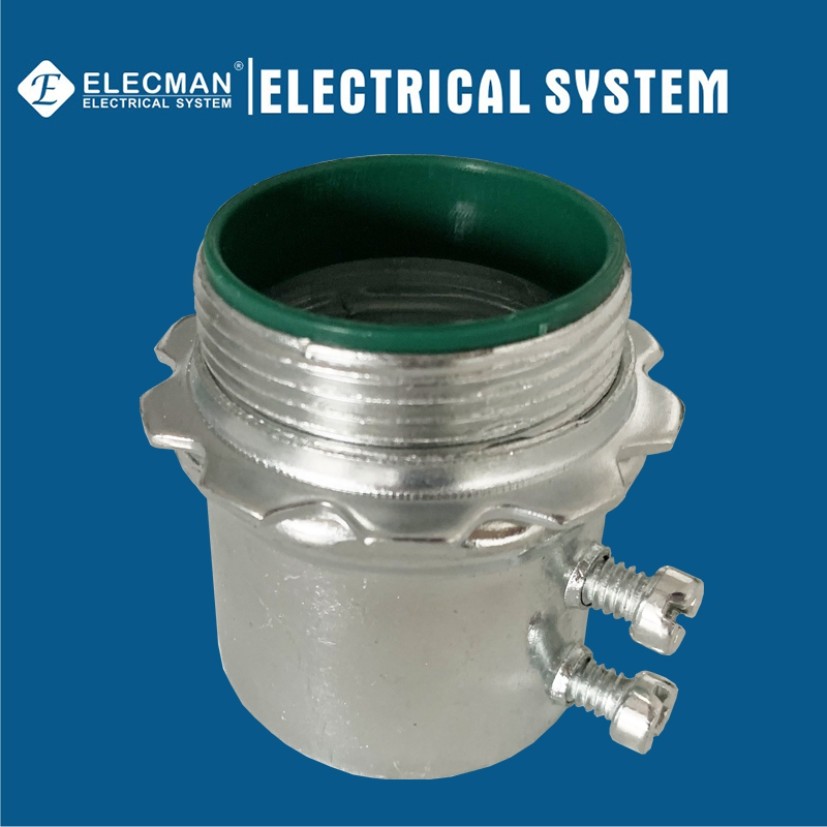

ELECMAN® Steel EMT connectors set screw type with insulated throat are used in dry locations to bond EMT thin wall conduit to electrical boxes or enclosures. Set-screw fittings are typically faster and easier to install and can also be stronger than compression fittings. Set-screw couplers are clearly identifiable by the screws that are used to tighten them, they may have one or more screws, depending on the conduit size.
Features
Certifications and Compliances
ELECMAN® Steel EMT connectors set screw type with insulated throat shall be produced to the following specifications:
Specification Data
ELECMAN provides full size Steel EMT connectors set screw type with insulated throat from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| SCON050 | 1/2" | 0.880 | 1.507 | 50 | 500 | 19.55 |
| SCON075 | 3/4" | 1.130 | 1.566 | 25 | 250 | 13.05 |
| SCON100 | 1" | 1.380 | 1.815 | 50 | 200 | 17.13 |
| SCON125 | 1-1/4" | 1.380 | 2.389 | 25 | 100 | 15.99 |
| SCON150 | 1-1/2" | 2.750 | 2.329 | 10 | 100 | 7.31 |
| SCON200 | 2" | 2.000 | 2.459 | 5 | 50 | 4.96 |
| SCON250 | 2-1/2" | 3.440 | 3.300 | - | 12 | 6.55 |
| SCON300 | 3" | 3.130 | 3.920 | - | 12 | 8.35 |
| SCON350 | 3-1/2" | 4.750 | 4.420 | - | 6 | 5.05 |
| SCON400 | 4" | 4.250 | 4.990 | - | 6 | 5.83 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
