| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | SCON |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Set Screw Type | Size: | 1/2" - 4" |
| Connection: | EMT Conduit To Box | Color: | Sliver |
| High Light: | Galvanized Steel Set Screw Connectors,Galvanized Steel EMT Set Screw Connector,Non Insulated EMT Set Screw Connector |
||

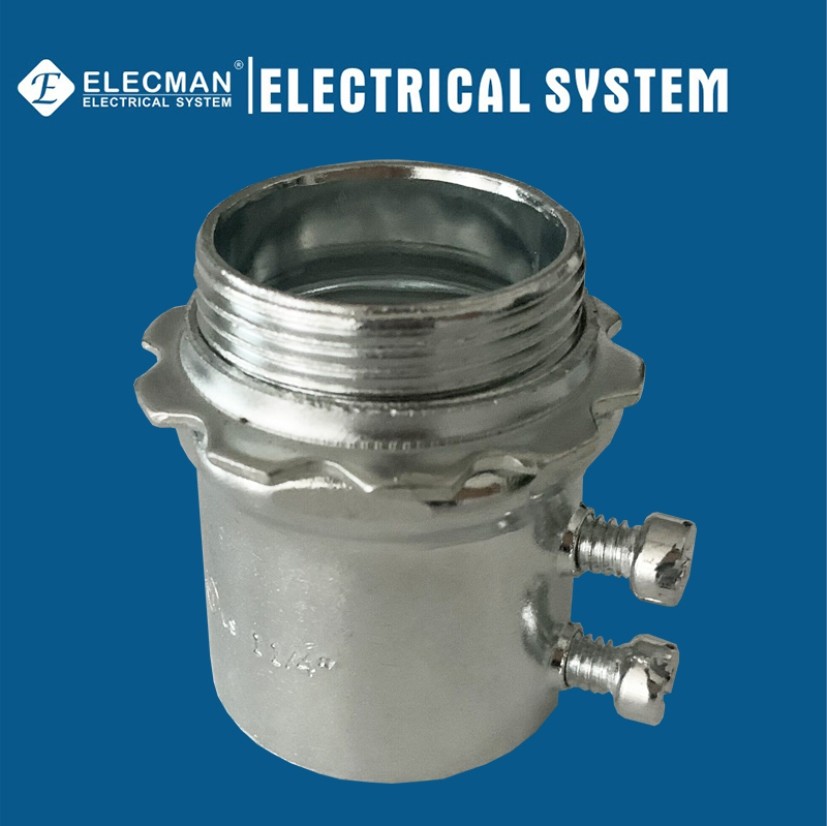

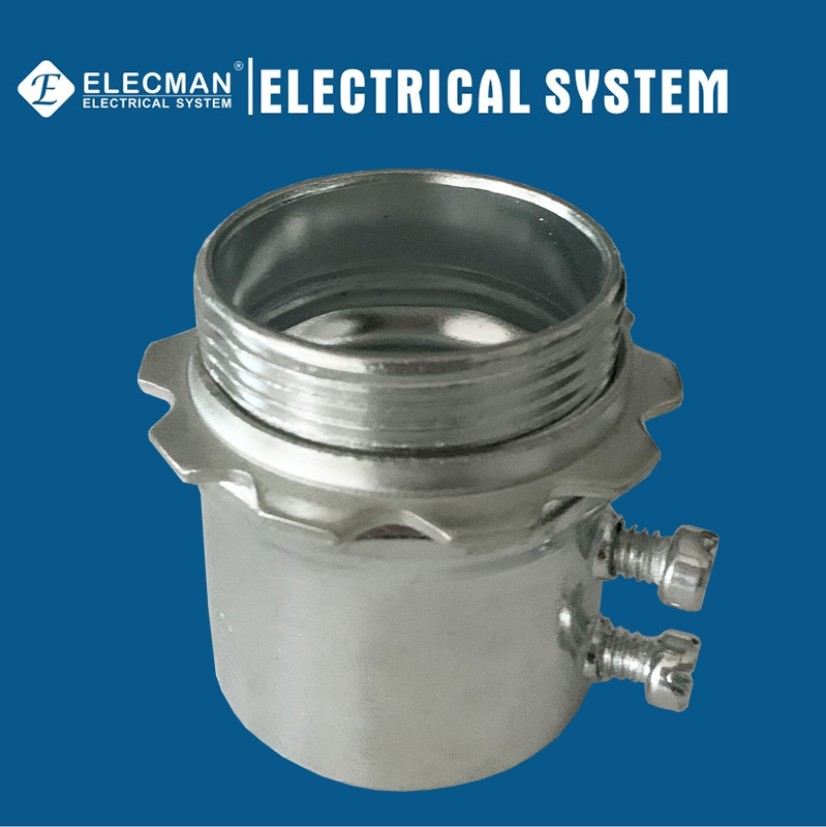

ELECMAN ® 1/2" - 4" Galvanized Steel EMT Pipe Set Screw Connectors Non-Insulated Type
Applications
ELECMAN® 1/2" - 4" galvanized steel EMT pipe set screw connectors non-insulated type are meant to slide over the end of a piece of conduit on one side, and tighten down to the inside of a box or enclosure on the other end. You will almost always use both couplings and connectors in every conduit run together.
Features
Certifications and Compliances
ELECMAN® 1/2" - 4" galvanized steel EMT pipe set screw connectors non-insulated type shall be produced to the following specifications:
Specification Data
ELECMAN provides full size galvanized steel EMT pipe set screw connectors non-insulated type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| SCON050 | 1/2" | 0.880 | 1.445 | 50 | 500 | 19.50 |
| SCON075 | 3/4" | 1.130 | 1.504 | 25 | 250 | 13.00 |
| SCON100 | 1" | 1.380 | 1.753 | 50 | 200 | 17.08 |
| SCON125 | 1-1/4" | 1.380 | 2.310 | 25 | 100 | 15.94 |
| SCON150 | 1-1/2" | 2.750 | 2.250 | 10 | 100 | 7.26 |
| SCON200 | 2" | 2.000 | 2.380 | 5 | 50 | 4.91 |
| SCON250 | 2-1/2" | 3.440 | 3.190 | - | 12 | 6.50 |
| SCON300 | 3" | 3.130 | 3.810 | - | 12 | 8.30 |
| SCON350 | 3-1/2" | 4.750 | 4.310 | - | 6 | 5.00 |
| SCON400 | 4" | 4.250 | 4.880 | - | 6 | 5.78 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
