| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | CCP |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Zinc Die Cast | Surface Finish: | Natural |
|---|---|---|---|
| Type: | Compression Type | Size: | 1/2" - 4" |
| Connection: | EMT Conduit To EMT Conduit | Color: | Sliver |
| High Light: | UL Standard EMT Conduit Coupling,UL Standard Emt Compression Coupling,Compression Type EMT Conduit Coupling |
||

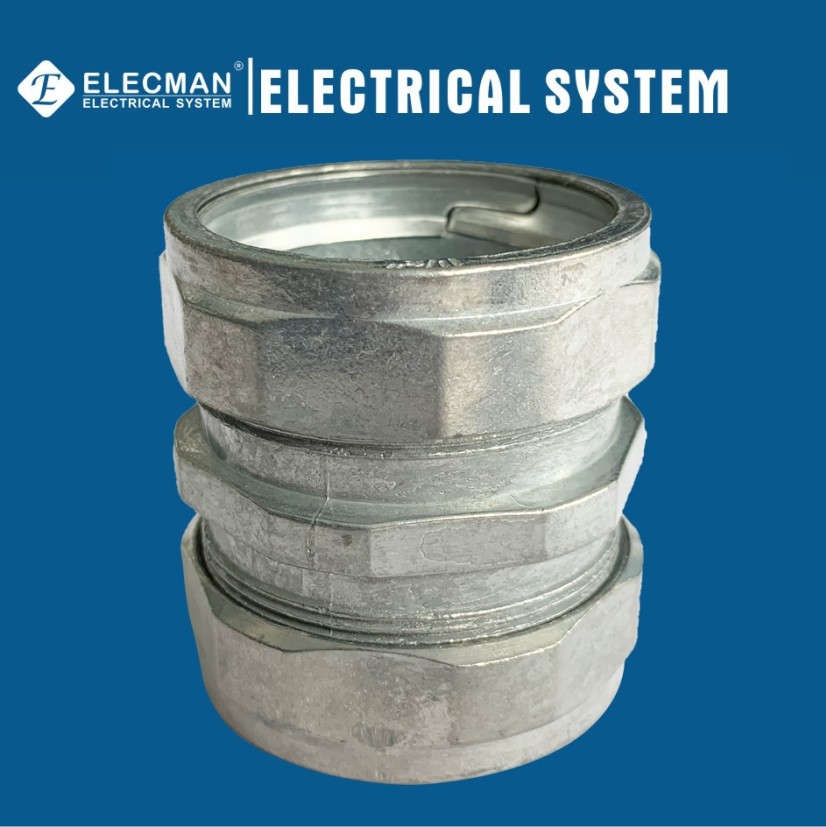

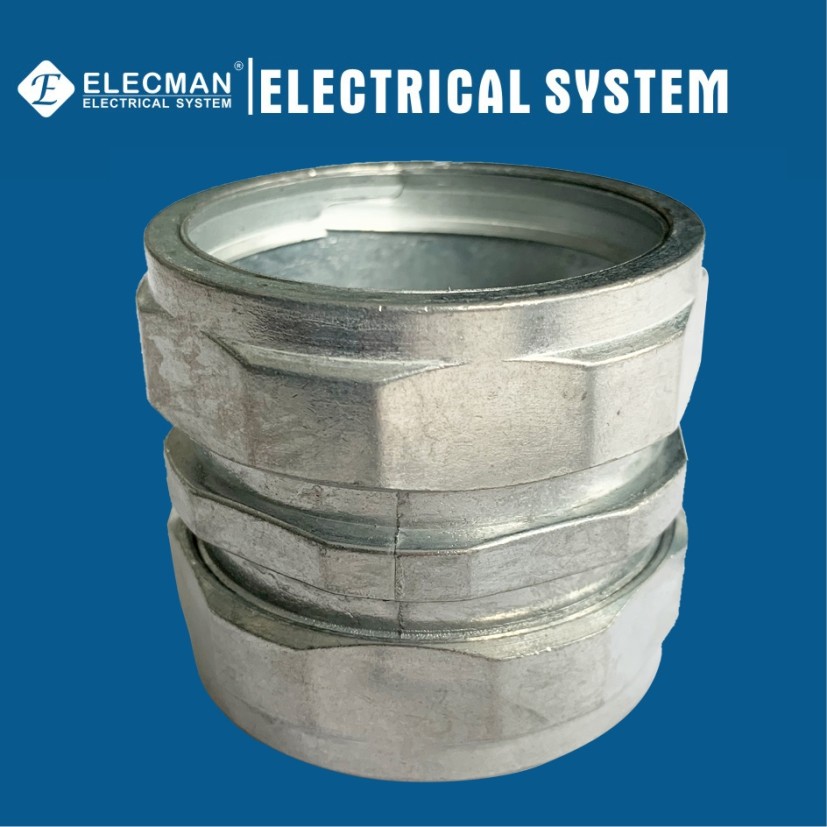

ELECMAN ® 1/2 Inch To 4 Inch Zinc EMT Conduit Coupling Compression Type UL Standard
Applications
ELECMAN® 1/2 inch to 4 inch zinc EMT conduit coupling feature compression type assembly and provide secure, concrete tight protection when taped to connect ends of thin wall EMT conduit together. Durably constructed of corrosion resistant zinc/aluminium die cast, galvanized steel, available sizes from 1/2" to 4", 2 1/2" to 4" sizes suitable for use with both EMT and rigid conduit.
ELECMAN® zinc EMT conduit compression type couplings are used to secure and terminate steel EMT conduit to EMT conduit, dry or damp location applications concrete-tight.
Features
Certifications and Compliances
ELECMAN® 1/2 inch to 4 inch zinc EMT conduit coupling compression type UL standard shall be produced to the following specifications:
Specification Data
ELECMAN provides full size zinc EMT conduit coupling compression type UL standard from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | INNER PACK | MASTER PACK | WEIGHT/C |
| CCP050 | 1/2" | 1.500 | 1.100 | 100 | 500 | 14.50 |
| CCP075 | 3/4" | 1.610 | 1.300 | 100 | 500 | 22.50 |
| CCP100 | 1" | 1.850 | 1.660 | 50 | 250 | 15.50 |
| CCP125 | 1-1/4" | 2.050 | 2.090 | 25 | 125 | 14.90 |
| CCP150 | 1-1/2" | 2.470 | 2.300 | 10 | 100 | 15.00 |
| CCP200 | 2" | 2.560 | 2.850 | 10 | 50 | 11.40 |
| CCP250 | 2-1/2" | 3.280 | 2.650 | - | 25 | - |
| CCP300 | 3" | 3.420 | 4.490 | - | 20 | - |
| CCP400 | 4" | 3.530 | 5.620 | - | 10 | - |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality zinc, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
