| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | COP |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Zinc | Surface Finish: | Natural |
|---|---|---|---|
| Type: | Set Screw Type | Size: | 1/2" To 4" |
| Color: | Sliver | Section Shape: | Round |
| High Light: | EMT Pipe Set Screw Coupling,Zinc Die Cast Screw Coupling,UL Listed EMT Set Screw Coupling |
||

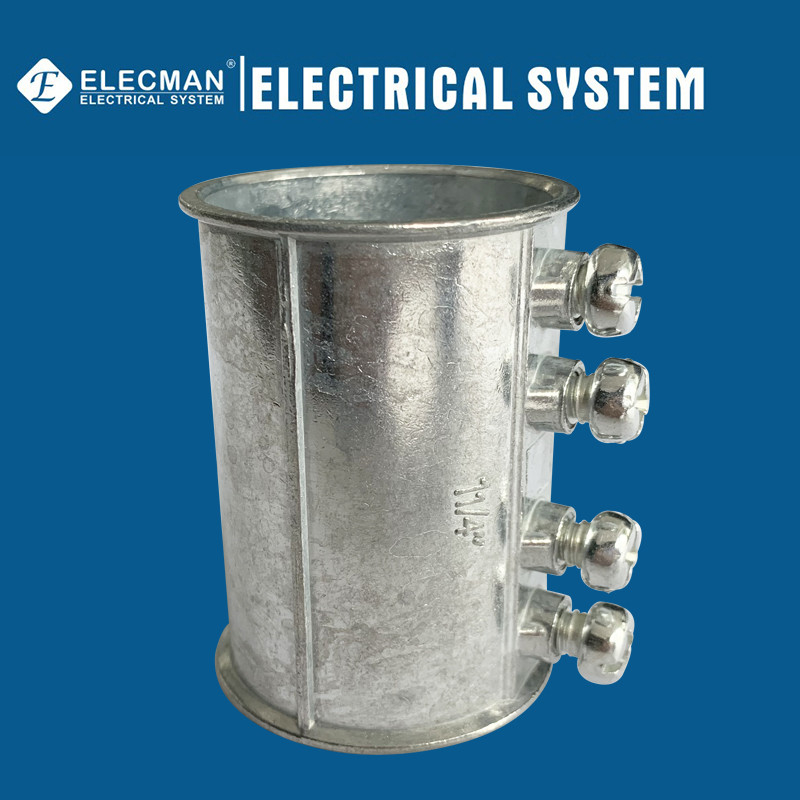

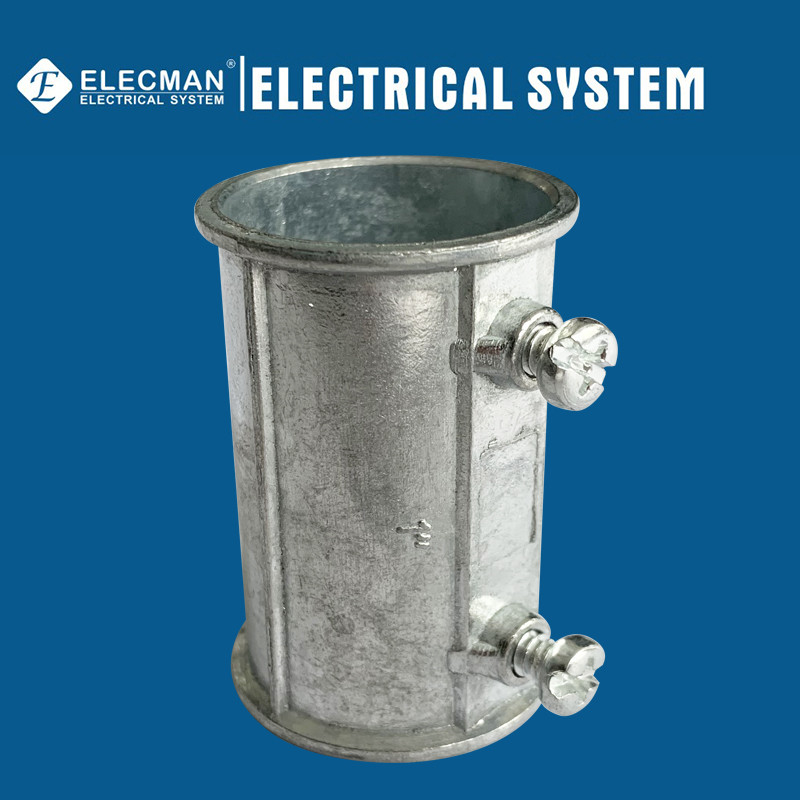

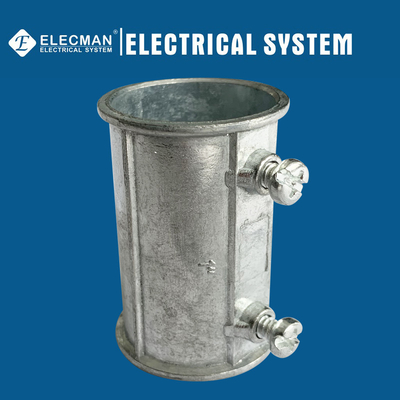

ELECMAN ® UL Listed Zinc Die Cast EMT Pipe Set Screw Coupling 1/2 In To 4 In
Applications
ELECMAN® UL listed zinc die cast EMT pipe set screw coupling 1/2 in to 4 in provide a secure connection to any EMT application. EMT coupling is one of the EMT fittings, and used to connect two lengths of steel EMT conduit in dry locations. These die-cast zinc couplings are approved for concrete-tight applications when taped.
ELECMAN® Manufactures set screw type EMT couplings in zinc, steel and aluminum, which can meet all your requirements in different markets.
Features
Certifications and Compliances
ELECMAN® Zinc die cast EMT pipe set screw coupling 1/2 in to 4 in shall be produced to the following specifications:
Specification Data
ELECMAN provides full size UL listed zinc die cast EMT pipe set screw coupling from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | INNER PACK | MASTER PACK | WEIGHT/C |
| COP050 | 1/2" | 1.520 | 0.920 | 100 | 500 | 10.00 |
| COP075 | 3/4" | 1.920 | 1.150 | 100 | 500 | 15.90 |
| COP100 | 1" | 2.000 | 1.430 | 50 | 250 | 10.50 |
| COP125 | 1-1/4" | 2.510 | 1.820 | 25 | 125 | 10.10 |
| COP150 | 1-1/2" | 2.850 | 2.050 | 20 | 100 | 10.00 |
| COP200 | 2" | 3.400 | 2.500 | 10 | 50 | 8.80 |
| COP250 | 2-1/2" | 4.200 | 3.300 | - | 25 | 7.00 |
| COP300 | 3" | 4.650 | 4.010 | - | 20 | 6.40 |
| COP400 | 4" | 5.470 | 5.010 | - | 10 | 5.30 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality zinc, the screws are made of steel, every part of the coupling are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
