| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | CCN |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Zinc Die Cast | Surface Finish: | Natural |
|---|---|---|---|
| Type: | Compression Type | Size: | 1/2" To 4" |
| Connection: | EMT Conduit To Box | Section Shape: | Round |
| High Light: | Zinc Die Cast EMT Conduit Couplings,Compression Type EMT Conduit Couplings,UL Listed Emt Compression Coupling |
||

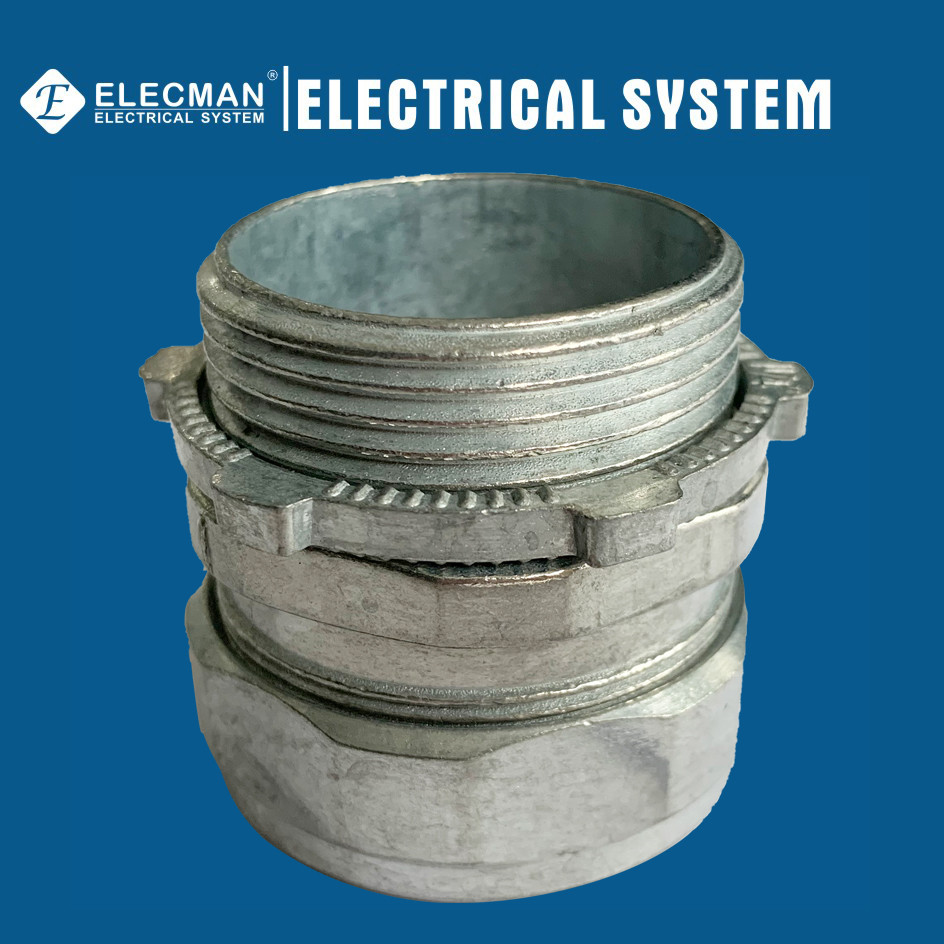

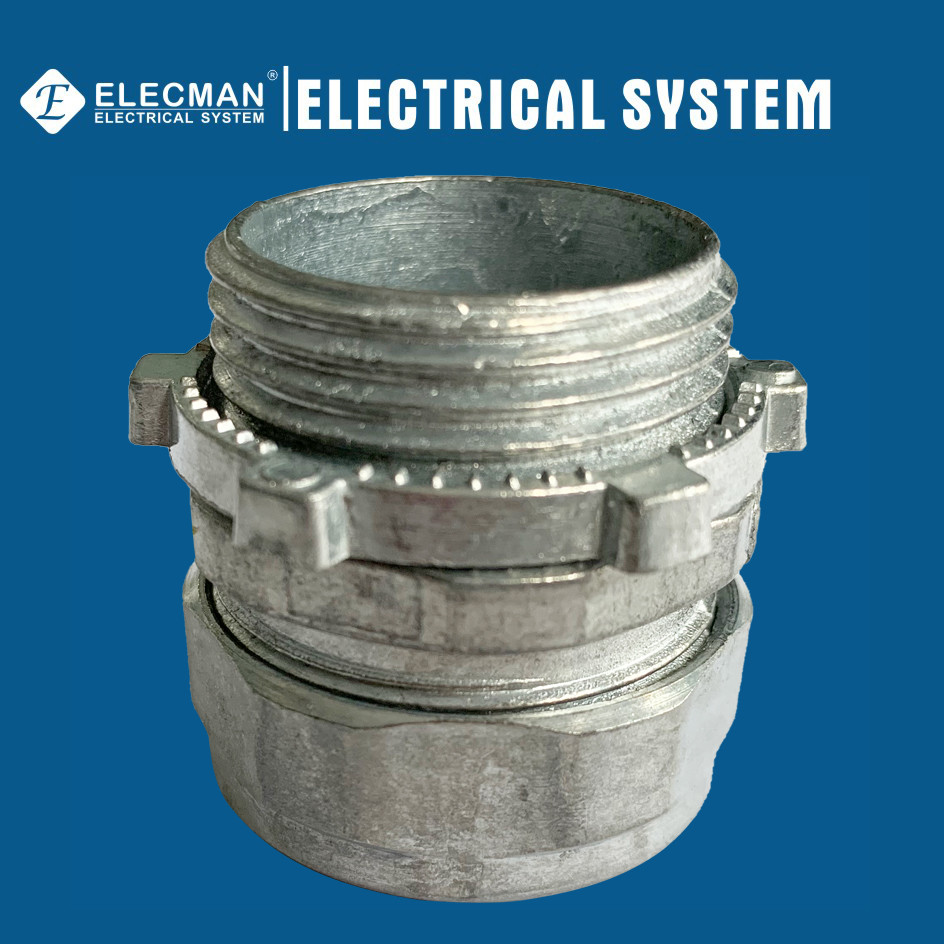

ELECMAN ® Zinc Die Cast EMT Conduit Couplings Compression Type UL Listed
Applications
ELECMAN® Zinc die cast EMT conduit couplings compression type is part of UL listed EMT fittings. A zinc EMT compression connector is used to connect EMT thin wall conduit pipe to a metallic outlet box or metal enclosure by tightening the compression nuts with channel locks. Elecman also produces EMT connectors compression type in steel. EMT compression connector is available in 1/2" through 4". Connector that sizes in 2-1/2", 3" and 4" can be also used for RMC and IMC conduits.
Features
Certifications and Compliances
ELECMAN® Zinc die cast EMT conduit couplings compression type shall be produced to the following specifications:
Specification Data
ELECMAN provides full size Zinc die cast EMT conduit couplings compression type UL listed from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | INNER PACK | MASTER PACK | WEIGHT/C |
| CCN050 | 1/2" | 1.250 | 1.250 | 0.420 | 100 | 500 | 14.50 |
| CCN075 | 3/4" | 1.330 | 1.330 | 0.420 | 100 | 500 | 22.50 |
| CCN100 | 1" | 1.500 | 1.500 | 0.530 | 50 | 200 | 15.50 |
| CCN125 | 1-1/4" | 1.660 | 1.660 | 0.625 | 25 | 125 | 14.90 |
| CCN150 | 1-1/2" | 1.880 | 1.880 | 0.620 | 20 | 100 | 15.00 |
| CCN200 | 2" | 2.000 | 2.000 | 0.680 | 10 | 50 | 11.40 |
| CCN250 | 2-1/2" | 2.620 | 2.620 | 0.850 | - | 25 | - |
| CCN300 | 3" | 2.760 | 2.760 | 1.010 | - | 20 | - |
| CCN400 | 4" | 2.760 | 2.760 | 1.000 | - | 10 | - |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality zinc, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
