| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | COP |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Zinc Die Cast | Surface Finish: | Natural |
|---|---|---|---|
| Type: | Set Screw Type | Size: | 1/2" To 4" |
| Connection: | EMT To EMT Conduit | Section Shape: | Round |
| High Light: | Zinc Die Cast EMT Couplings,1/2 In EMT Couplings,Set Screw Type EMT Couplings |
||

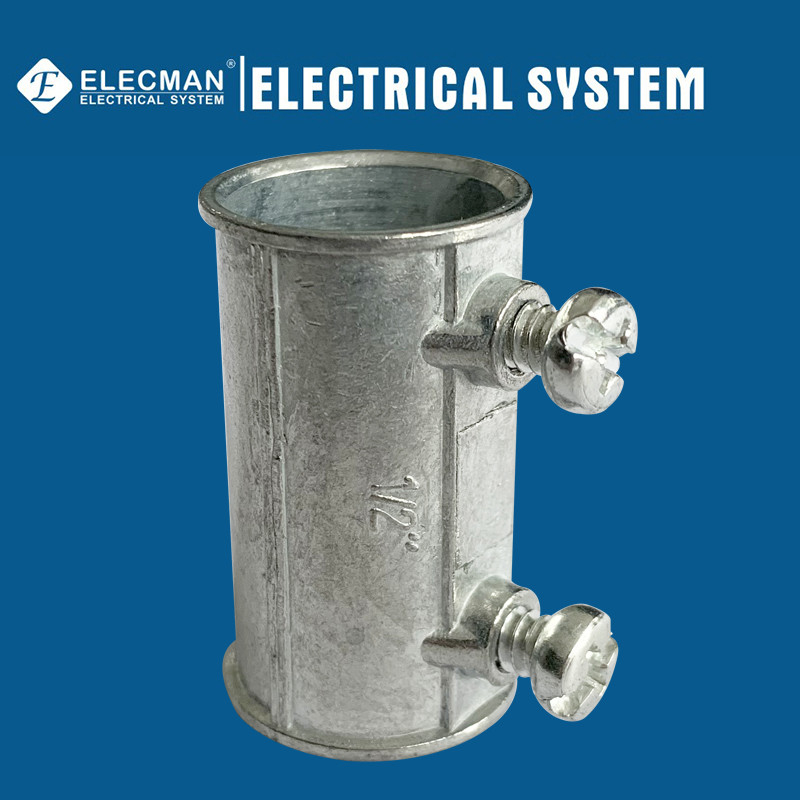

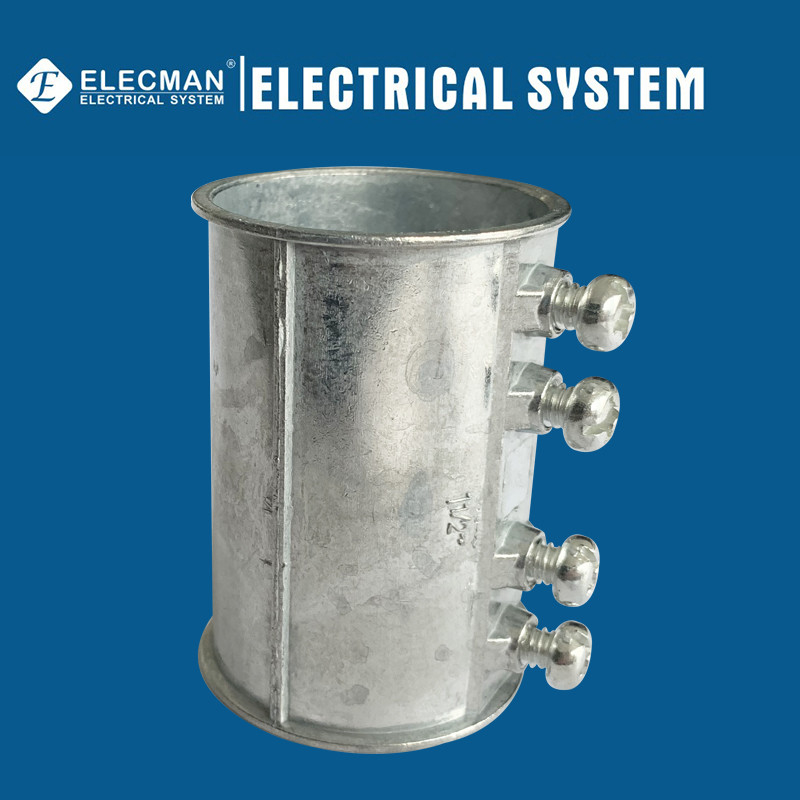

ELECMAN ® 1/2 in Zinc Die Cast EMT Coupling Set Screw Type UL Listed
Applications
ELECMAN® Zinc die cast EMT coupling feature set screw type assembly and provide secure, concrete tight protection when taped to connect ends of thin wall EMT conduit together. Durably constructed of corrosion resistant zinc die cast; available sizes from 1/2" to 4", 2-1/2" to 4" sizes suitable for use with both EMT and rigid conduit. Easy to secure diverse screw head ensures solid connection with a slotted head screwdriver; UL listed.
Features
Certifications and Compliances
ELECMAN® Zinc die cast EMT coupling set screw type shall be produced to the following specifications:
Specification Data
ELECMAN provides full size zinc die cast EMT coupling set screw type UL listed from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | INNER PACK | MASTER PACK | WEIGHT/C |
| COP050 | 1/2" | 1.520 | 0.920 | 100 | 500 | 10.00 |
| COP075 | 3/4" | 1.920 | 1.150 | 100 | 500 | 15.90 |
| COP100 | 1" | 2.000 | 1.430 | 50 | 250 | 10.50 |
| COP125 | 1-1/4" | 2.510 | 1.820 | 25 | 125 | 10.10 |
| COP150 | 1-1/2" | 2.850 | 2.050 | 20 | 100 | 10.00 |
| COP200 | 2" | 3.400 | 2.500 | 10 | 50 | 8.80 |
| COP250 | 2-1/2" | 4.200 | 3.300 | - | 25 | 7.00 |
| COP300 | 3" | 4.650 | 4.010 | - | 20 | 6.40 |
| COP400 | 4" | 5.470 | 5.010 | - | 10 | 5.30 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality zinc, the screws are made of steel, every part of the coupling are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
