| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | CON |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Zinc | Surface Finish: | Natural |
|---|---|---|---|
| Type: | Set Screw Type | Size: | 1/2" - 4" |
| Connection: | EMT Conduit To Box | Color: | Sliver |
| High Light: | Set Screw Type EMT Connectors,Straight Type EMT Connectors,Zinc EMT Connectors |
||

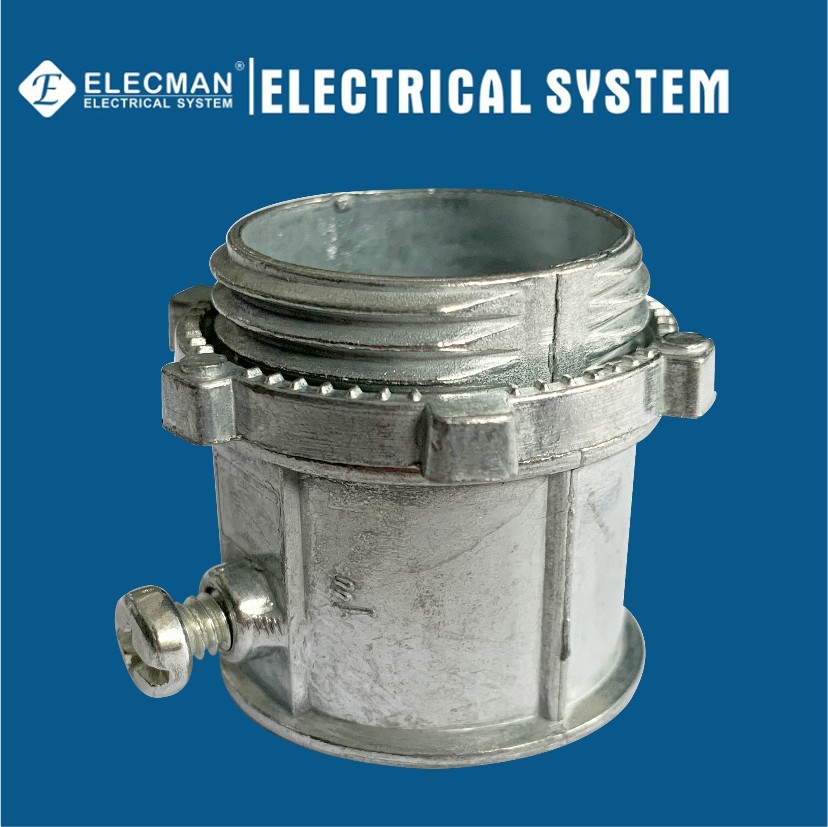

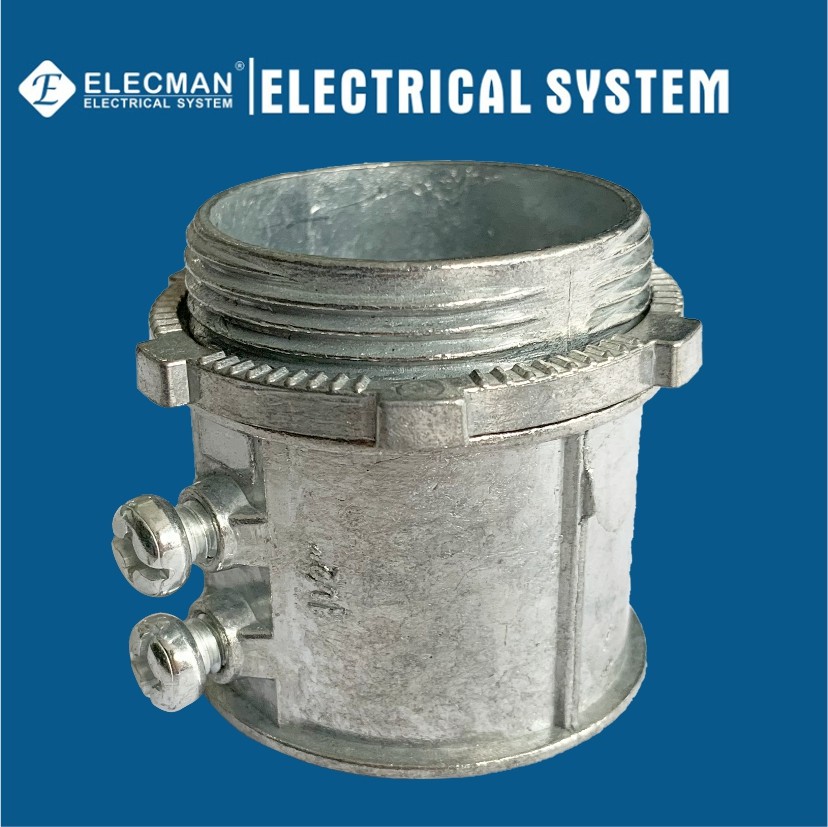

ELECMAN ® Zinc EMT Connectors Set Screw Straight Type EMT Fitting 1/2" - 4"
Application
ELECMAN® Zinc EMT connectors set screw straight type EMT fitting 1/2" - 4" is used to secure and terminate Electrical Metallic Tubing to an electrical junction box or metal enclosure with its pre-installed zinc conduit locknut.
ELECMAN® Zinc EMT straight set screw connector is use to couple, connect, fasten, or ground conduit or cables that keeps your production running smoothly. The EMT set screw connector is approved for concrete-tight protection when taped and is available in trade sizes 1/2" through 4". EMT connector set screw type sizes 2-1/2" to 4" is also suitable for RMC and IMC Conduits.
Features
Certifications and Compliances
ELECMAN® Zinc EMT connectors set screw straight type EMT fitting 1/2" - 4" shall be produced to the following specifications:
UL Listed
File No.: E513114
Specification Data
ELECMAN provides full size zinc EMT connectors set screw straight type EMT fitting from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | INNER PACK | MASTER PACK | WEIGHT/C |
| CON050 | 1/2" | 0.910 | 1.150 | 100 | 500 | 10.00 |
| CON075 | 3/4" | 1.190 | 1.270 | 100 | 500 | 15.50 |
| CON100 | 1" | 1.450 | 1.460 | 50 | 250 | 10.50 |
| CON125 | 1-1/4" | 1.760 | 1.850 | 25 | 125 | 10.00 |
| CON150 | 1-1/2" | 2.030 | 2.090 | 20 | 100 | 10.70 |
| CON200 | 2" | 2.550 | 2.350 | 10 | 50 | 7.80 |
| CON212 | 2-1/2" | 3.200 | 2.920 | - | 25 | 7.20 |
| CON300 | 3" | 3.910 | 2.950 | - | 20 | 7.30 |
| CON400 | 4" | 4.950 | 3.600 | - | 10 | 6.50 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality zinc, the screws are made of steel, every part of the connectors are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
