| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | CON |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Zinc Die Cast | Surface Finish: | Natural |
|---|---|---|---|
| Type: | Set Screw Type | Size: | 1/2" - 4" |
| Connection: | EMT Conduit To Box | Color: | Sliver |
| High Light: | Zinc Die Cast EMT Conduit Connectors,UL Standard EMT Conduit Connectors,3/4" EMT Conduit Connectors |
||

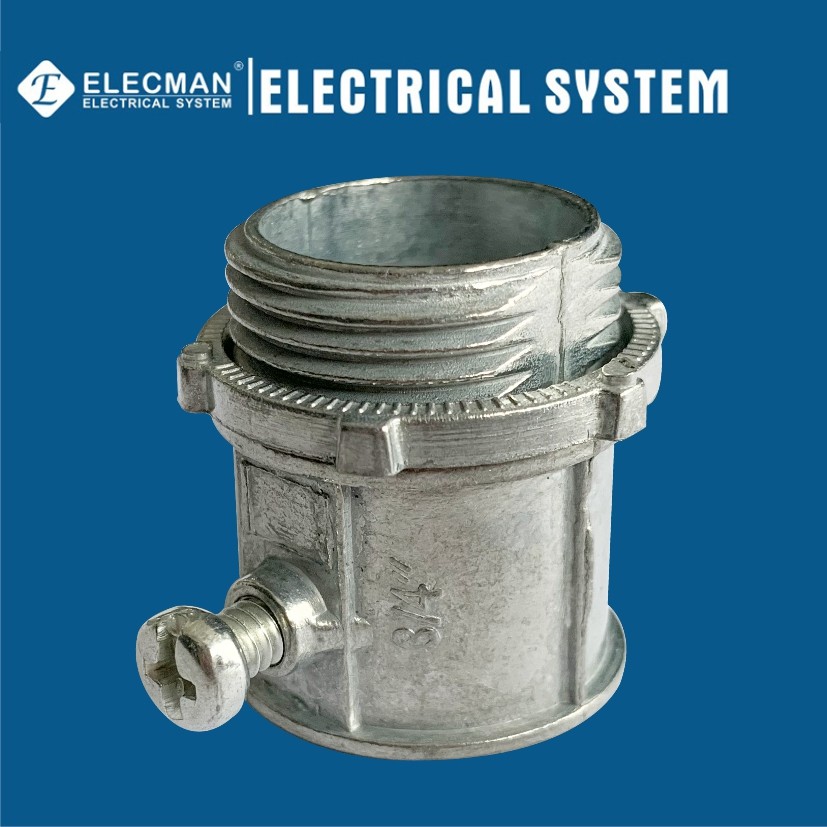

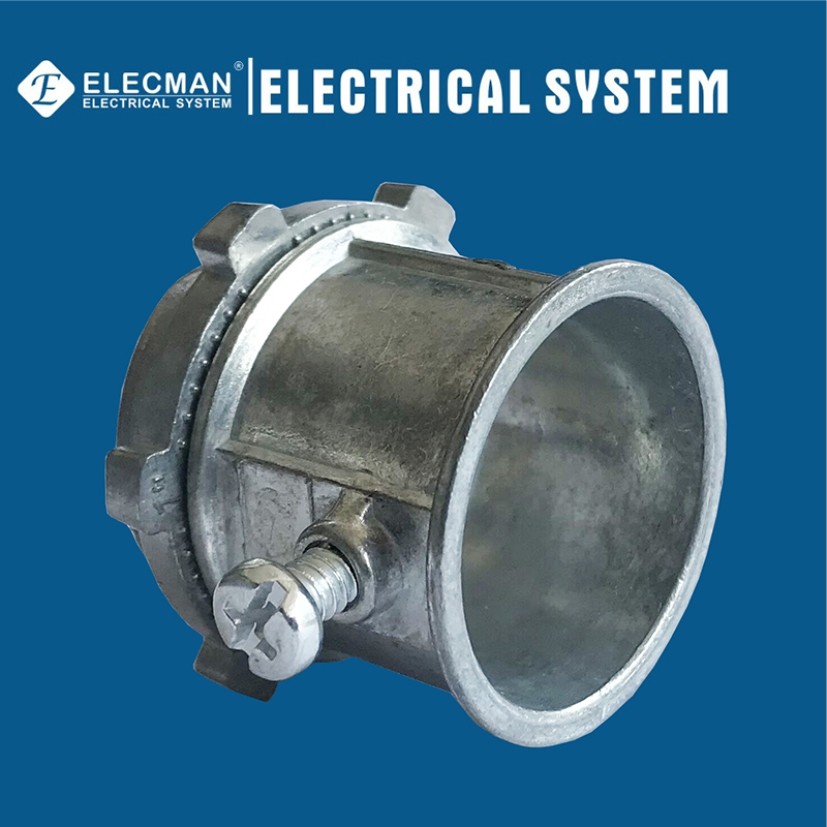

ELECMAN ® Zinc Die Cast EMT Conduit Connector Set Screw Type UL Standard
Application
ELECMAN® Zinc die cast EMT conduit connectors set screw type UL standard are used in dry locations to bond EMT conduit to electrical junction boxes or enclosures. EMT connectors provide concrete tight connections when taped and properly secured with the included locknut, and are rated for electrical applications above 600 volts. Their heavy gauge steel construction maintains mechanical protection and solid grounding of the conduit to the designated electrical junction box or enclosure.
Features
Certifications and Compliances
ELECMAN® Zinc die cast EMT conduit connectors set screw type shall be produced to the following specifications:
UL Listed
File No.: E513114
Specification Data
ELECMAN provides full size zinc die cast EMT conduit connectors set screw type UL standard from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | INNER PACK | MASTER PACK | WEIGHT/C |
| CON050 | 1/2" | 0.910 | 1.150 | 100 | 500 | 10.00 |
| CON075 | 3/4" | 1.190 | 1.270 | 100 | 500 | 15.50 |
| CON100 | 1" | 1.450 | 1.460 | 50 | 250 | 10.50 |
| CON125 | 1-1/4" | 1.760 | 1.850 | 25 | 125 | 10.00 |
| CON150 | 1-1/2" | 2.030 | 2.090 | 20 | 100 | 10.70 |
| CON200 | 2" | 2.550 | 2.350 | 10 | 50 | 7.80 |
| CON212 | 2-1/2" | 3.200 | 2.920 | - | 25 | 7.20 |
| CON300 | 3" | 3.910 | 2.950 | - | 20 | 7.30 |
| CON400 | 4" | 4.950 | 3.600 | - | 10 | 6.50 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality zinc, the screws are made of steel, every part of the connectors are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
