| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Model Number: | SCC |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Corrugated Carton |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Stainless Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Right Angle Type | Size: | 1/2 Inch - 4 Inch |
| Includes: | Hex Nuts, U-Bolts | Color: | Sliver |
| High Light: | Conduit Pipe Strut Clamps,Zinc Plated Strut Clamps,U Bolt Right Angle Conduit Clamps |
||

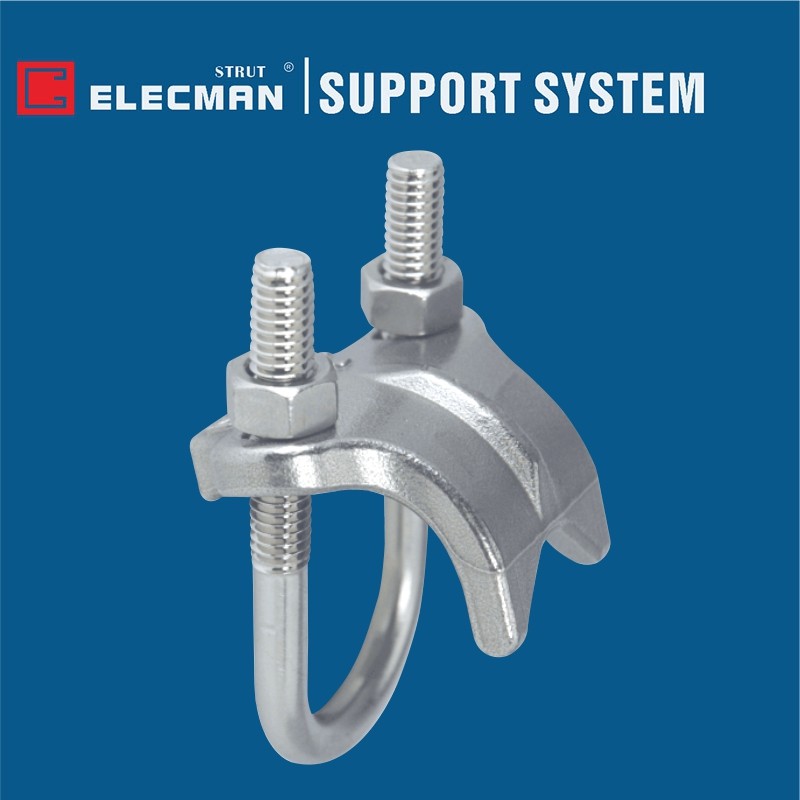

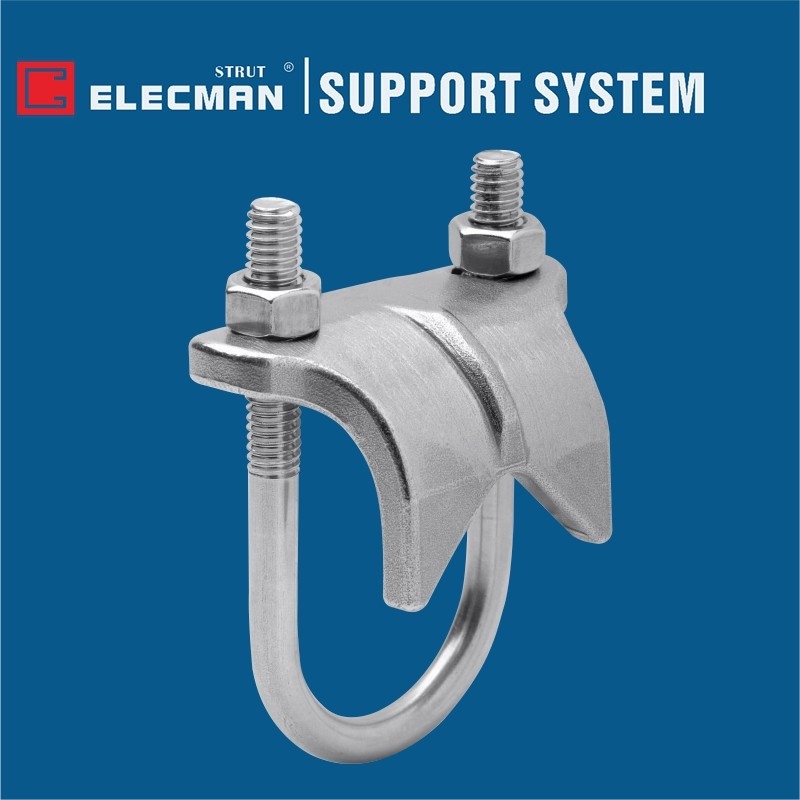

ELECMAN ® Stainless Steel U-Bolt Right Angle Conduit Clamp 1/2 Inch - 4 Inch
Applications
ELECMAN ® Stainless steel U-bolt right angle conduit clamps 1/2 inch - 4 inch are designed to fit rigid, IMC, EMT conduits. Can also be used for PVC-coated conduits. Right Angle Clamps are used to mount conduit to the flange of a structural member without drilling holes. Cast in 316 stainless steel, these clamps provide both excellent strength and corrosion resistance. This clamp is made for use in industries with corrosive environments such as chemical plants, petrochemical operations, pharmaceuticals and cosmetics, and pulp and paper mills.
Features
Specification Data
ELECMAN provides full size stainless steel U-bolt right angle conduit clamps.
| CAT # | Trade Size | A | B | C |
Weight(each) Per lb. |
| SCC050 | 1/2" | 50.8mm | 40.6mm | 6.2mm | 0.32 |
| SCC075 | 3/4" | 52.6mm | 40.6mm | 6.5mm | 0.35 |
| SCC100 | 1" | 65.8mm | 40.6mm | 6.5mm | 0.45 |
| SCC125 | 1-1/4" | 72.1mm | 40.6mm | 6.9mm | 0.50 |
| SCC150 | 1-1/2" | 84.6mm | 40.6mm | 6.9mm | 0.60 |
| SCC200 | 2" | 97.8mm | 42.9mm | 7.9mm | 0.95 |
| SCC250 | 2-1/2" | 116.3mm | 45.7mm | 8.4mm | 1.25 |
| SCC300 | 3" | 132.6mm | 47mm | 8.4mm | 1.45 |
| SCC400 | 4" | 157mm | 47mm | 8.4mm | 1.70 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the plugs body is made of high quality brass, every parts of the plugs are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.
