| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Model Number: | ES-7123 |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Corrugated Carton |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Malleable Iron | Surface Finish: | Zinc Electroplated |
|---|---|---|---|
| Type: | Single Screw, Two-Hole Type | Rod Size: | 1/4", 3/8", 1/2" |
| Color: | Sliver | Structure: | Suspension Clamp |
| High Light: | Malleable Iron pipe beam clamp,2 Hole pipe beam clamp,2 Hole heavy duty beam clamps |
||

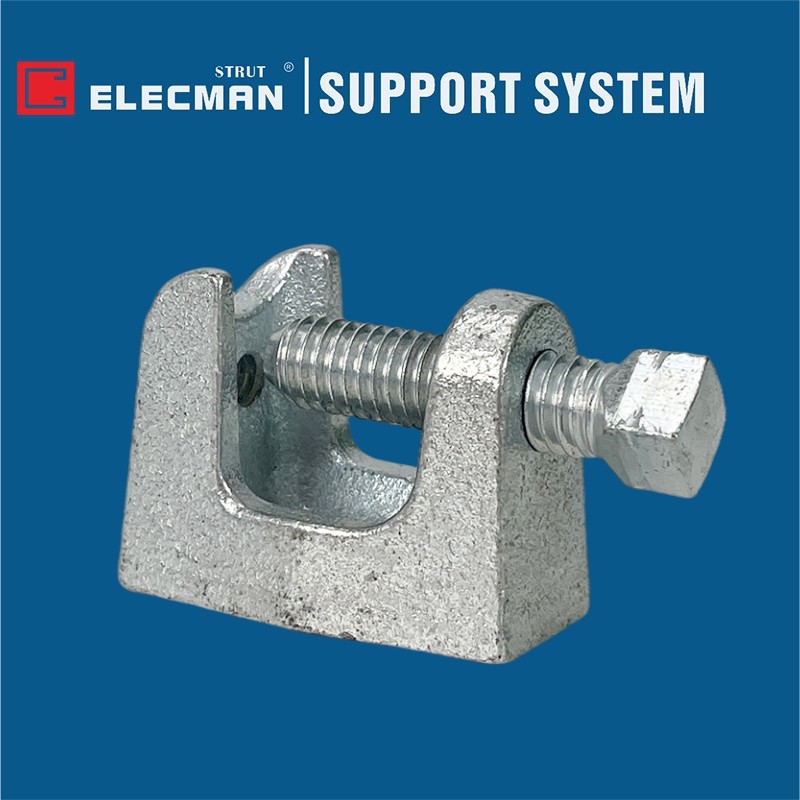

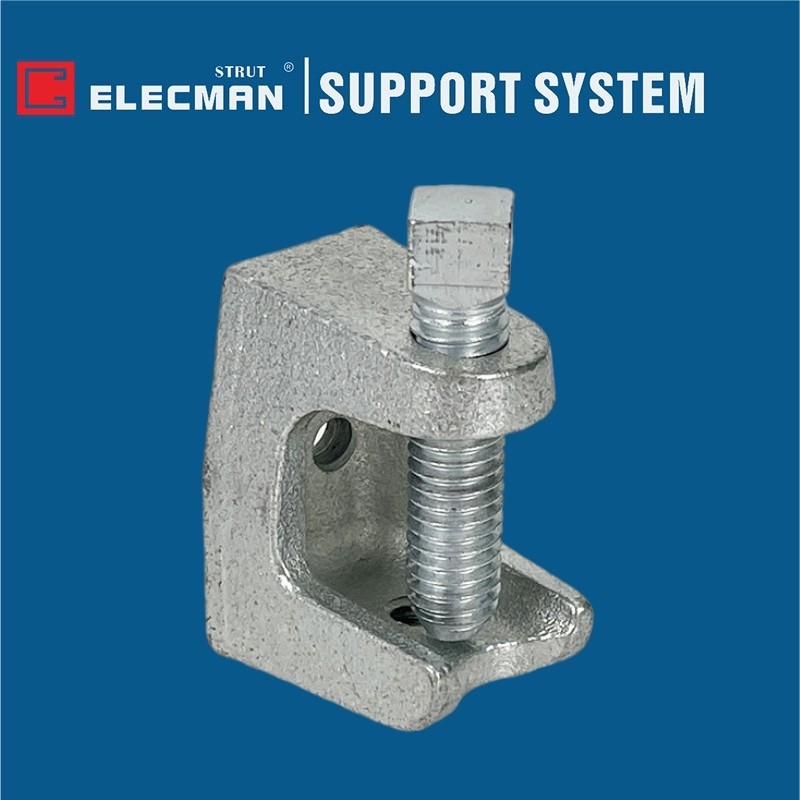

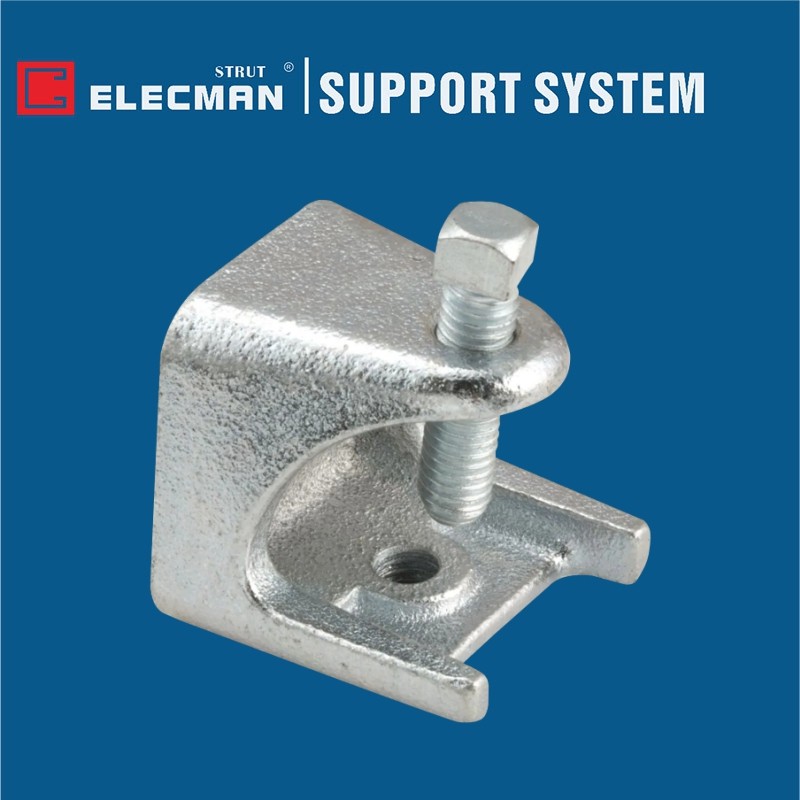

ELECMAN ® Malleable Iron Heavy Duty Single Screw Beam Clamps Two-Hole Type
Applications
ELECMAN ® Malleable iron heavy duty single screw beam clamps two-hole type feature single screw, two-hole assembly and are fabricated from high grade, long lasting malleable iron. Manufactured with precision to optimize functionality and dependability, appropriate for load capacities from 125 to 600 lbs.
Features
Specification Data
ELECMAN provides full size malleable iron heavy duty single screw beam clamps two-hole type.
| CAT # | Rod Size | A | B | Loading Rating |
| ES-7123 A | 1/4" | 1-1/8" | 1-1/4" | 150 |
| ES-7123 B | 3/8" | 2" | 2" | 350 |
| ES-7123 C | 1/2" | 2-5/8" | 2-1/4" | 400 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the plugs body is made of high quality brass, every parts of the plugs are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.
