| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Model Number: | ES-6098 |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Electro-Galvanized, Plain, Green, Stainless Steel, Aluminum, Hot-Dipped Galvanized |
|---|---|---|---|
| Type: | Eight Hole Type | Thickness: | 1/4" |
| Shape: | Double-Wing Shape | Color: | Sliver |
| High Light: | Double Wing aluminum channel connectors,8 Hole aluminum channel connectors,Galvanised strut channel connectors |
||

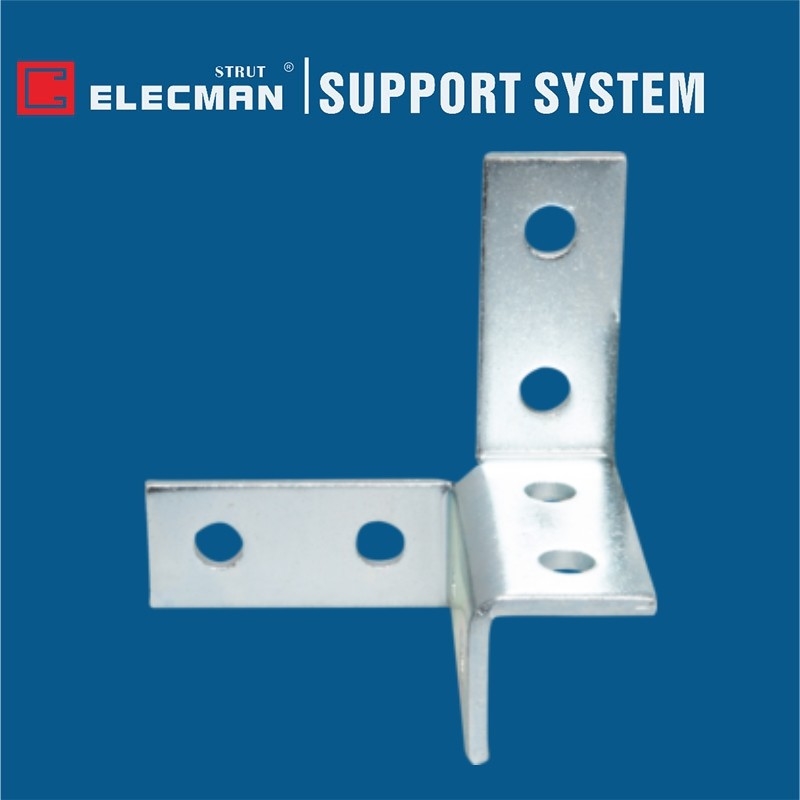

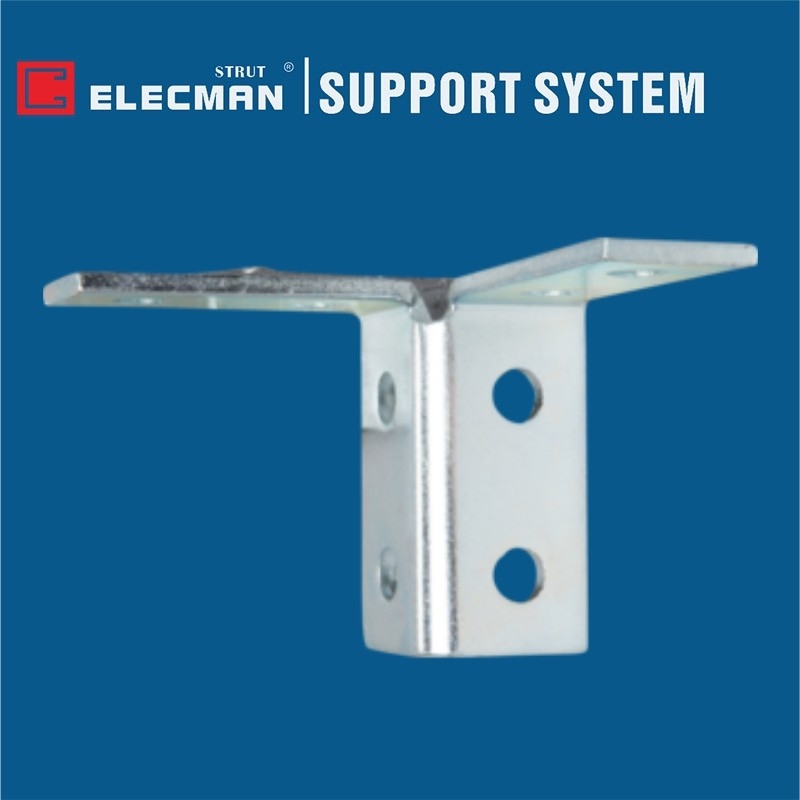

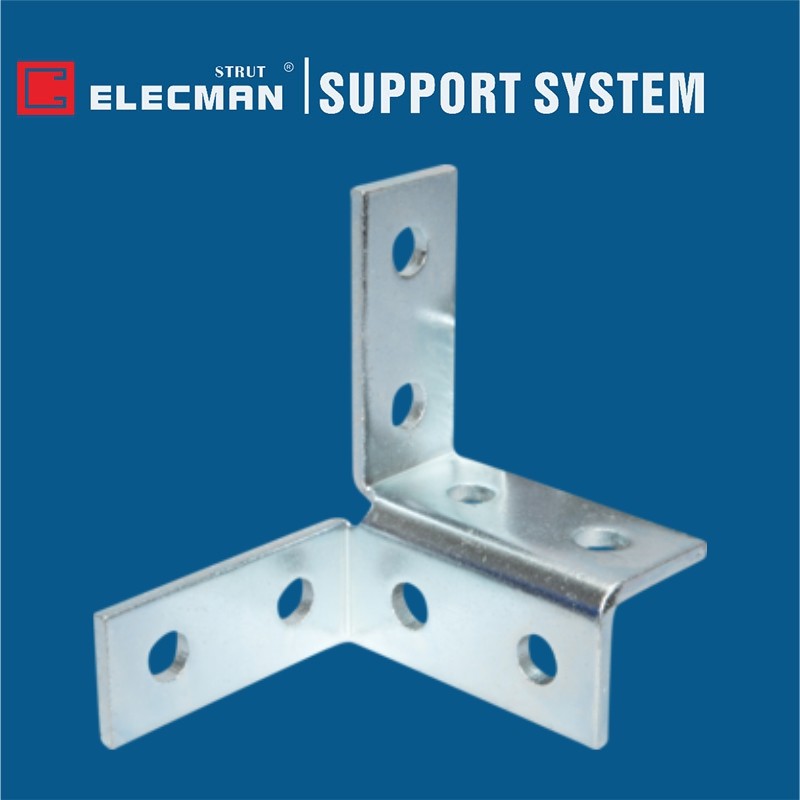

ELECMAN ® Galvanized Steel Eight Hole Double-Wing Strut Channel Corner Connector
Applications
ELECMAN ® Galvanized steel eight hole double-wing strut channel corner connector allows you to connect two perpendicular pieces of strut channel to a central channel.
Features
Specification Data
ELECMAN provides full size galvanized steel eight hole double-wing strut channel corner connectors.
| Cat.# | Height | Width | Thickness | Hole Diameter | Hole Spacing End Distance | Hole Spacing Center to Center |
| ES-6098 | 3-7/8" | 1-5/8" | 1/4" | 9/16" | 13/16" | 1-7/8" |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the plugs body is made of high quality brass, every parts of the plugs are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.
