| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Model Number: | ES-6006 |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Electro-Galvanized, Plain, Green, Stainless Steel, Aluminum, Hot-Dipped Galvanized |
|---|---|---|---|
| Type: | Four Holes Type | Size: | 7-1/4" * 1-5/8" |
| Shape: | Rectangular | Thickness: | 1/4" |
| High Light: | Plain Strut Flat Fittings,2x4 Strut Flat Fittings,Galvanized 2x4 splice plates |
||

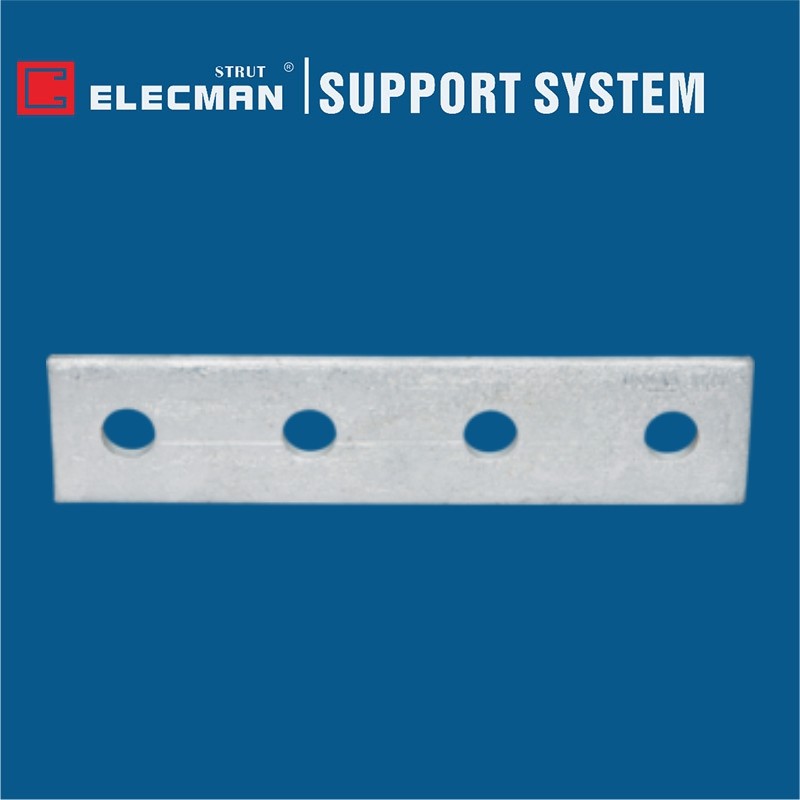

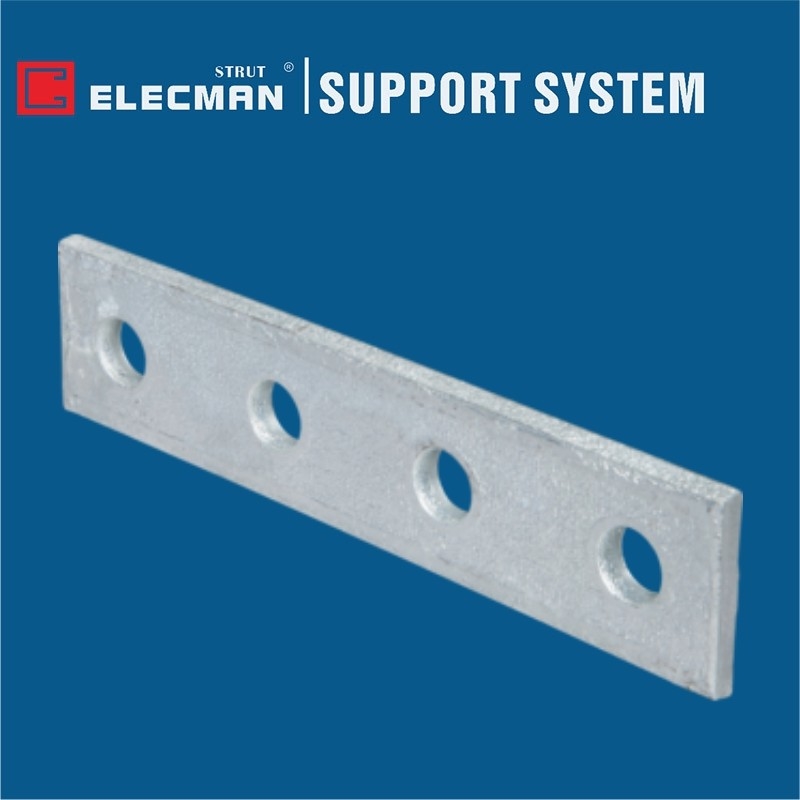

ELECMAN ® Galvanized Steel Flat Four Holes Splice Plate 7-1/4" * 1-5/8"
Applications
ELECMAN ® Galvanized steel flat four holes splice plate is designed to fit with all 1-5/8" wide channels. Flat Plates are manufactured from 1/4" thick carbon steel, 1-5/8" wide, all holes are 9/16" diameter, spaced 1-7/8" on center and 13/16" from the end.
Features
Specification Data
ELECMAN provides full size galvanized steel flat two holes splice plate 7-1/4" * 1-5/8".
| Cat.# | Length | Width | Thickness | Hole Diameter | Hole Spacing End Distance | Hole Spacing Center to Center |
| ES-6006 | 7-1/4" | 1-5/8" | 1/4" | 9/16" | 13/16" | 1-7/8" |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the plugs body is made of high quality brass, every parts of the plugs are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.
