| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Model Number: | ES-201 |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Bundles with Woven Bag |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel（Q235） | Surface Finish: | PG/HDG/EG/Powder Coated/Plain/Aluminum/Stainless Steel |
|---|---|---|---|
| Type: | Plain Type | Size: | 1-5/8" * 3-1/4"（41*82mm） |
| Standard Lengths: | 10"(3.05 M) & 20"(6.09 M) | Thickness: | 12 Ga(2.6mm) |
| High Light: | ELECMAN Strut C Channels,12 ga Strut C Channels,Galvanised strut channel systems |
||

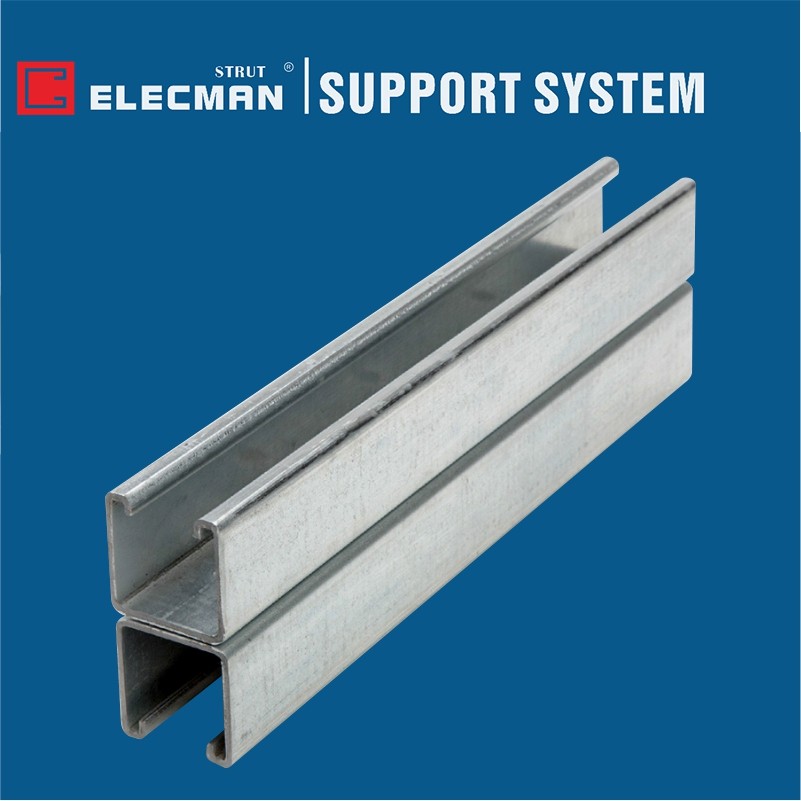

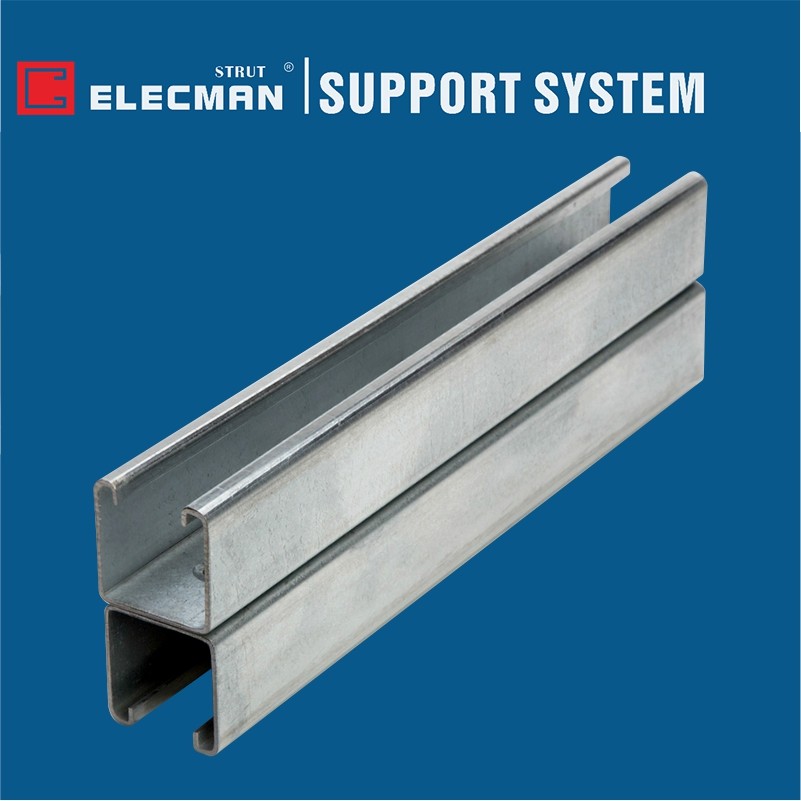

ELECMAN ® 1-5/8" * 3-1/4"(41*82mm) Galvanized Steel Strut Channel ES-201
Applications
ELECMAN® 1-5/8" * 3-1/4"(41*82mm) galvanized steel strut channel ES-201 are basically the material that is used to provide structural support to wires, piping and any other kind of related equipment in buildings. These channels are mainly used for air conditioning, heat ventilation, or HVAC applications for suspending the equipment from the roof or ceiling.
Features
The main advantage of strut channel in construction is that there are many options available for rapidly and easily connecting lengths together and other items to the strut channel, using various specialized strut-specific fasteners and bolts.It can be assembled very rapidly with minimal tools and only moderately trained labor, which reduces costs significantly in many applications.A strut channel installation also can often be modified or added-to relatively easily if needed.
Specification Data
ELECMAN provides full size 1-5/8" * 3-1/4"(41*82mm) galvanized steel strut channel ES-201.
| Section Properties | 1-1 AXIS | 2-2 AXIS | ||||||
| Cat.# | WT/FT | AREA | Ix | Sx | Rx | Iy | Sy | Ry |
| LBS. | SQ.IN. | in⁴ | in³ | in | in⁴ | in³ | in | |
| ES-201 | 3.76 | 1.105 | 0.925 | 0.569 | 0.915 | 0.469 | 0.577 | 0.651 |
| Allowable Beam Loads - Span In Inches | ||||||||||||
| Cat.# | STRESS | 24" | 30" | 36" | 42" | 48" | 60" | 72" | 84" | 96" | 108" | 120" |
| ES-201 | 1/240 | 2550 | 2550 | 2550 | 2550 | 2370 | 1900 | 1580 | 1360 | 1190 | 1050 | 950 |
| *** | *** | *** | *** | *** | *** | *** | 1260 | 960 | 760 | 620 | ||
| 1.TOTAL STATIC LOAD in LBS. 2.Upper line is MAXIMUM ALLOWABLE UNIFORM LOAD creating 25000 PSI Bending Stress about the X-Axis based on SIMPLE BEAM condition. 3.Lower line shows TOTAL UNIFORM LOAD which produces a deflection of 1/240th of the SPAN(i.e.: ½. Def. for 120" Span ) 4.Multiply values in upper line by 0.5 to obtain ALLOWABLE CENTER CONCENTRATED LOAD at 25000 PSI Stress. Deflection by 0.8. 5.* Load limited by spot weld shear. 6.For punched channel, reduce weld limited loads by 0.75 due to 4" weld spacing. 7.*** Load controlled by 25,000 PSI design stress. |
||||||||||||
| Allowable Column Loads - Unsupported Height of Column in Inches | ||||||||||||
| Cat.# | 24" | 30" | 36" | 42" | 48" | 60" | 72" | 84" | 96" | 108" | 120" | |
| ES-201 | 21995 | 21445 | 20840 | 20045 | 19170 | 17220 | 15105 | 12940 | 10820 | 8820 | 7145 | |
|
1. COLUMN LOADS are allowable axial loads applied at the section centroid. Loads applied at the slot face must be reduced for eccentricity. 2. ALLOWABLE COLUMN LOADS shown are based upon an effective length factor K=0.8 standard engineering practice required for evaluation of other conditions. |
||||||||||||
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help customers to stock the products well for a longer time. ELECMAN® Strut channels are usually packed in bundles, small bundles or big bundles are both available. ELECMAN can follow any packing requirements of customers.
