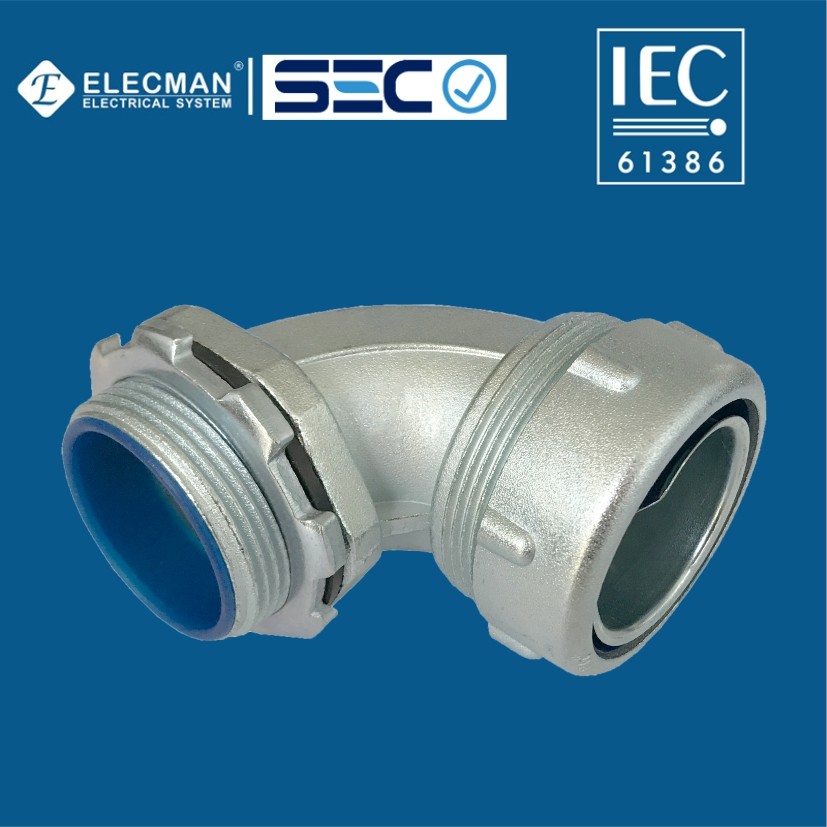

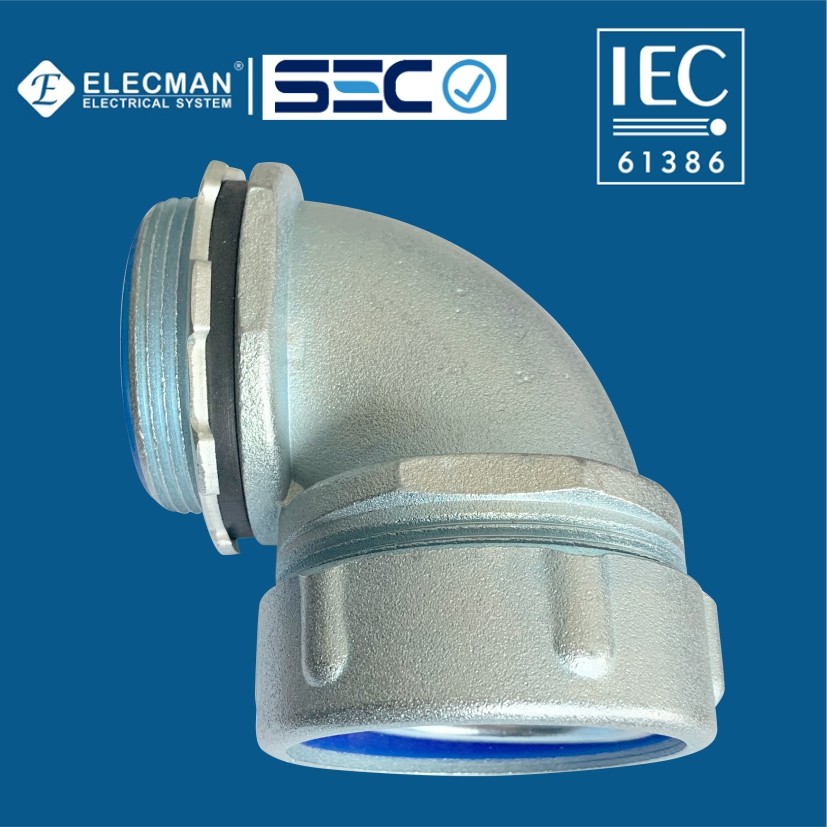

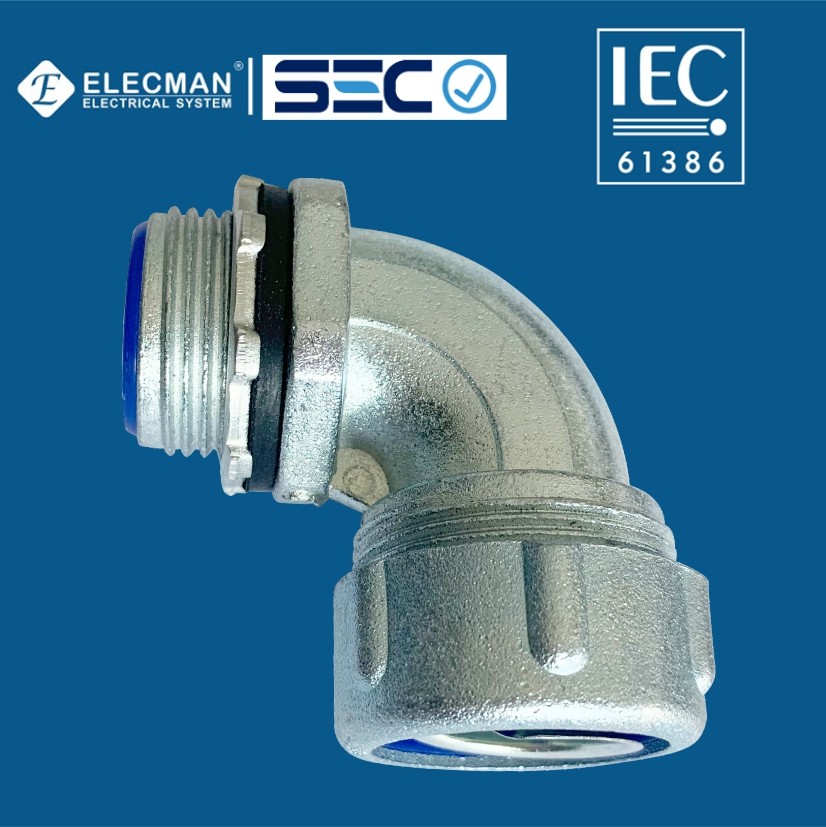

IEC 61386 90 Degree Liquid Tight Angle Connector Zinc For Flexible Conduit

ELECMAN ® IEC 61386 Zinc Liquid Tight Connector 90 Degree Flexible Conduit To Box Type

Applications

ELECMAN® IEC 61386 zinc liquid tight connectors 90 degree flexible to box type are used to terminate and seal liquid tight flexible metal conduit, at 90° angle to either oli tight, liquid tight or rain tight box or enclosure. IEC liquid tight connectors available with an insulated throat for added protection for conduit sizes from 20mm to 110mm.

Features

• 90° component type connectors.
• Assembled with zinc die cast locknut, insulated throat and sealing washer.
• Threaded ends ( METRIC ).
• Manufactured in accordance with IEC61386-21.
• Sealing washer provides a liquidtight seal when terminating the connector in a threadless opening.
• Insulated throat protects against abrasion damage.

Certifications and Compliances

ELECMAN® IEC 61386 zinc liquid tight connectors 90 degree flexible to box type are produced to the following specifications:

• IEC 61386-21 standard.
• Compliance with Chile SEC certification.

Specification Data

ELECMAN provides full size IEC 61386 zinc liquid tight connectors 90 degree flexible to box type from 20mm-110mm.

Quality Control

ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality zinc, every parts of the connector are produced according to the high standard.

Packing Information

Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.
