| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | RST |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Two Holes Type | Size: | 1/2" - 4" |
| Connection: | Snap In | Color: | Sliver |
| High Light: | 2 Holes IMC Rigid Conduit Fittings,IMC Rigid Conduit Fittings Strap,2 Holes rigid conduit strap |
||

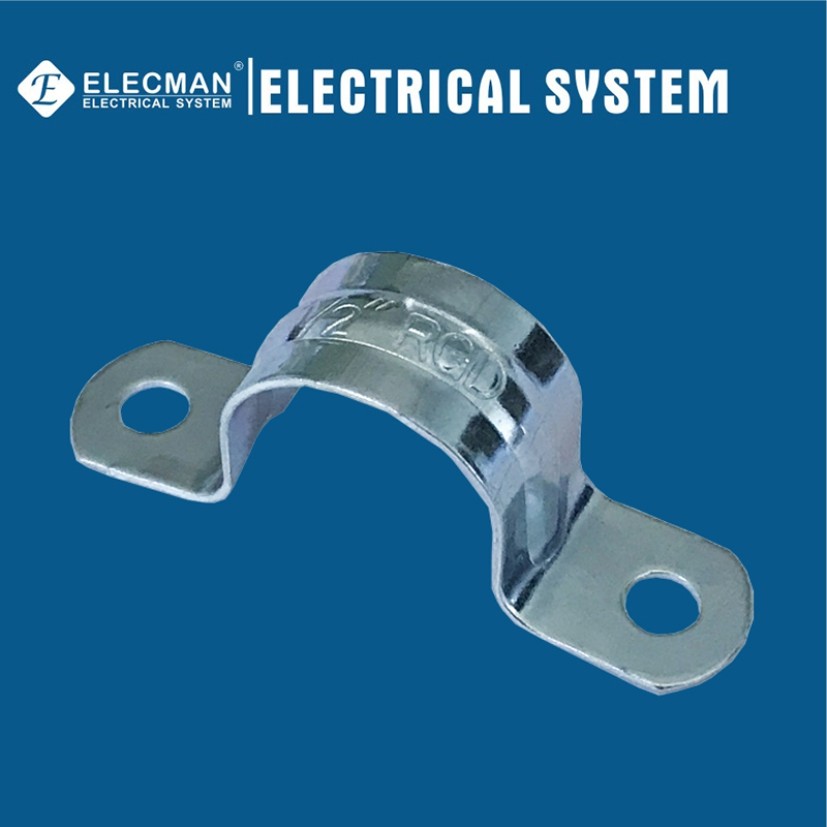

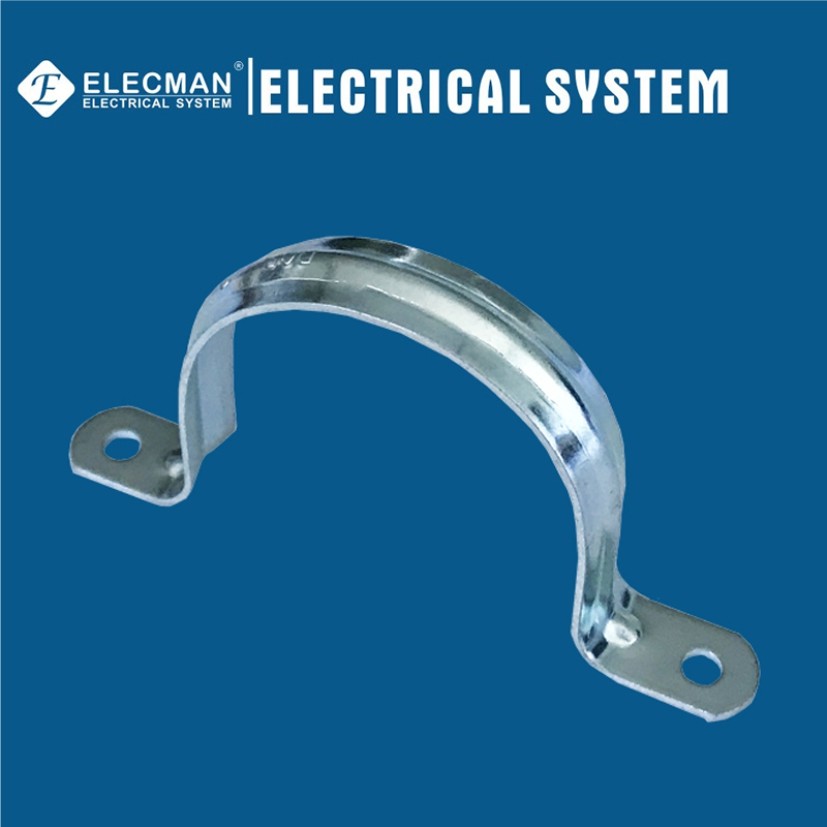

ELECMAN ® 1/2" - 4" Galvanized Steel IMC/Rigid Conduit Strap Two Holes Type
Applications
ELECMAN® Galvanized steel IMC/Rigid conduit straps two hole type are used to securely fasten and support IMC or Rigid conduits to a mounting surface.
Features
Certifications and Compliances
ELECMAN® Galvanized steel IMC/Rigid conduit strap two holes type shall be produced to the following specification:
Specification Data
ELECMAN provides full size galvanized steel IMC/Rigid conduit straps two hole type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | Hole Diameter | Hole Spacing |
| RST050 | 1/2" | 2.240 | 0.574 | 0.732 | 3/16" | 1-13/16" |
| RST075 | 3/4" | 2.756 | 0.636 | 0.965 | 3/16" | 2-3/16" |
| RST100 | 1" | 3.252 | 0.713 | 1.157 | 1/4" | 2-9/16" |
| RST125 | 1-1/4" | 3.831 | 0.748 | 1.453 | 1/4" | 3-3/16" |
| RST150 | 1-1/2" | 4.323 | 0.791 | 1.975 | 1/4" | 3-3/8" |
| RST200 | 2" | 4.925 | 1.004 | 2.205 | 3/8" | 4-1/4" |
| RST250 | 2-1/2" | 6.106 | 1.004 | 2.969 | 3/8" | 5" |
| RST300 | 3" | 6.772 | 1.004 | 3.539 | 3/8" | 5-1/2" |
| RST350 | 3-1/2" | 7.425 | 1.004 | 4.110 | 7/16" | 6-3/16" |
| RST400 | 4" | 9.366 | 1.016 | 4.508 | 7/16" | 6-13/16" |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the strap body is made of high quality steel, every part of the strap are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for IMC/Rigid conduit fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 4", ELECMAN provides plastic packing inside the outer box.
