| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | MCN |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Malleable Iron Body/Plastic Insulator/Aluminum Lug/Steel Clamping Screw/Steel Set Screw | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Insulated, With Aluminum Lug | Size: | 1/2" - 6" |
| Section Shape: | Round | Connection: | Threaded |
| High Light: | 6" IMC Rigid Conduit Fittings,5" IMC Rigid Conduit Fittings,6" threaded grounding bushing |
||

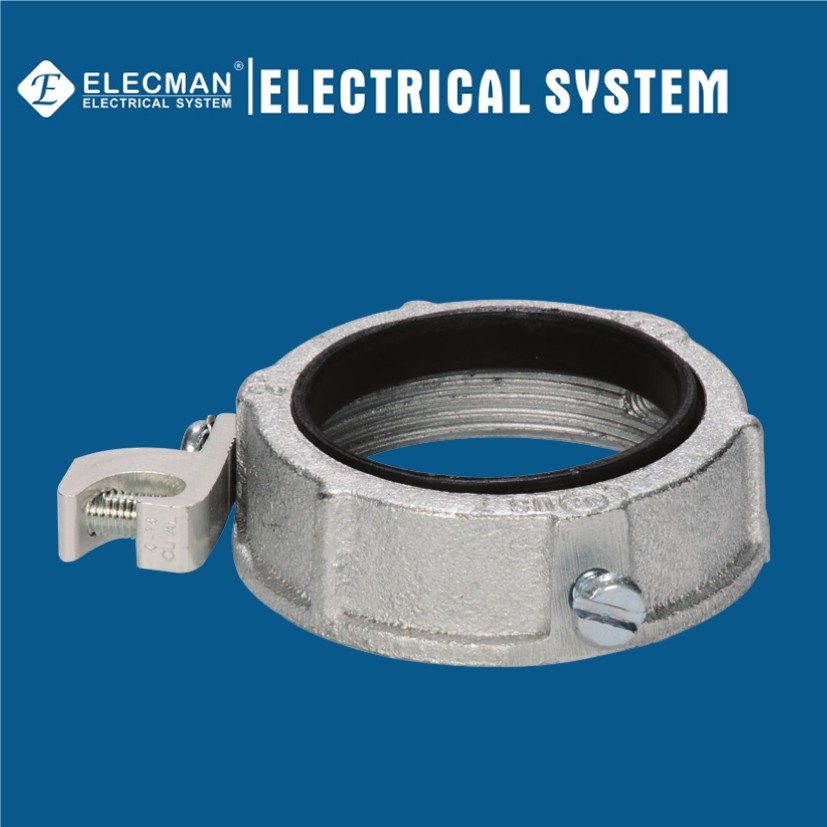

ELECMAN ® Malleable Iron Insulated Grounding IMC/Rigid Conduit Bushing With Aluminum Lug
Applications
ELECMAN® Malleable iron insulated grounding IMC/Rigid conduit bushing with aluminum lug is used with threaded IMC/Rigid conduit to provide a means of grounding conduit through an insulated bushing.
Features
Certifications and Compliances
ELECMAN® Malleable iron insulated grounding IMC/Rigid conduit bushing with aluminum lug shall be produced to the following specification:
Specification Data
ELECMAN provides full size Malleable iron insulated grounding IMC/Rigid conduit bushing with aluminum lug from 1/2" to 6".
| Cat. # | Trade Size | Grounding Lug Wire Size | |
| Min | Max | ||
| ZGB050 | 1/2" | 14 | 4 |
| ZGB075 | 3/4" | 14 | 4 |
| ZGB100 | 1" | 14 | 4 |
| ZGB125 | 1-1/4" | 14 | 4 |
| ZGB150 | 1-1/2" | 14 | 4 |
| ZGB200 | 2" | 14 | 4 |
| ZGB250 | 2-1/2" | 14 | 1/0 |
| ZGB300 | 3" | 14 | 1/0 |
| ZGB400 | 4" | 14 | 1/0 |
| ZGB500 | 5" | 6 | 250MCM |
| ZGB600 | 6" | 6 | 250MCM |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the bushing body is made of high quality malleable iron, the screws are made of steel, every parts of the bushing are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for IMC/Rigid conduit fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 2", ELECMAN provides plastic packing inside the outer box.
