| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | MCN |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Malleable Iron | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Male | Size: | 1/2" - 4" |
| Connection: | Rigid To Box | Color: | Sliver |
| High Light: | Malleable Threaded 2 rigid conduit nipple,Malleable 2 rigid conduit nipple,Malleable threaded conduit nipple |
||

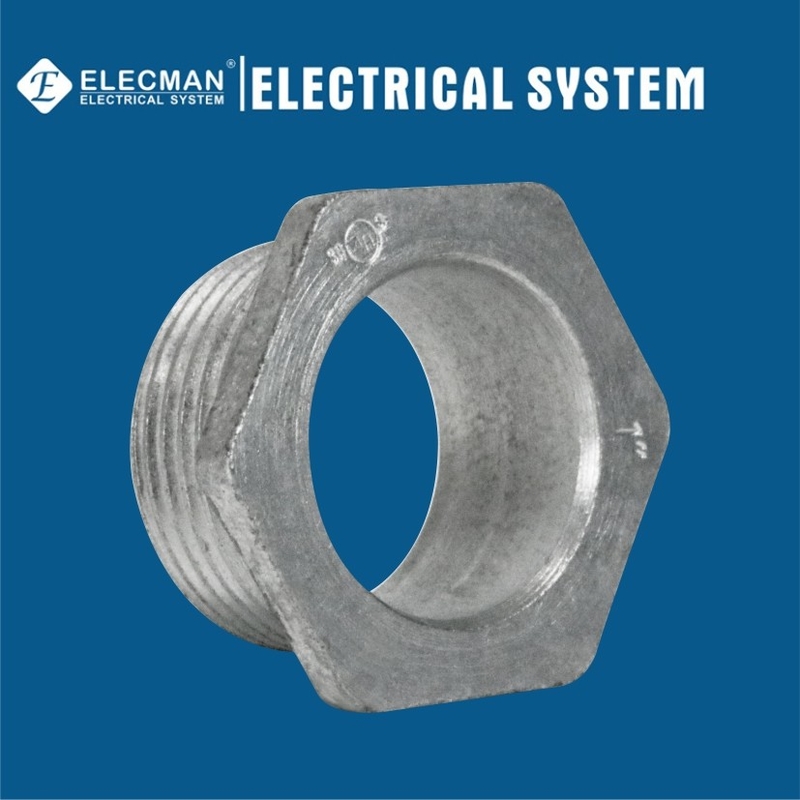

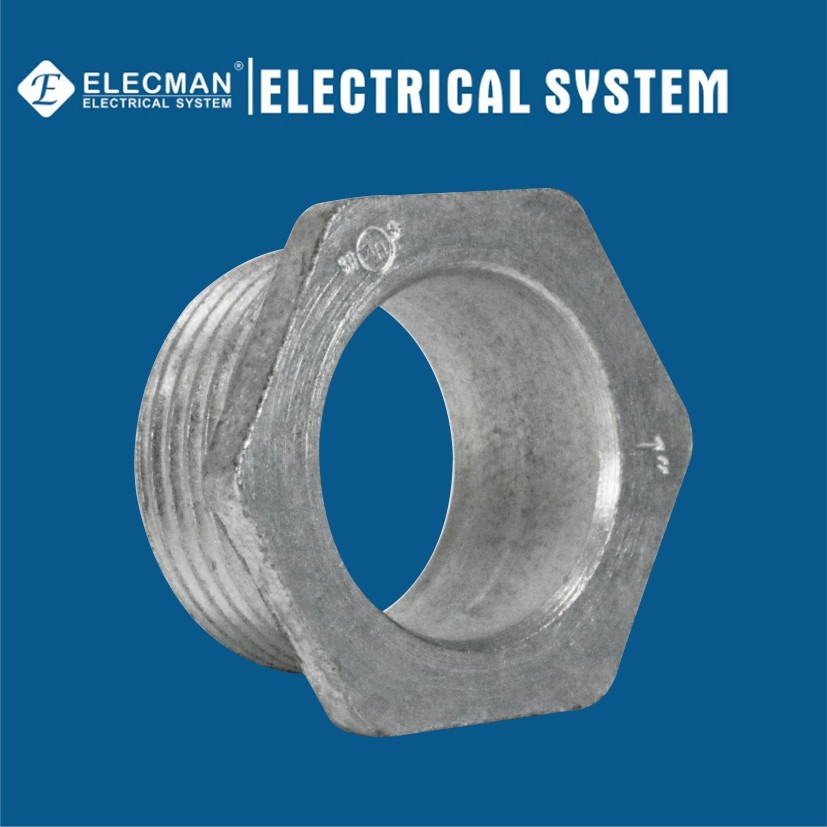

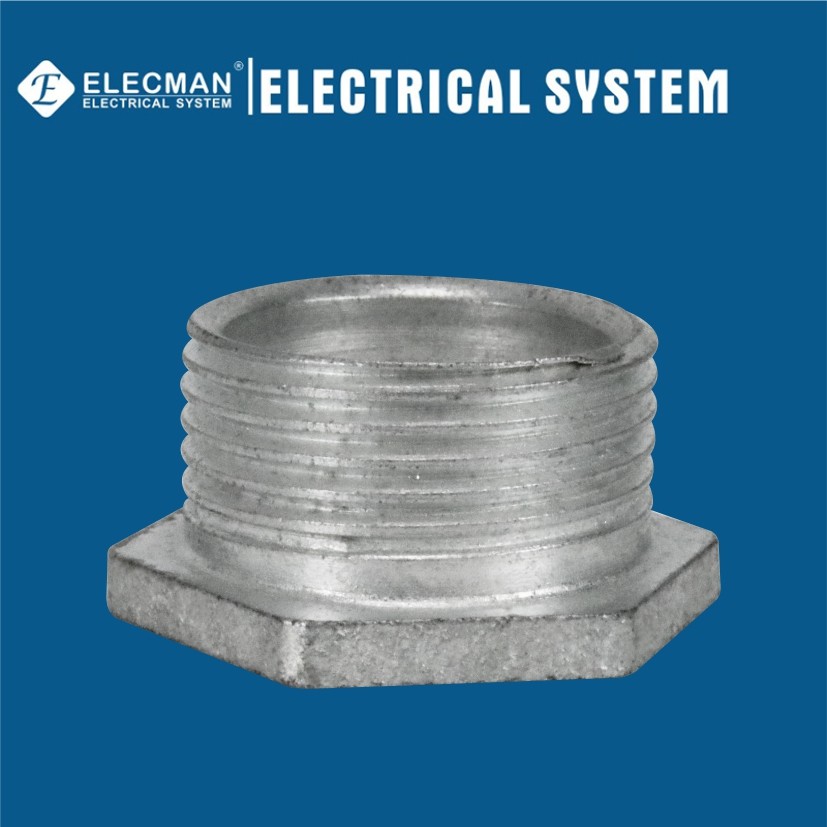

ELECMAN ® 1/2" - 4" Malleable Iron Rigid Conduit Nipple Threaded Connection
Applications
ELECMAN® Malleable iron Rigid conduit nipples threaded connection are used to terminate threaded conduit to a knock-out outlet box or metal enclosure where space is limited in wet or dry locations.
Features
Certifications and Compliances
ELECMAN® Malleable iron Rigid conduit nipples threaded connection shall be produced to the following specification:
Specification Data
ELECMAN provides full size malleable iron Rigid conduit nipples threaded connection from 1/2" to 4".
| Cat. # | Trade Size |
| MCN050 | 1/2" |
| MCN075 | 3/4" |
| MCN100 | 1" |
| MCN125 | 1-1/4" |
| MCN150 | 1-1/2" |
| MCN200 | 2" |
| MCN250 | 2-1/2" |
| MCN300 | 3" |
| MCN350 | 3-1/2" |
| MCN400 | 4" |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the nipple body is made of high quality malleable iron, every parts of the nipple are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for IMC/Rigid conduit fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 4", ELECMAN provides plastic packing inside the outer box.
