| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | CNL |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | NPT Thread | Size: | 1/2" - 4" |
| Color: | Sliver | Section Shape: | Round |
| High Light: | 4" IMC rigid conduit nipple,Metal IMC rigid conduit nipple,4" IMC metal conduit nipple |
||

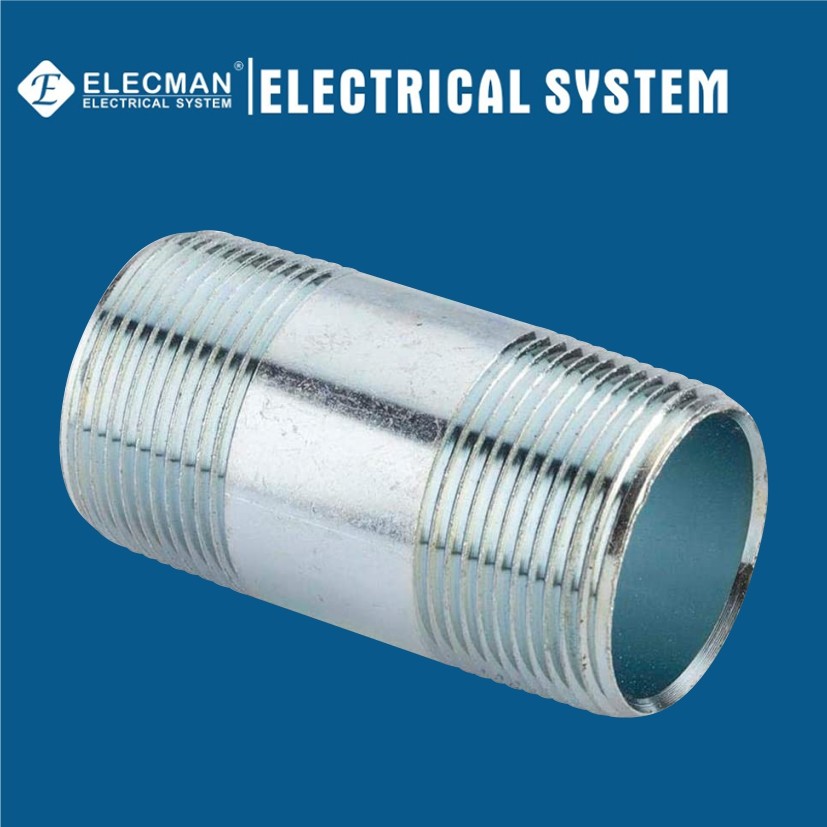

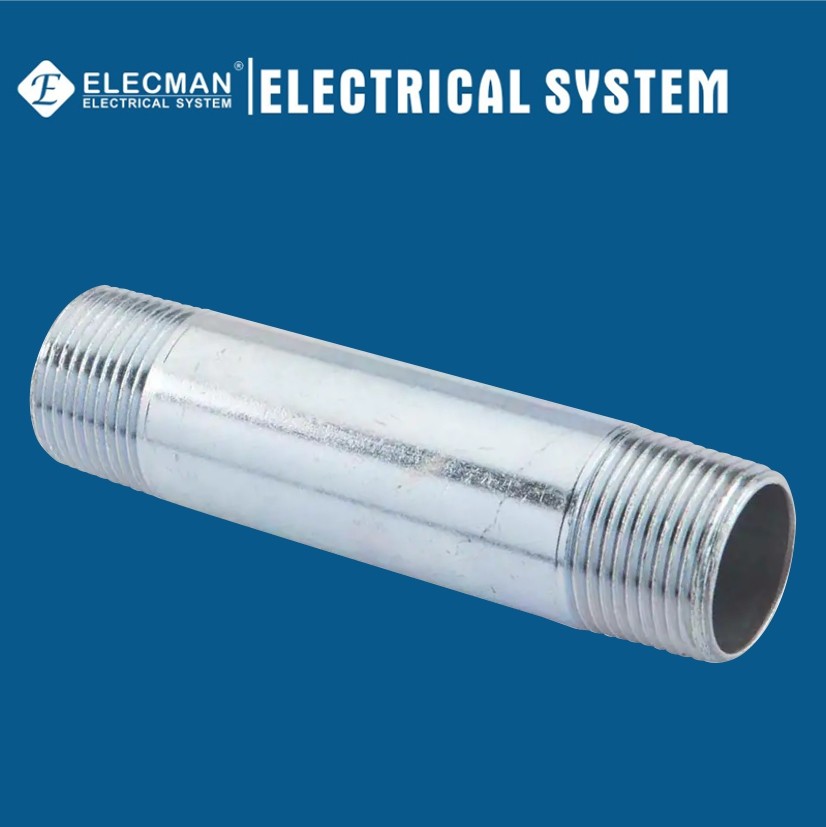

ELECMAN ® 1/2" - 4" Steel IMC/Rigid Conduit Nipple Threaded Connection
Applications
ELECMAN® Steel IMC/Rigid conduit nipple threaded connection are used to extend a length of threaded IMC/Rigid conduits and to connect two steel outlet boxes or metal enclosures in wet or dry locations.
Features
Certifications and Compliances
ELECMAN® Steel IMC/Rigid conduit nipple threaded connection shall be produced to the following specification:
Specification Data
ELECMAN provides full size Steel IMC/Rigid conduit nipples threaded connection from 1/2" to 4".
| Cat. # | Size | Length Inches | Cat. # | Size | Length Inches |
| CNL1000 | 1/2" | close | CNL2000 | 3/4" | close |
| CNL1150 | 1/2" | 1-1/2" | CNL2150 | 3/4" | 1-1/2" |
| CNL1200 | 1/2" | 2" | CNL2200 | 3/4" | 2" |
| CNL1250 | 1/2" | 2-1/2" | CNL2250 | 3/4" | 2-1/2" |
| CNL1300 | 1/2" | 3" | CNL2300 | 3/4" | 3" |
| CNL1350 | 1/2" | 3-1/2" | CNL2350 | 3/4" | 3-1/2" |
| CNL1400 | 1/2" | 4" | CNL2400 | 3/4" | 4" |
| CNL1500 | 1/2" | 5" | CNL2500 | 3/4" | 5" |
| CNL1600 | 1/2" | 6" | CNL2600 | 3/4" | 6" |
| CNL1800 | 1/2" | 8" | CNL2800 | 3/4" | 8" |
| CNL11000 | 1/2" | 10" | CNL21000 | 3/4" | 10" |
| CNL11200 | 1/2" | 12" | CNL21200 | 3/4" | 12" |
| Cat. # | Size | Length Inches | Cat. # | Size | Length Inches |
| CNL3000 | 1" | close | CNL4000 | 1-1/4" | close |
| CNL3200 | 1" | 2" | CNL4200 | 1-1/4" | 2" |
| CNL3250 | 1" | 2-1/2" | CNL4250 | 1-1/4" | 2-1/2" |
| CNL3300 | 1" | 3" | CNL4300 | 1-1/4" | 3" |
| CNL3350 | 1" | 3-1/2" | CNL4350 | 1-1/4" | 3-1/2" |
| CNL3400 | 1" | 4" | CNL4400 | 1-1/4" | 4" |
| CNL3500 | 1" | 5" | CNL4500 | 1-1/4" | 5" |
| CNL3600 | 1" | 6" | CNL4600 | 1-1/4" | 6" |
| CNL3800 | 1" | 8" | CNL4800 | 1-1/4" | 8" |
| CNL31000 | 1" | 10" | CNL41000 | 1-1/4" | 10" |
| CNL31200 | 1" | 12" | CNL41200 | 1-1/4" | 12" |
| Cat. # | Size | Length Inches | Cat. # | Size | Length Inches |
| CNL5000 | 1-1/2" | close | CNL6000 | 2" | close |
| CNL5200 | 1-1/2" | 2" | CNL6250 | 2" | 2-1/2" |
| CNL5250 | 1-1/2" | 2-1/2" | CNL6300 | 2" | 3" |
| CNL5300 | 1-1/2" | 3" | CNL6350 | 2" | 3-1/2" |
| CNL5350 | 1-1/2" | 3-1/2" | CNL6400 | 2" | 4" |
| CNL5400 | 1-1/2" | 4" | CNL6500 | 2" | 5" |
| CNL5500 | 1-1/2" | 5" | CNL6600 | 2" | 6" |
| CNL5600 | 1-1/2" | 6" | CNL6800 | 2" | 8" |
| CNL5800 | 1-1/2" | 8" | CNL61000 | 2" | 10" |
| CNL51000 | 1-1/2" | 10" | CNL62000 | 2" | 12" |
| CNL51200 | 1-1/2" | 12" |
| Cat. # | Size | Length Inches | Cat. # | Size | Length Inches |
| CNL7000 | 2-1/2" | close | CNL8000 | 3" | close |
| CNL7300 | 2-1/2" | 3" | CNL8300 | 3" | 3" |
| CNL7350 | 2-1/2" | 3-1/2" | CNL8350 | 3" | 3-1/2" |
| CNL7400 | 2-1/2" | 4" | CNL8400 | 3" | 4" |
| CNL7500 | 2-1/2" | 5" | CNL8500 | 3" | 5" |
| CNL7600 | 2-1/2" | 6" | CNL8600 | 3" | 6" |
| CNL7800 | 2-1/2" | 8" | CNL8800 | 3" | 8" |
| CNL71000 | 2-1/2" | 10" | CNL81000 | 3" | 10" |
| CNL71200 | 2-1/2" | 12" | CNL81200 | 3" | 12" |
| Cat. # | Size | Length Inches | Cat. # | Size | Length Inches |
| CNL9000 | 3-1/2" | close | CNL9000 | 4" | close |
| CNL9400 | 3-1/2" | 4" | CNL9400 | 4" | 4" |
| CNL9500 | 3-1/2" | 5" | CNL9500 | 4" | 5" |
| CNL9600 | 3-1/2" | 6" | CNL9600 | 4" | 6" |
| CNL9800 | 3-1/2" | 8" | CNL9800 | 4" | 8" |
| CNL91000 | 3-1/2" | 10" | CNL91000 | 4" | 10" |
| CNL91200 | 3-1/2" | 12" | CNL91200 | 4" | 12" |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the nipple body is made of high quality steel, every parts of the nipple are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for IMC/Rigid fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 4", ELECMAN provides plastic packing inside the outer box.
