| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | TRC |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Three Pieces Type | Size: | 1/2" - 6" |
| Connection: | Threaded Connection | Color: | Sliver |
| High Light: | IMC Conduit 1 inch rigid coupling,Threaded Conduit 1 inch rigid coupling,1Inch three piece coupling |
||

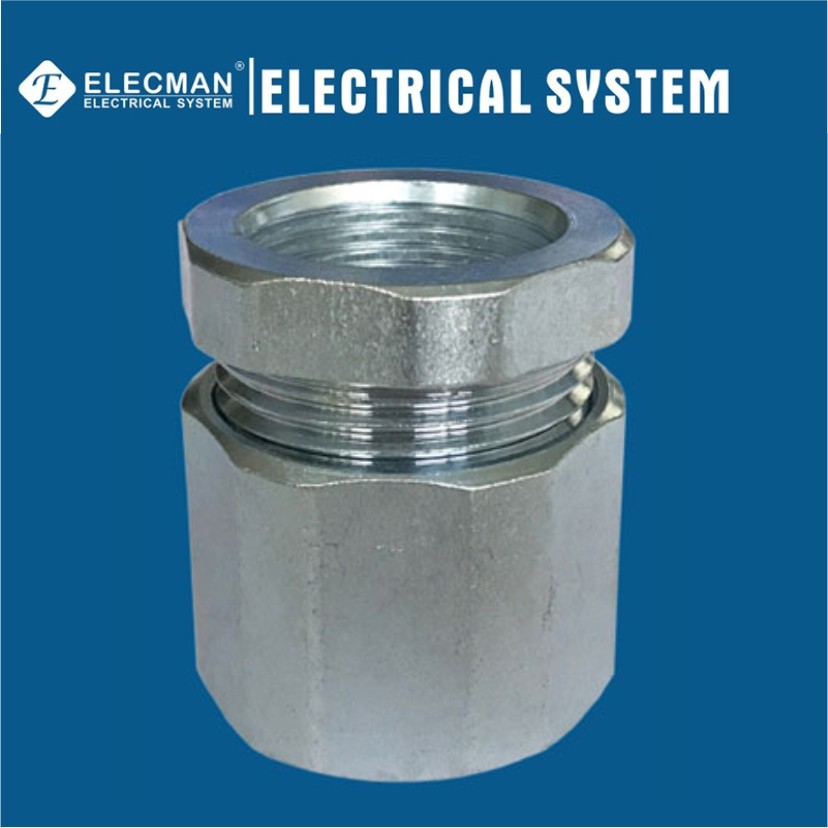

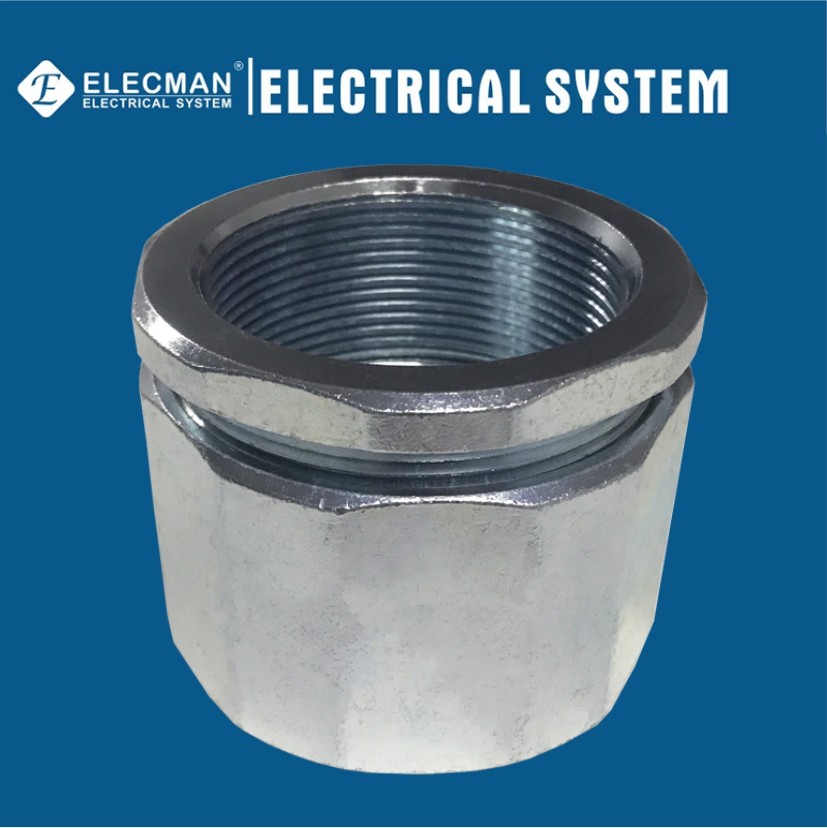

ELECMAN ® Steel IMC/Rigid Conduit Three Pieces Coupling Threaded Connection
Applications
ELECMAN® Steel IMC/Rigid conduit three pieces coupling threaded connection are used to couple the two ends of IMC/Rigid when the conduit can not be turned.
Features
Certifications and Compliances
ELECMAN® Steel IMC/Rigid conduit three pieces coupling threaded connection shall be produced to the following specification:
Specification Data
ELECMAN provides full size steel IMC/Rigid conduit three pieces coupling threaded connection from 1/2" to 6".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | INNER PACK | MASTER PACK |
| TPC050 | 1/2" | 1.313 | 1.375 | 1.375 | 10 | 100 |
| TPC075 | 3/4" | 1.565 | 1.563 | 1.563 | 5 | 50 |
| TPC100 | 1" | 1.625 | 1.875 | 1.875 | 5 | 50 |
| TPC125 | 1-1/4" | 2.125 | 2.375 | 2.375 | 5 | 25 |
| TPC150 | 1-1/2" | 2.375 | 2.813 | 2.813 | 5 | 25 |
| TPC200 | 2" | 2.625 | 3.313 | 3.313 | 2 | 10 |
| TPC250 | 2-1/2" | 3.125 | 4.063 | 4.063 | 2 | 10 |
| TPC300 | 3" | 3.188 | 4.688 | 4.688 | - | 5 |
| TPC350 | 3-1/2" | 3.563 | 5.063 | 5.063 | - | 1 |
| TPC400 | 4" | 4.000 | 5.750 | 5.750 | - | 1 |
| TPC500 | 5" | 4.000 | 7.250 | 8.250 | - | 1 |
| TPC600 | 6" | 3.875 | 8.313 | 8.313 | - | 1 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality steel, every parts of the coupling are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for IMC/Rigid fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 6", ELECMAN provides plastic packing inside the outer box.
