Zinc 1" EMT Box Connector EMT Conduit Compression Fittings 90 Degree Angle

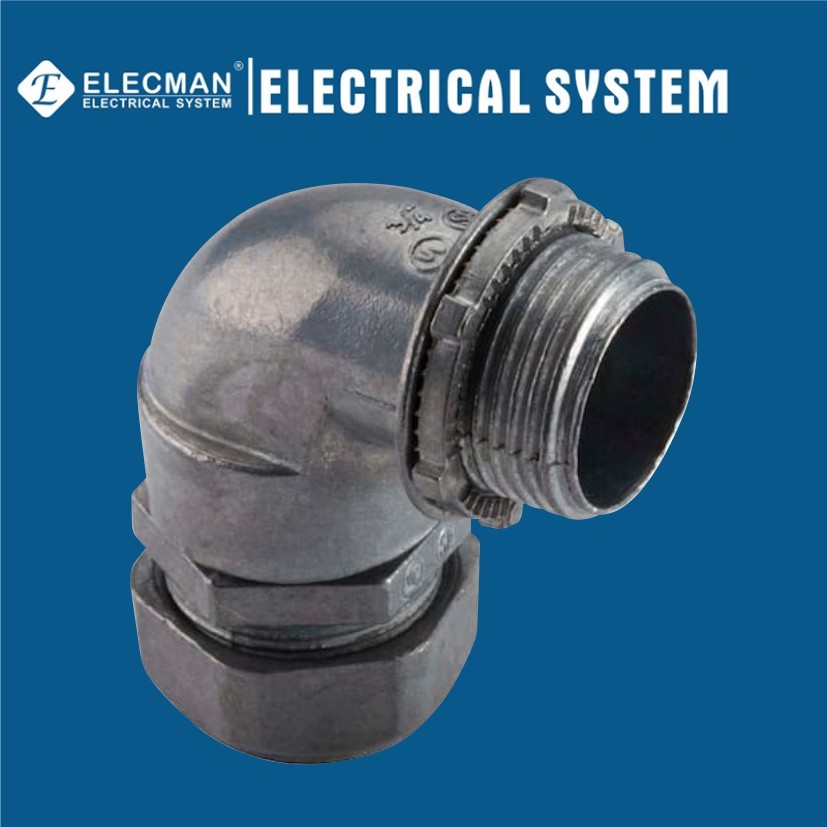

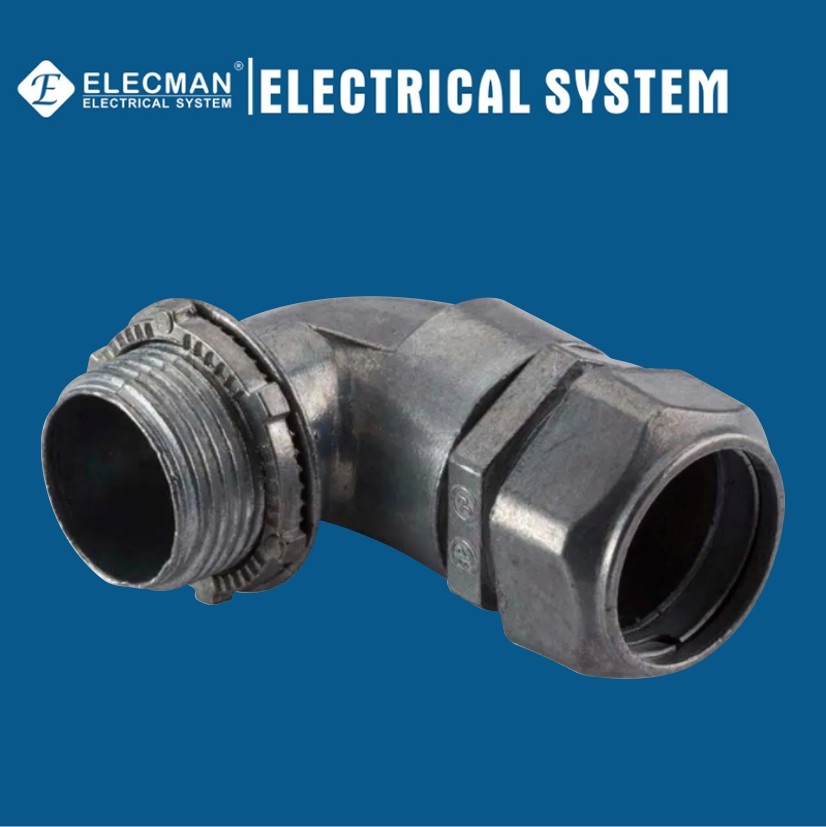

ELECMAN ® Zinc 90 Degree Angle EMT Conduit(Compression) To Box Connector

Applications

ELECMAN® Zinc 90 degree angle EMT conduit(compression) to box connectors are used connect and bond EMT conduit to steel outlet boxes, load centers and other metal enclosures where a tight 90° radius is needed. It is made with die-cast zinc alloy for strength and is ideal for cramped locations and tight corners where large-radius conduit elbows will not fit.

Features

• Short radius turn for tight corners or cramped spaces.
• Connector, elbow, nut and locknut made of a high-strength, corrosion-resistant zinc alloy.
• Usable indoors and in concrete-tight applications.
• Reversible locknut designed to cut through protective coatings to assure ground continuity.
• Steel-plated compression ring positively bonds conduit to the fitting.

Certifications and Compliances

ELECMAN® Zinc 90 degree angle EMT conduit(compression) to box connectors shall be produced to the following specification:

• UL Listed
• File No.: E513114

Specification Data

ELECMAN provides full size Zinc 90 degree angle EMT conduit(compression) to box connectors from 1/2" to 1".

Quality Control

ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality zinc, every part of the connector are produced according to the high standard.

Packing Information

Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box.
