| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | NES |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Zinc | Surface Finish: | Natural |
|---|---|---|---|
| Type: | Set Screw Type | Size: | 1/2" - 1" |
| Connection: | EMT Conduit To Box | Angle: | 90 Degree |
| High Light: | EMT Conduit Fittings Angle,Set Screw EMT Conduit Fittings,1 emt box connector |
||

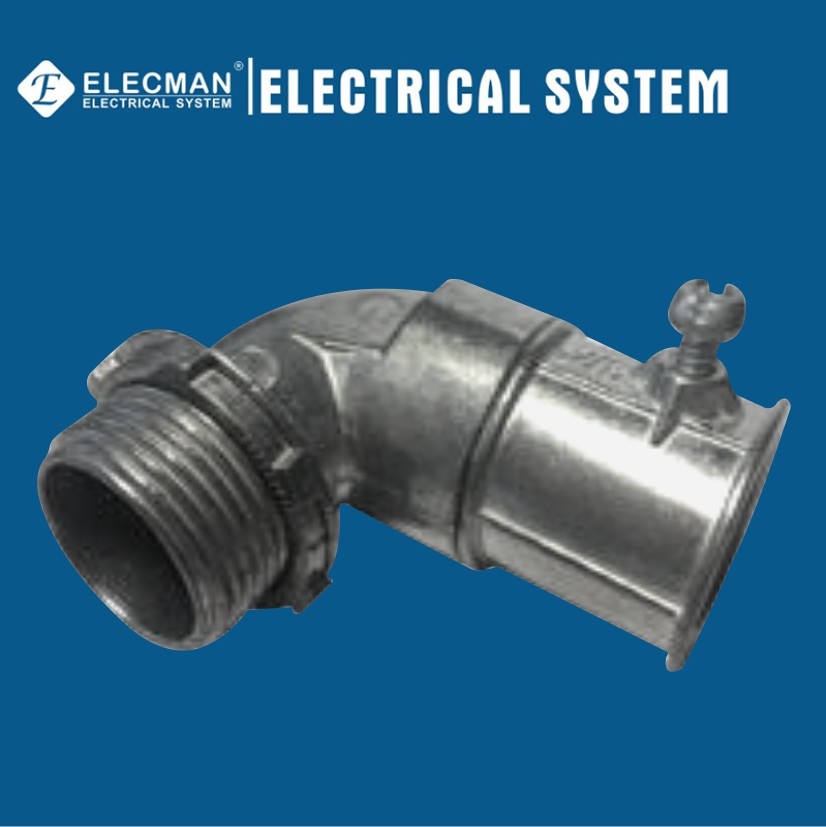

ELECMAN ® Zinc 90 Degree Angle EMT Conduit(Set Screw) to Box Connector
Applications
ELECMAN® Zinc 90 degree angle EMT conduit(set screw) to box connectors are used to join EMT conduit to box or enclosure where a close radius is required in dry locations.
Features
Certifications and Compliances
ELECMAN® Zinc 90 degree angle EMT conduit(set screw) to box connectors shall be produced to the following specification:
Specification Data
ELECMAN provides full size Zinc 90 degree angle EMT conduit(set screw) to box connectors from 1/2" to 1".
| CAT # | Trade Size | DIM A | DIM B | DIM C |
| NES050 | 1/2" | 4.30cm | 2.40cm | 1.36cm |
| NES075 | 3/4" | 5.00cm | 2.96cm | 1.36cm |
| NES100 | 1" | 5.00cm | 3.60cm | 1.36cm |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality zinc, the screws are made of steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box.
