| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | SCON |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Insulated | Size: | 1/2" - 4" |
| Connection: | Set Screw | Color: | Sliver |
| High Light: | Insulated emt screw connector,1 inch emt screw connector,Insulated emt set screw connector |
||

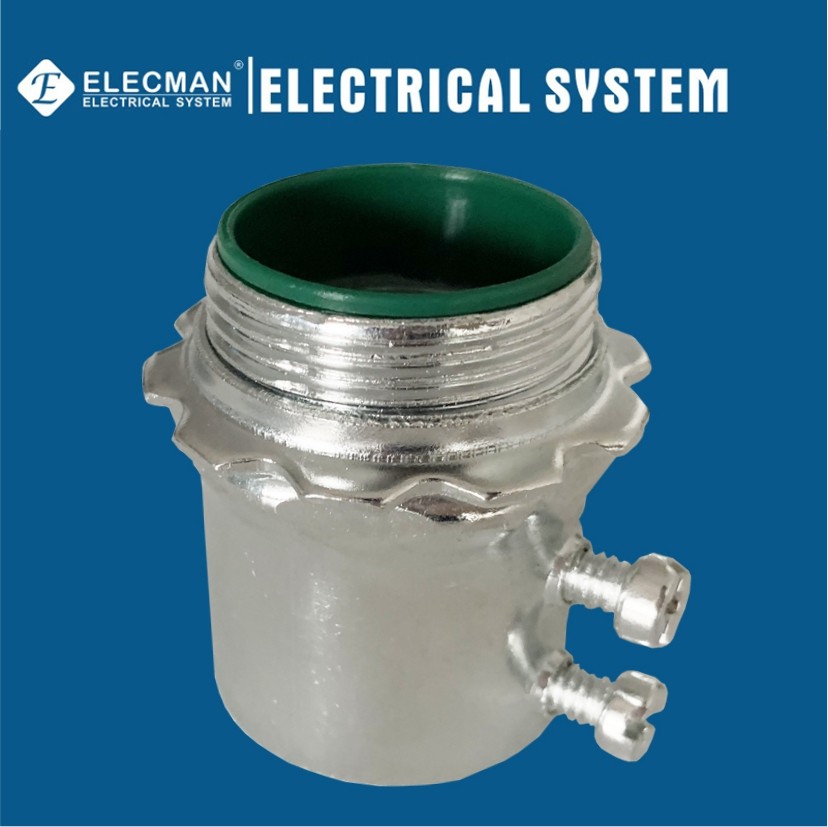

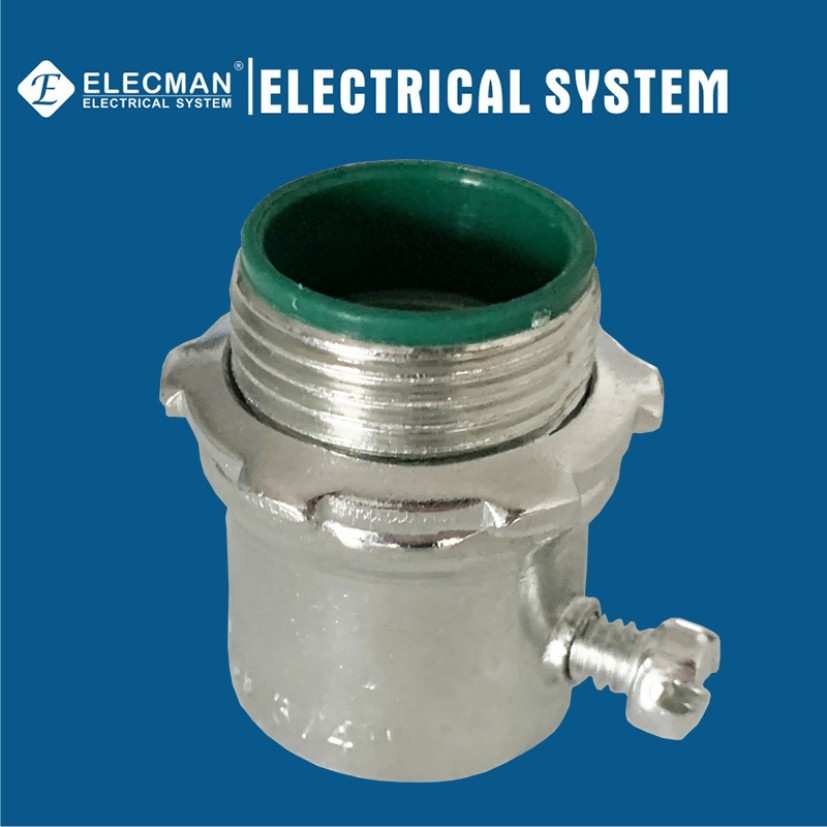

ELECMAN ® Insulated Steel EMT Conduit Connector Set Screw EMT Conduit To Box Type
Applications
ELECMAN® Insulated steel EMT conduit connector set screw EMT conduit to box type is used to connect and bond EMT conduit to a metal enclosure. It features galvanized steel construction. This is for indoor use only.
Features
Certifications and Compliances
ELECMAN® Insulated steel EMT conduit connector set screw EMT conduit to box type to box type shall be produced to the following specifications:
Specification Data
ELECMAN provides full size insulated steel EMT conduit connector set screw EMT conduit to box type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| SCON050 | 1/2" | 0.880 | 1.507 | 50 | 500 | 19.55 |
| SCON075 | 3/4" | 1.130 | 1.566 | 25 | 250 | 13.05 |
| SCON100 | 1" | 1.380 | 1.815 | 50 | 200 | 17.13 |
| SCON125 | 1-1/4" | 1.380 | 2.389 | 25 | 100 | 15.99 |
| SCON150 | 1-1/2" | 2.750 | 2.329 | 10 | 100 | 7.31 |
| SCON200 | 2" | 2.000 | 2.459 | 5 | 50 | 4.96 |
| SCON250 | 2-1/2" | 3.440 | 3.300 | - | 12 | 6.55 |
| SCON300 | 3" | 3.130 | 3.920 | - | 12 | 8.35 |
| SCON350 | 3-1/2" | 4.750 | 4.420 | - | 6 | 5.05 |
| SCON400 | 4" | 4.250 | 4.990 | - | 6 | 5.83 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
