| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | CCP |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Zinc | Surface Finish: | Natural |
|---|---|---|---|
| Type: | Compression Type | Size: | 1/2" - 4" |
| Connection: | EMT Conduit To EMT Conduit | Color: | Sliver |
| High Light: | CCP emt compression coupling,4 inch emt compression coupling,CCP 4 inch emt coupling |
||

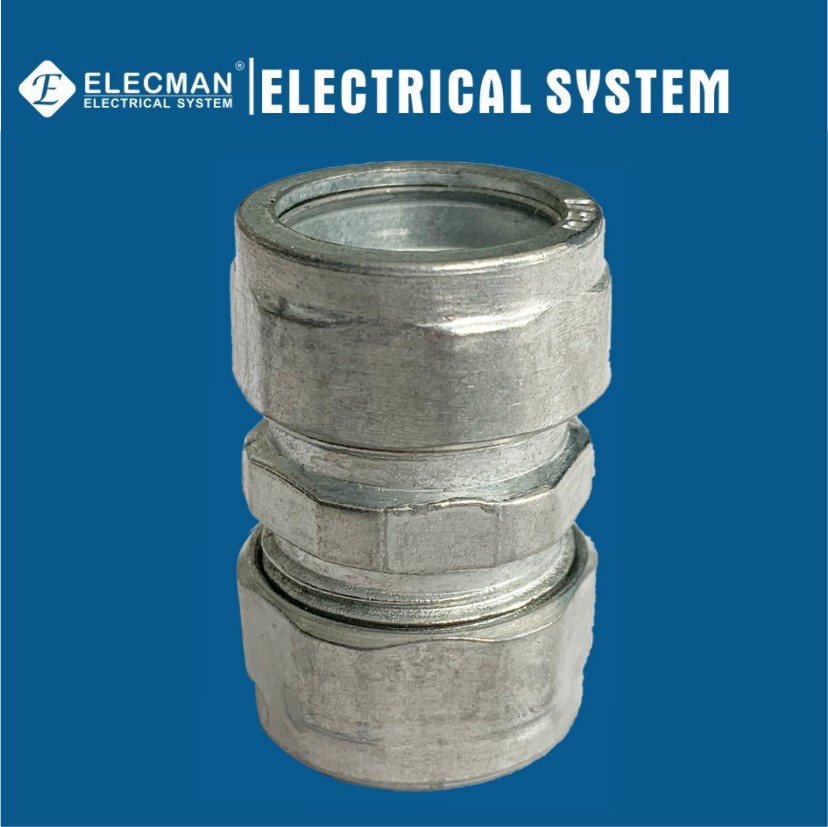

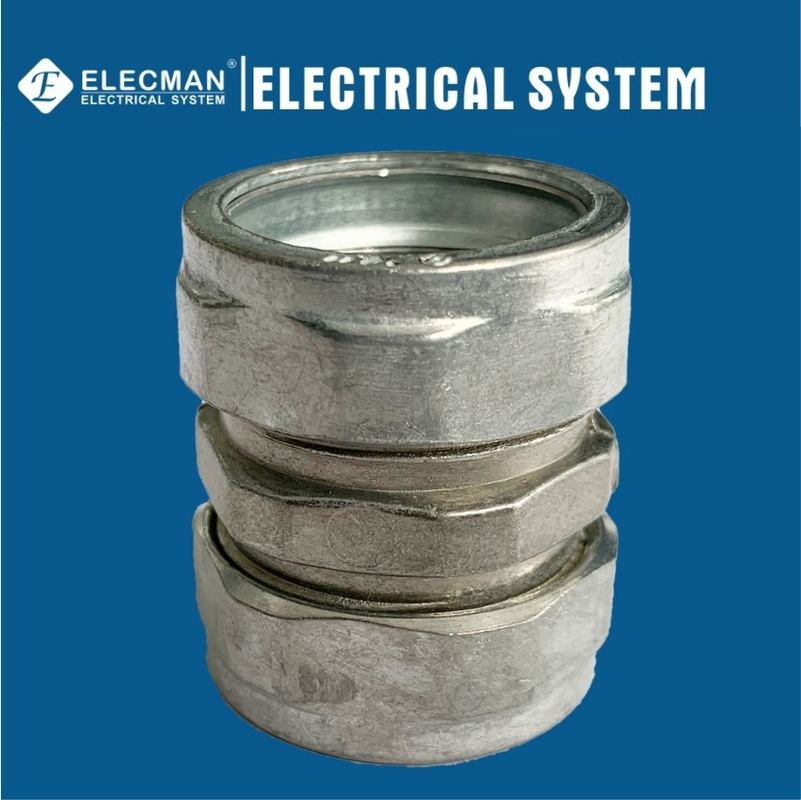

ELECMAN ® Zinc EMT Conduit Coupling Compression EMT Conduit To EMT Conduit Type
Applications
ELECMAN® Zinc EMT conduit coupling compression EMT conduit to EMT conduit type is used in dry locations to economically couple two ends of EMT conduits.
Features
Certifications and Compliances
ELECMAN® Zinc EMT conduit couplings compression EMT conduit to EMT conduit type shall be produced to the following specifications:
Specification Data
ELECMAN provides full size zinc EMT coupling compression type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | INNER PACK | MASTER PACK | WEIGHT/C |
| CCP050 | 1/2" | 1.500 | 1.100 | 100 | 500 | 14.50 |
| CCP075 | 3/4" | 1.610 | 1.300 | 100 | 500 | 22.50 |
| CCP100 | 1" | 1.850 | 1.660 | 50 | 250 | 15.50 |
| CCP125 | 1-1/4" | 2.050 | 2.090 | 25 | 125 | 14.90 |
| CCP150 | 1-1/2" | 2.470 | 2.300 | 10 | 100 | 15.00 |
| CCP200 | 2" | 2.560 | 2.850 | 10 | 50 | 11.40 |
| CCP250 | 2-1/2" | 3.280 | 2.650 | - | 25 | - |
| CCP300 | 3" | 3.420 | 4.490 | - | 20 | - |
| CCP400 | 4" | 3.530 | 5.620 | - | 10 | - |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality zinc, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
