| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | COP |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Zinc | Surface Finish: | Natural |
|---|---|---|---|
| Type: | Set Screw Type | Size: | 1/2" To 4" |
| Connection: | EMT To EMT | Section Shape: | Round |
| High Light: | COP emt set screw coupling,Zinc emt set screw coupling,Zinc emt screw connector |
||

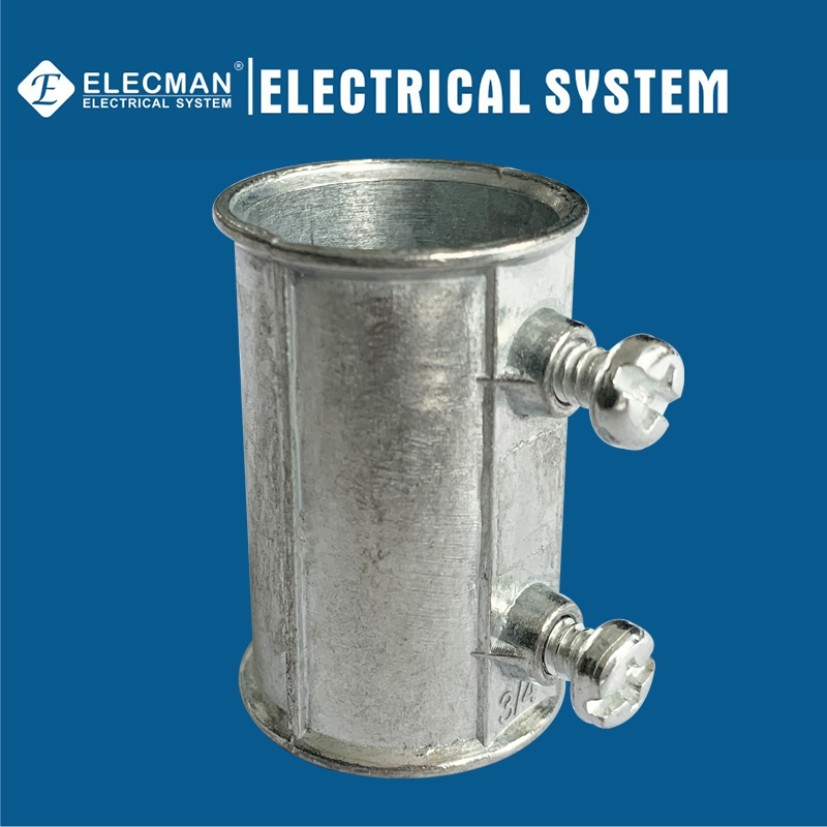

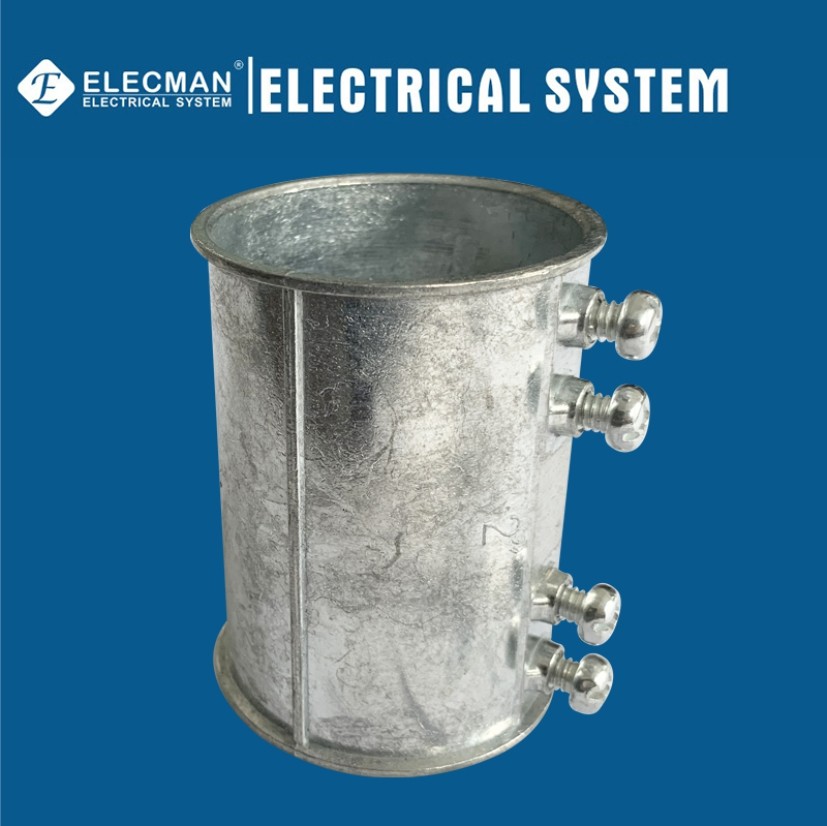

ELECMAN ® Zinc EMT Conduit Coupling Set Screw EMT Conduit To EMT Conduit Type
Applications
ELECMAN® Zinc EMT conduit coupling set screw EMT conduit to EMT conduit type is used to economically connect two ends of EMT conduits in dry locations. The set screw coupling can be used in concrete tight applications when taped.
Features
Certifications and Compliances
ELECMAN® Zinc EMT conduit couplings set screw EMT conduit to EMT conduit type shall be produced to the following specifications:
Specification Data
ELECMAN provides full size zinc EMT conduit couplings set screw EMT conduit to EMT conduit type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | INNER PACK | MASTER PACK | WEIGHT/C |
| COP050 | 1/2" | 1.520 | 0.920 | 100 | 500 | 10.00 |
| COP075 | 3/4" | 1.920 | 1.150 | 100 | 500 | 15.90 |
| COP100 | 1" | 2.000 | 1.430 | 50 | 250 | 10.50 |
| COP125 | 1-1/4" | 2.510 | 1.820 | 25 | 125 | 10.10 |
| COP150 | 1-1/2" | 2.850 | 2.050 | 20 | 100 | 10.00 |
| COP200 | 2" | 3.400 | 2.500 | 10 | 50 | 8.80 |
| COP250 | 2-1/2" | 4.200 | 3.300 | - | 25 | 7.00 |
| COP300 | 3" | 4.650 | 4.010 | - | 20 | 6.40 |
| COP400 | 4" | 5.470 | 5.010 | - | 10 | 5.30 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality zinc, the screws are made of steel, every part of the coupling are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
