| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | CON |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Zinc | Surface Finish: | Natural |
|---|---|---|---|
| Type: | Set Screw Type | Size: | 1/2" - 4" |
| Connection: | EMT Conduit To Box | Color: | Sliver |
| High Light: | Zinc EMT Conduit Fittings,EMT Conduit Fittings Connectors,Zinc emt conduit connectors |
||

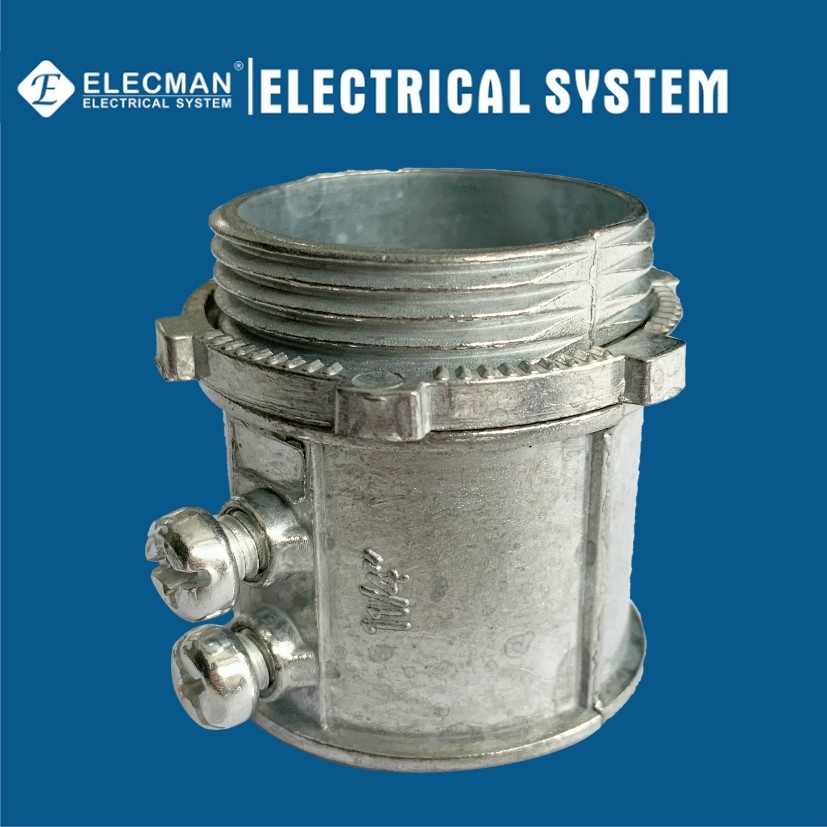

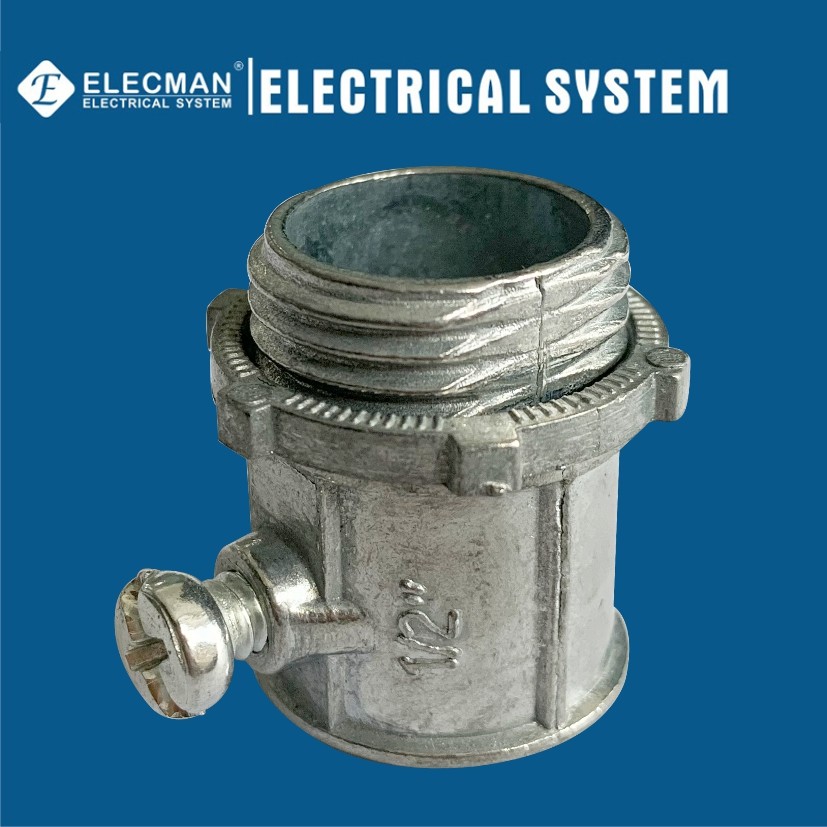

ELECMAN ® Zinc EMT Conduit Connector Set Screw EMT Conduit to Box Type
Application
ELECMAN® Zinc EMT conduit connectors set screw EMT conduit to box type provide concrete-tight connections when taped. For use in dry locations to economically bond EMT conduit to a box or enclosure.
Features
Certifications and Compliances
ELECMAN® Zinc EMT conduit connectors set screw EMT conduit to box type shall be produced to the following specifications:
UL Listed
File No.: E513114
Specification Data
ELECMAN provides full size zinc EMT conduit connectors set screw EMT conduit to box type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | INNER PACK | MASTER PACK | WEIGHT/C |
| CON050 | 1/2" | 0.910 | 1.150 | 100 | 500 | 10.00 |
| CON075 | 3/4" | 1.190 | 1.270 | 100 | 500 | 15.50 |
| CON100 | 1" | 1.450 | 1.460 | 50 | 250 | 10.50 |
| CON125 | 1-1/4" | 1.760 | 1.850 | 25 | 125 | 10.00 |
| CON150 | 1-1/2" | 2.030 | 2.090 | 20 | 100 | 10.70 |
| CON200 | 2" | 2.550 | 2.350 | 10 | 50 | 7.80 |
| CON212 | 2-1/2" | 3.200 | 2.920 | - | 25 | 7.20 |
| CON300 | 3" | 3.910 | 2.950 | - | 20 | 7.30 |
| CON400 | 4" | 4.950 | 3.600 | - | 10 | 6.50 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality zinc, the screws are made of steel, every part of the connectors are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for EMT fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/2" to 4", ELECMAN provides plastic packing inside the outer box.
